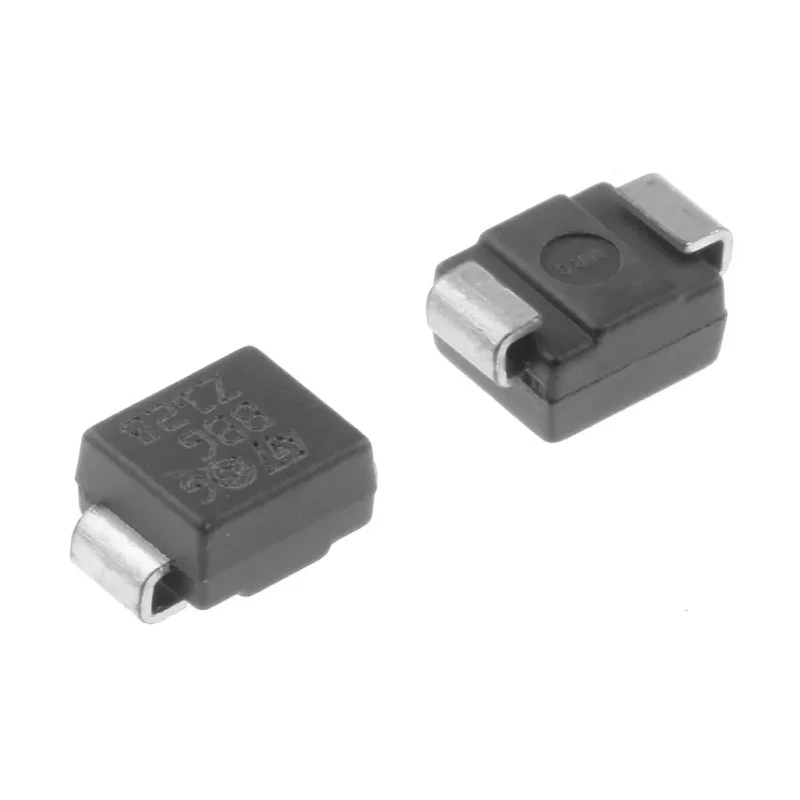

STMicroelectronics 1-Element Bi-Directional TVS Diode 600W, Surface Mount DO-214 Package SMBJ15CA-TR
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 2.45mm |
| Length | 4.6mm |
| Model | SMBJ15CA-TR |
| Width | 3.95mm |
| Mount Type | Surface |
| Series | SMBJ |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 32.5V |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 16.7V |
| Maximum Reverse Stand-off Voltage Vwm | 15V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 123A |
| Maximum Reverse Leakage Current | 200nA |
Key Features
- This TVS diode has a minimum breakdown voltage of 16.7V and a maximum reverse stand-off voltage of 15V.
- It features a bi-directional diode configuration suitable for protecting circuits against voltage spikes.
- Designed with a 2-pin DO-214 surface mount package for compact PCB integration.
- Operates reliably in temperature ranges from -55°C to 150°C for diverse industrial applications.
- Clamping voltage is rated at 32.5V to safely limit voltage surges.
- Supports a maximum peak pulse current of 123A allowing high transient suppression.
- Maintains low maximum reverse leakage current of 200nA ensuring minimal standby power loss.
- This product is ideal for industrial electronic circuit protection to enhance equipment durability.
Product Description
STMicroelectronics SMBJ15CA-TR is a single-element, bi-directional TVS diode designed for surface-mounted applications in industrial and commercial electronics. Featuring a robust 600 W peak pulse power dissipation rating, this diode efficiently safeguards sensitive circuitry from transient voltage spikes.
Its DO-214 package type with 2 pins enables straightforward assembly on printed circuit boards, suitable for applications where compact and reliable voltage suppression is required.
The device operates within a temperature range of -55°C to 150°C, ensuring stable performance under various environmental conditions experienced in manufacturing, automotive electronics, and power supply systems.
With a minimum breakdown voltage (Vbr) of 16.7 V and a maximum reverse stand-off voltage (Vwm) of 15 V, it clamps surges effectively, protecting downstream components. The maximum peak pulse current of 123 A combined with a clamping voltage (Vc) of 32.5 V provides superior transient voltage suppression capability.
The maximum reverse leakage current is limited to 200 nA, contributing to energy efficiency and reducing unwanted current bleed. Physical dimensions of 4.6 mm length, 3.95 mm width, and 2.45 mm height allow integration in dense electronic assemblies.
This TVS diode is widely used in industrial electronics, power converters, telecommunications equipment, and automotive protection circuits, safeguarding against transient overvoltages and electrostatic discharge events.
This diode provides high transient power protection for sensitive electronics. Compact surface mount DO-214 package fits space-constrained applications. Wide operating temperature range ensures reliable industrial performance.
Low leakage current saves energy and improves circuit reliability. Robust clamp voltage and high peak pulse current ratings enable strong surge suppression. Suitable for automotive, industrial, and power electronics protection.
Choose STMicroelectronics SMBJ15CA-TR for dependable transient voltage suppression to extend equipment life and maintain operational integrity. Browse similar products in the EnvMart Semiconductor and TVS Diode category for your industrial electronics needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The minimum breakdown voltage (Vbr) of this model is 16.7V.
The maximum reverse stand-off voltage (Vwm) is 15V.
The clamping voltage (Vc) is rated at 32.5V, which helps limit voltage surges effectively.
It supports a maximum peak pulse current of 123A, allowing for high transient suppression.
The physical dimensions are 4.6 mm in length, 3.95 mm in width, and 2.45 mm in height.
It operates reliably within a temperature range of -55°C to 150°C.
This diode is designed in a DO-214 surface mount package, suitable for compact PCB integration.
The maximum reverse leakage current is limited to 200nA, contributing to energy efficiency.
This model has a pin count of 2, allowing for straightforward assembly on PCBs.
It has a peak pulse power dissipation rating of 600W, providing robust protection against voltage spikes.
It is widely used in industrial electronics, power converters, telecommunications equipment, and automotive protection circuits.
This model features a single-element, bi-directional diode configuration, suitable for protecting circuits from voltage spikes.
