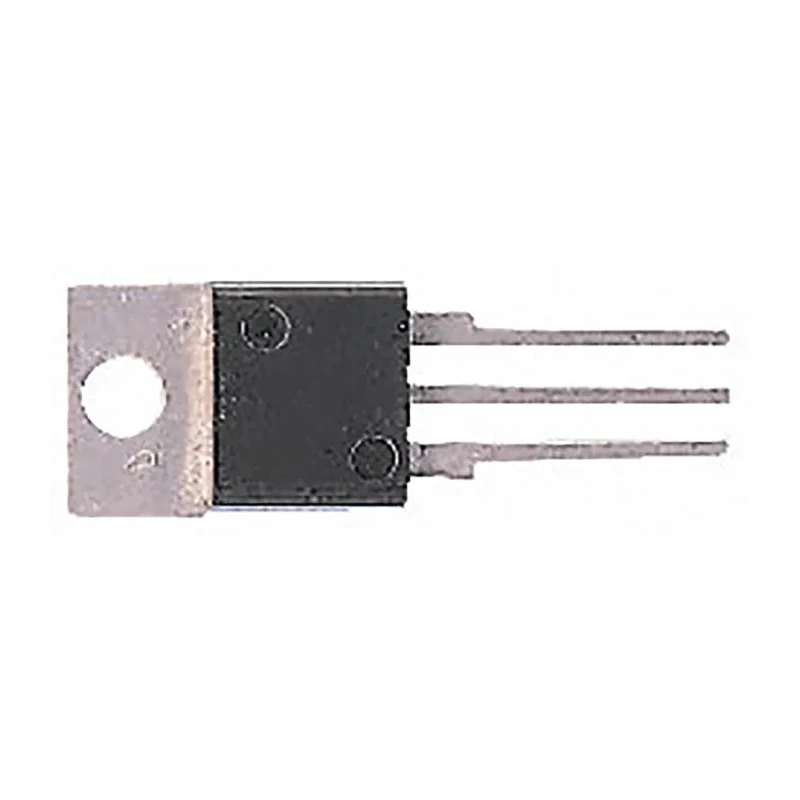

STMicroelectronics Through Hole 3-Pin TRIAC 600 V Gate Trigger 1.3 V BTB06-600BWRG

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics Through Hole 3-Pin TRIAC 600 V Gate Trigger 1.3 V BTB06-600BWRG

Name: STMicroelectronics Through Hole 3-Pin TRIAC 600 V Gate Trigger 1.3 V BTB06-600BWRG
Brand: STMicroelectronics
SKU: 219223
Price: 0.81 USD
Availability: InStock



Category TRIAC Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	9.15mm
Length	10.4mm
Model	BTB06-600BWRG
Mount Type	Through Hole
Configuration	Single
Maximum Operating Temperature	125°C
Package Type	TO-220
Minimum Operating Temperature	-40°C
Pin Count	3
Rated Average On-State Current Irms	6A
Repetitive Peak Reverse Voltage VDRM	600V
Surge Current Rating	63A
Maximum Gate Trigger Current Igt	50mA
Maximum Holding Current Ih	50mA
Maximum Gate Trigger Voltage Vgt	1.3V
Peak On-State Voltage	1.55V
Repetitive Peak Off-State Current	5μA
Peak Gate Power Dissipation	1W

Key Features

Rated average on-state current of 6 amperes.
Package type is TO-220 suitable for power applications.
Maximum gate trigger current is 50 milliamperes.
Supports repetitive peak reverse voltage up to 600 volts.
Surge current rating of 63 amperes for transient loads.
Operates in temperature range from -40°C to 125°C.
Compact dimensions with height 9.15 mm and length 10.4 mm.
Single configuration with 3 pins for easy PCB integration.

Product Description

STMicroelectronics BTB06-600BWRG is a through hole mount, 3-pin TRIAC semiconductor device rated for operation up to 600 volts with a gate trigger voltage of 1.3 volts. This TRIAC is constructed in a TO-220 package, making it suitable for power control applications in industrial and commercial electronic circuits.

The device is designed to handle a rated average on-state current of 6 amperes and surge currents up to 63 amperes, supporting temporary overloads. Its gate trigger current rating is 50 milliamperes, offering reliable switching characteristics. The TRIAC exhibits a repetitive peak reverse voltage of 600 volts, making it capable of handling AC voltages commonly used in domestic and industrial environments.

Operating temperature ranges from -40°C to 125°C ensure suitability for varied environmental conditions. The device features a compact form factor with dimensions of 9.15 mm in height and 10.4 mm in length, allowing integration into space-constrained designs.

This TRIAC supports single configuration control with 3 pins, designed for through hole PCB mounting. Peak on-state voltage is optimized at 1.55 volts to minimize power loss during conduction. It is ideal for applications in lighting control, motor speed regulation, and other AC power switching scenarios in industrial and consumer electronics.

Rated average on-state current of 6 amperes. TO-220 package for effective heat dissipation. Maximum gate trigger current of 50 milliamperes. Repetitive peak reverse voltage rated at 600 volts. Surge current capability of 63 amperes.

Operating temperature from -40°C to 125°C. Dimensions: height 9.15 mm, length 10.4 mm. Single configuration with 3 pins. Low peak on-state voltage of 1.55 volts. Through hole mount type for ease of assembly.

This component is widely used in industrial automation, HVAC systems, lighting controls, manufacturing equipment, and other commercial electronic devices requiring efficient AC load management. Its robust ratings and reliable operation make it a dependable choice for system designers.
