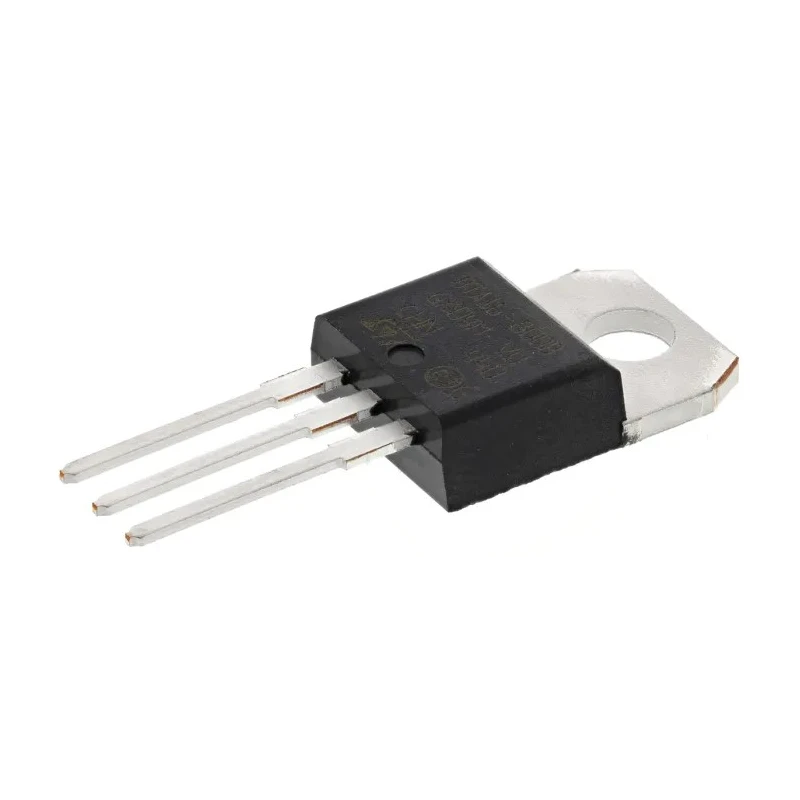

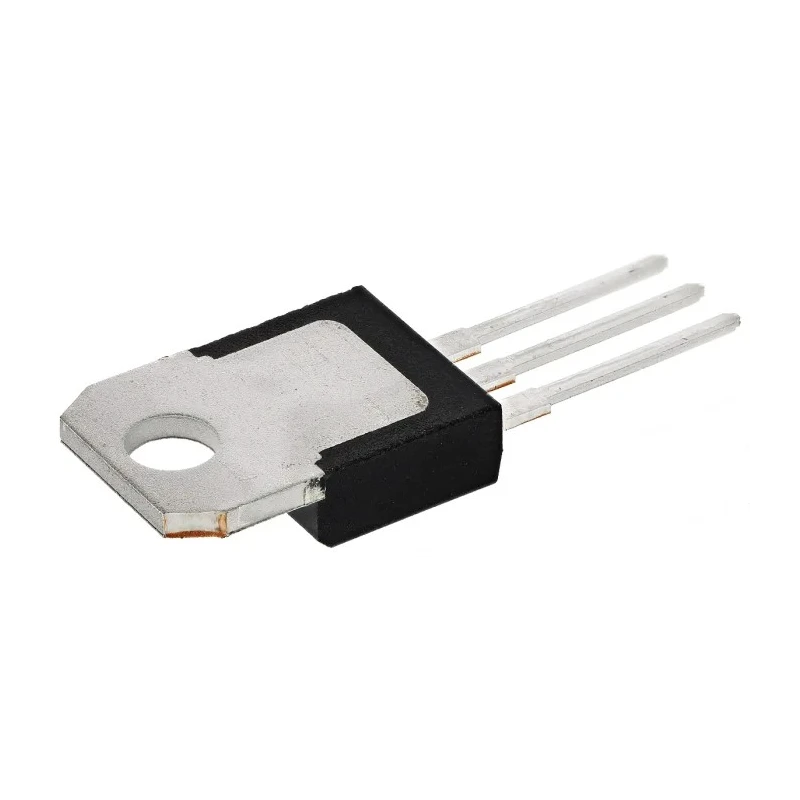

STMicroelectronics Through Hole 3-Pin TRIAC 16A, 800V, Gate Trigger 1.3V BTA16-800BRG

STMicroelectronics BTA16-800BRG is a 3-pin through hole TRIAC designed to handle an average on-state current of 16 amperes and a repetitive peak reverse voltage of 800 volts, packaged in a compact TO-220 form factor. This device features a low gate trigger voltage of 1.3 volts facilitating easy triggering in AC power control circuits.

With a maximum gate trigger current of 100 milliamps and a holding current of 50 milliamps, it ensures reliable switching performance. Operating temperatures range from -40°C to 125°C making it suitable for a wide range of industrial environments.

The TRIAC's robust surge current rating of 168 amperes allows it to withstand transient overloads. Its low repetitive peak off-state current of 5 microamps minimizes leakage during off cycles, contributing to energy efficiency.

Dimensionally, the package stands 9.3 mm tall with a length of 10.4 mm, enabling integration into compact PCB layouts. The peak on-state voltage drop is limited to 1.55 volts, which reduces power dissipation.

This TRIAC is ideal for use in AC motor control, lighting dimmers, and solid state relays in industrial, manufacturing, and consumer electronic applications requiring efficient AC power switching.

This TRIAC features a gate trigger voltage of 1.3 volts. It has a maximum gate trigger current of 100 milliamps. The device operates between -40°C and 125°C. The surge current rating is 168 amperes. The package dimensions include a height of 9.3 mm and length of 10.4 mm.

It supports a peak on-state voltage of 1.55 volts and peak gate power dissipation of 1 watt. The repetitive peak off-state current is 5 microamps ensuring low leakage. Designed for industrial and electronic applications requiring AC power control.
