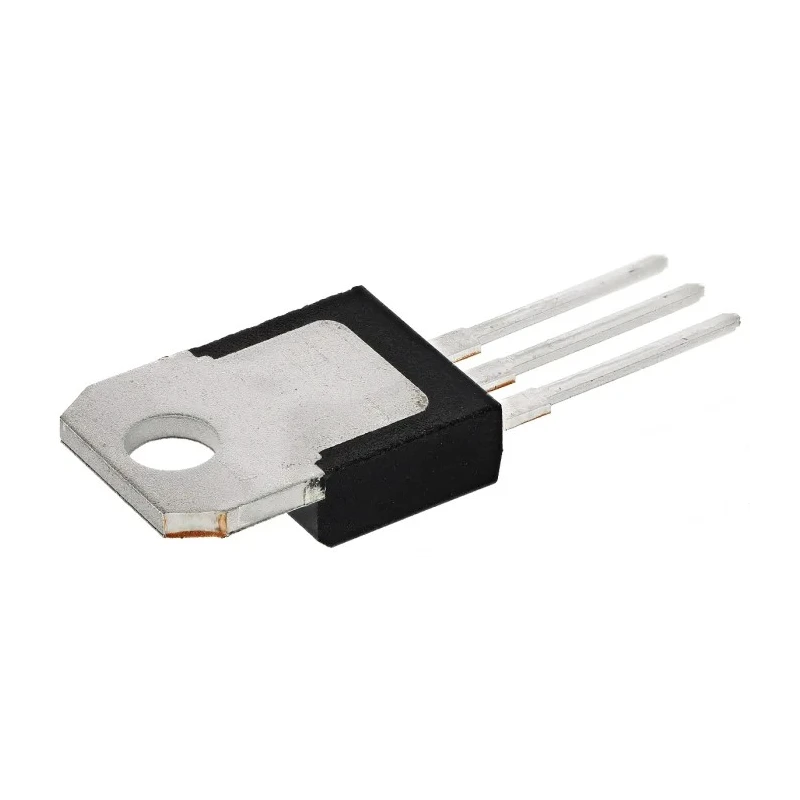

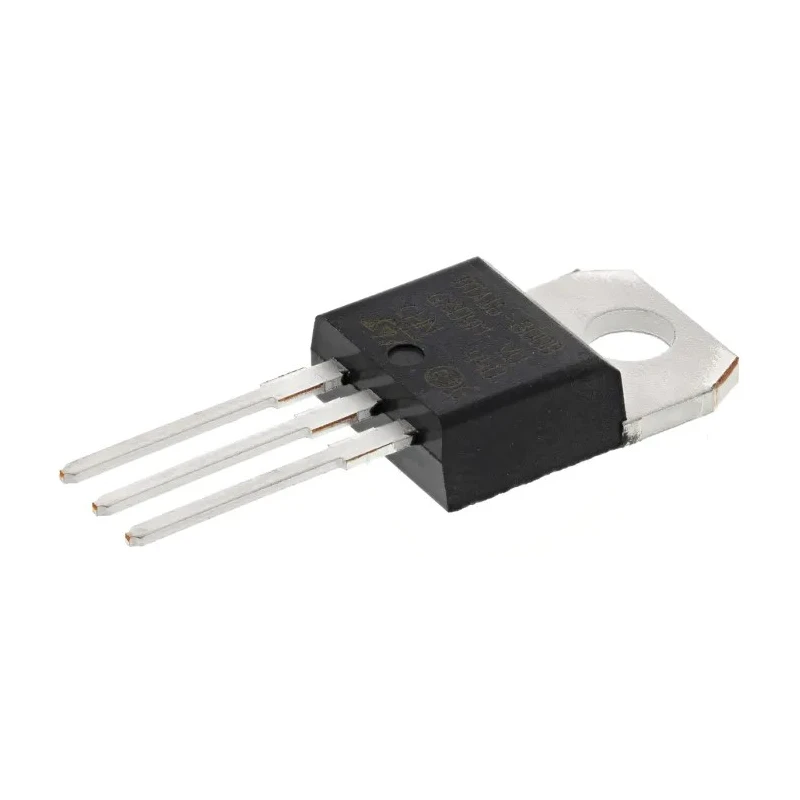

STMicroelectronics Through Hole, 3-Pin TRIAC 800 V, Rated Current 16A, Gate Trigger 1.3 V BTA16-800BRG

STMicroelectronics BTA16-800BRG is a Through Hole mounted, 3-Pin TRIAC device rated for a maximum repetitive peak reverse voltage of 800 V and capable of handling an average on-state current of 16A. This semiconductor component is ideal for use in AC power control applications including lighting, motor control, and industrial automation systems.

The TRIAC operates with a gate trigger voltage of 1.3 V and a maximum gate trigger current of 100 mA, enabling precise control of switching. Its surge current rating of 168 A assures robustness against transient currents and short overloads common in power circuits.

Designed in a durable TO-220 package, the BTA16-800BRG supports effective heat dissipation and easy through-hole PCB assembly. The component functions reliably across a wide temperature range from -40°C to 125°C, making it suitable for demanding industrial and commercial environments.

The single configuration TRIAC features a peak gate power dissipation of 1 W, contributing to stable operation and longevity. Its physical dimensions are compact with a height of 9.3 mm and length of 10.4 mm, facilitating integration into space-constrained designs.

Additional electrical characteristics include a low repetitive peak off-state current of 5 μA minimizing leakage and a peak on-state voltage drop of 1.55 V enhancing efficiency. This device does not comply with automotive standards and is intended for general industrial, commercial, and laboratory use.

The device features a gate trigger voltage of 1.3 V and a maximum gate trigger current of 100 mA. It has a surge current rating of 168 A, suitable for transient loads. Equipped with a TO-220 package type for easy mounting.

Operates reliably within temperatures ranging from -40°C to 125°C. Configuration is single with a peak gate power dissipation of 1 W. The component has a height of 9.3 mm and length of 10.4 mm, compact for various applications.

Repetitive peak off-state current is low at 5 μA, reducing leakage. Peak on-state voltage drop is 1.55 V, ensuring efficient operation. Does not comply with automotive standards.

This STMicroelectronics TRIAC is suited for integrating into power electronics systems, industrial machinery control, and energy management modules. Browse similar semiconductor components in the TRIAC category on EnvMart for a comprehensive range of power control devices.
