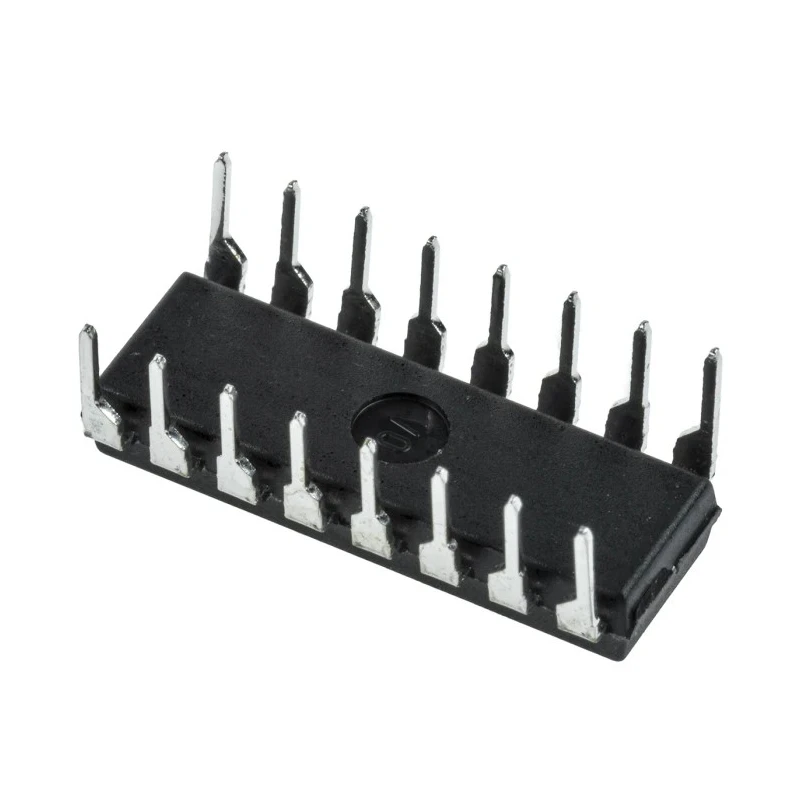

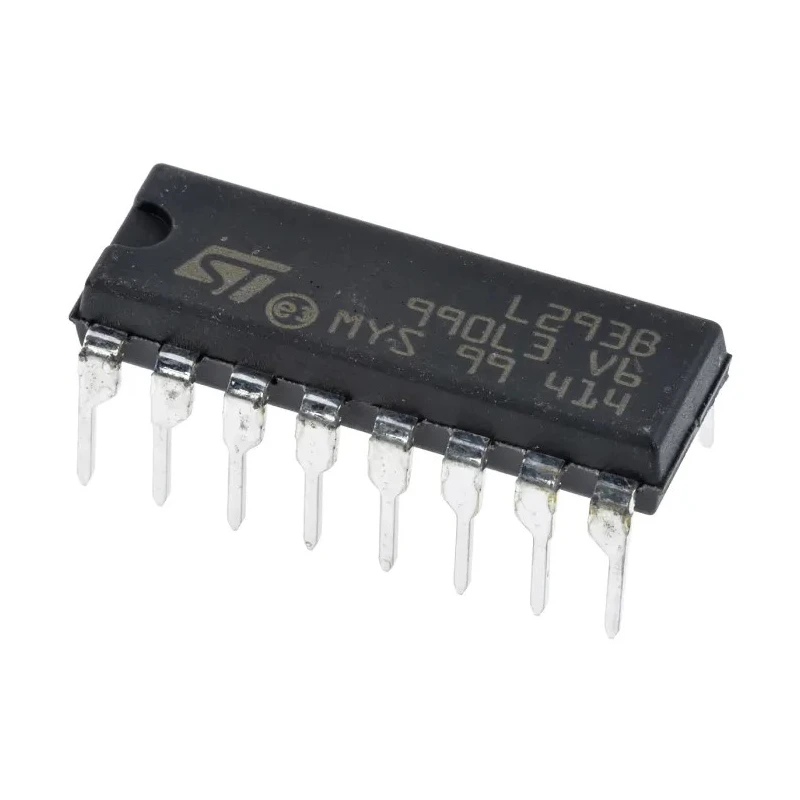

STMicroelectronics Brushed DC Motor Driver IC 36 V 2 A 16-Pin PDIP L293B

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics Brushed DC Motor Driver IC 36 V 2 A 16-Pin PDIP L293B

Name: STMicroelectronics Brushed DC Motor Driver IC 36 V 2 A 16-Pin PDIP L293B
Brand: STMicroelectronics
SKU: 219136
Price: 6.63 USD
Availability: InStock



Category Motor Driver IC Brand STMicroelectronics Condition New

Specifications

Country of Origin	Malaysia
Brand	STMicroelectronics
Height	5.1mm
Length	20mm
Model	L293B
Width	7.1mm
Motor Type	Brushed DC Motor
Mount Type	Through Hole
Series	L293B
Configuration	Quad
Output Current	2A
Maximum Operating Temperature	150°C
Package Type	PDIP
Minimum Operating Temperature	-40°C
Pin Count	16
Maximum Collector Emitter Voltage Vceo	36V
Maximum Supply Voltage	36V
Minimum Supply Voltage	4.5V
Supply Current	100μA
Maximum IGBT Collector Current	1A
Inverter Power Rating	5W

Key Features

Supports brushed DC motor configuration with quad channel setup.
Operates within a supply voltage range of 4.5V to 36V for versatile power input.
Maximum collector emitter voltage rating of 36V ensures high voltage tolerance.
Output current capability up to 2A for robust motor driving performance.
16-pin Through Hole PDIP package enables easy mounting and integration.
Wide operating temperature range from -40°C to 150°C suitable for industrial environments.
Low supply current of 100μA reduces energy consumption in control circuits.
Compact dimensions with 20mm length, 7.1mm width, and 5.1mm height optimize PCB space usage.

Product Description

STMicroelectronics L293B is a high-performance Brushed DC Motor Driver IC designed for industrial and electronic applications requiring robust motor control. Featuring a quad channel configuration, this device supports efficient driving of brushed DC motors with reliable output and protection.

The IC operates at a maximum supply voltage of 36V and can deliver an output current of up to 2A, making it suitable for moderate power motor applications. Its 16-Pin PDIP Through Hole package facilitates easy installation and maintenance on various electronic boards.

With a wide operating temperature range from -40°C to 150°C, the L293B is engineered to function reliably in harsh industrial environments including manufacturing, automation systems, and robotics. The device features a maximum collector-emitter voltage (Vceo) of 36V and a low supply current of just 100μA, enhancing overall power efficiency.

Its compact physical dimensions (20mm length, 7.1mm width, 5.1mm height) allow for space-saving circuit designs without compromising performance. The L293B series is manufactured in Malaysia, ensuring quality and consistency for demanding applications.

Ideal for use in automotive electronics, robotics, industrial motor control, and power management systems, this Motor Driver IC enables precise and efficient control of brushed DC motors with enhanced protection features.

Supports brushed DC motor configuration with quad channel design. Wide supply voltage range from 4.5V to 36V supports varied power sources. Maximum output current rating of 2A enables driving motors with significant load.

16-Pin PDIP Through Hole package provides ease of use in prototype and production boards. Operates reliably between -40°C to 150°C temperature range for diverse environments. Compact size optimizes space usage on printed circuit boards.

Low supply current minimizes power consumption in control circuits. Explore a broad range of electronic components and power management ICs at EnvMart for your industrial, commercial, and laboratory applications.
