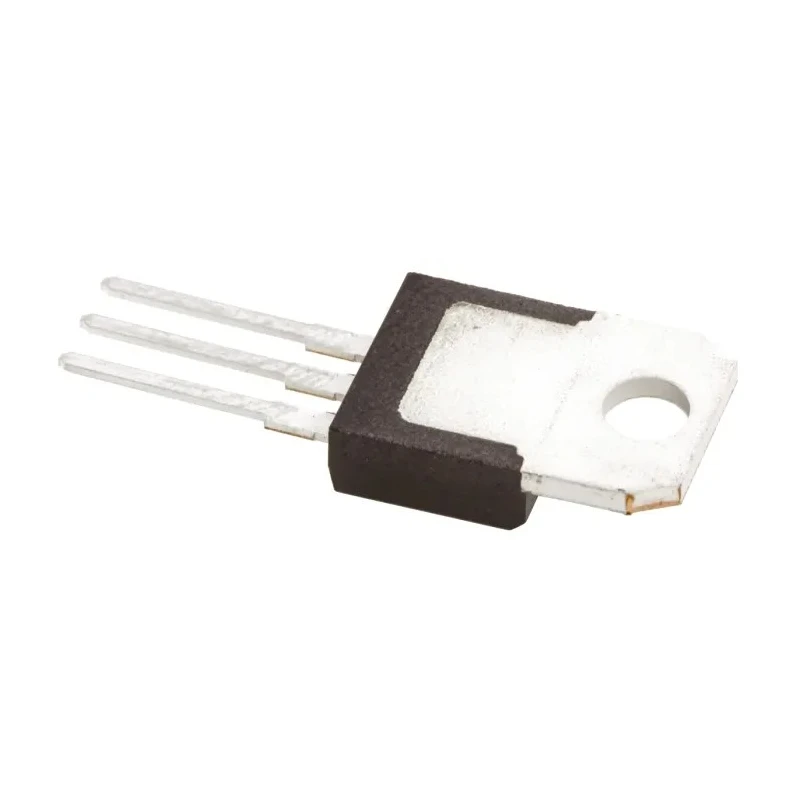

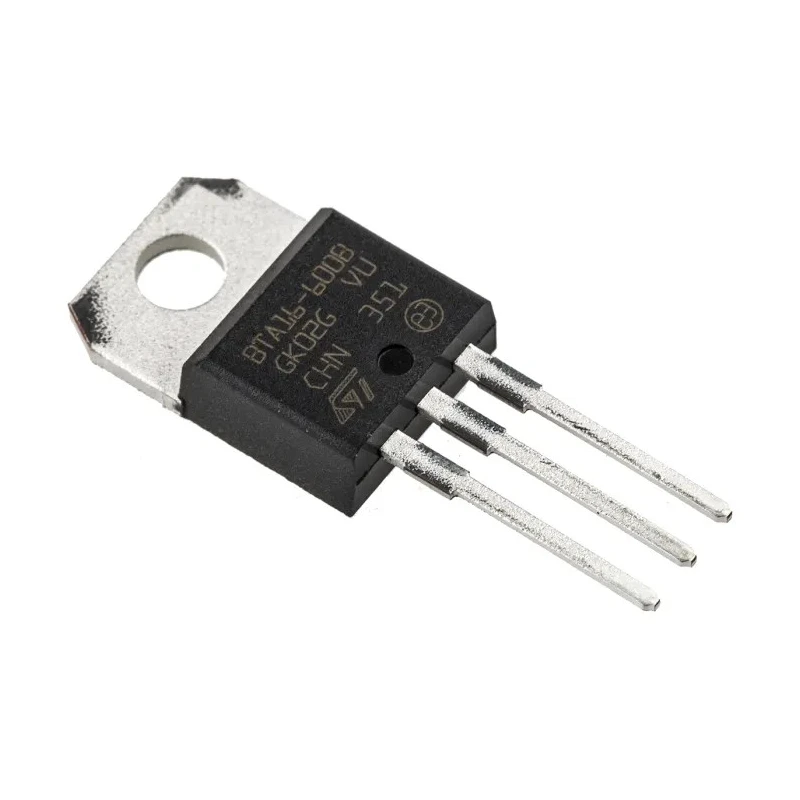

STMicroelectronics Through Hole 3-Pin TRIAC 16A 600V Gate Trigger 1.3V BTA16-600BRG

STMicroelectronics BTA16-600BRG is a high-quality 3-pin TRIAC designed for power control and switching applications in industrial and electronic circuits. It features a through-hole mount in a durable TO-220 package enabling reliable installation in various PCB assemblies.

With a rated average on-state current of 16A and a repetitive peak reverse voltage of 600V, this TRIAC can manage considerable power loads efficiently. The device operates with a maximum gate trigger voltage of 1.3V and gate current of 100mA, ensuring responsive triggering and stable operation.

The BTA16-600BRG offers a surge current rating of 168A to withstand transient current peaks commonly encountered in power switching environments. It supports operating temperatures from -40°C to 125°C, allowing use in both harsh and ambient environments without performance degradation.

Its compact height of 9.3mm and length of 10.4mm in the TO-220 package facilitates space-saving PCB designs. The single configuration and three-pin design simplify electrical connections and assembly.

This TRIAC is widely used in switching, phase control, lamp dimming, motor control, and heating element control in commercial, industrial, and laboratory equipment. Though it does not meet specific automotive or specialized standards, its robust electrical characteristics make it suitable for general power control applications.

Features a 16A rated average on-state current for robust power handling. Operates with a maximum repetitive peak reverse voltage of 600V. Equipped with a gate trigger voltage of 1.3V and a maximum gate current of 100mA. Houses a TO-220 package type suitable for through-hole mounting.

Supports a surge current rating of 168A to handle transient power conditions. Designed for operating temperatures ranging from -40°C to 125°C. Compact dimensions with a height of 9.3mm and length of 10.4mm. Single configuration with three pins for simplified integration.

Low peak on-state voltage of 1.55V for efficient switching. Adheres to no specific automotive or approval standards, making it suitable for general semiconductor applications.
