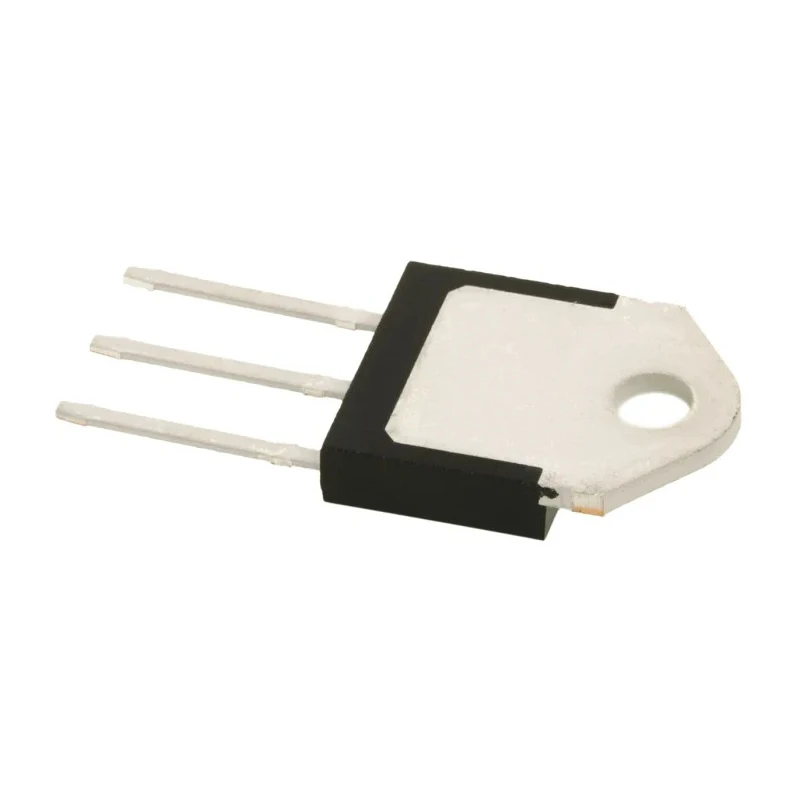

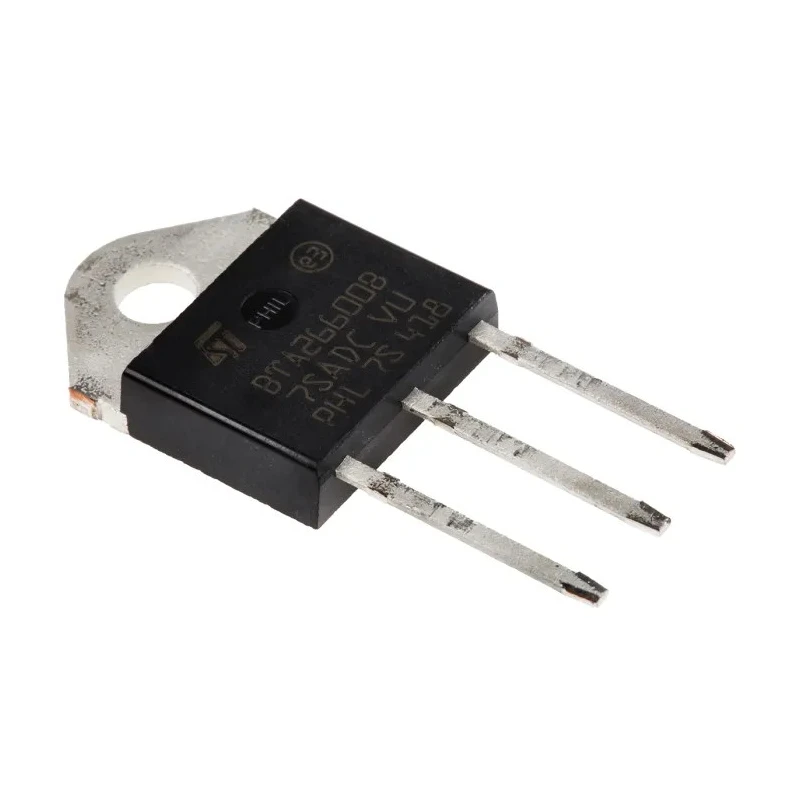

STMicroelectronics Through Hole 3-Pin TRIAC 25A 600V Gate Trigger 1.3V BTA26-600BRG

STMicroelectronics BTA26-600BRG is a through-hole mounted 3-pin TRIAC configured for efficient alternating current power switching and control. It is designed to handle a rated average on-state current of 25 amperes and can block repetitive peak reverse voltages up to 600 volts, making it suitable for a variety of power electronics and industrial control applications.

This TRIAC features a low gate trigger voltage of 1.3 volts and a maximum gate trigger current of 100 milliamperes, allowing for sensitive triggering and effective gate drive requirements. Its surge current rating is 260 amperes, providing tolerance against transient current surges common in power switching environments.

Operating temperature ranges from -40°C to 125°C ensures reliability in diverse conditions, while the maximum holding current of 80 milliamperes supports consistent conduction. The device is packaged in a TOP through-hole 3-pin format with dimensions of 15.5mm length and 12.85mm height, allowing for easy mounting on printed circuit boards.

Its peak on-state voltage of 1.55 volts contributes to efficient power switching by minimizing conduction losses. The triac is suitable for use in industrial automation, motor control, lighting dimmers, and HVAC equipment among other applications.

Rated average on-state current of 25 amperes ensures reliable power control. Maximum repetitive peak reverse voltage of 600 volts protects against voltage spikes. Low gate trigger voltage of 1.3 volts enables sensitive switching.

Through hole mounting in a 3-pin TOP package for robust PCB integration. Surge current rating of 260 amperes prevents damage during transients. Wide operating temperature range from -40°C to 125°C for harsh environments.

Compact physical dimensions easing design and assembly constraints. Maximum holding current of 80 milliamperes supports stability during conduction. Designed for single configuration TRIAC applications requiring precise control.

Peak on-state voltage of 1.55 volts ensures minimal conduction loss.

This product is ideal for engineers and manufacturers requiring a reliable semiconductor switching device for industrial, commercial, and electronic power management tasks. Its packaging and electrical characteristics combine to deliver high performance in power control circuits.
