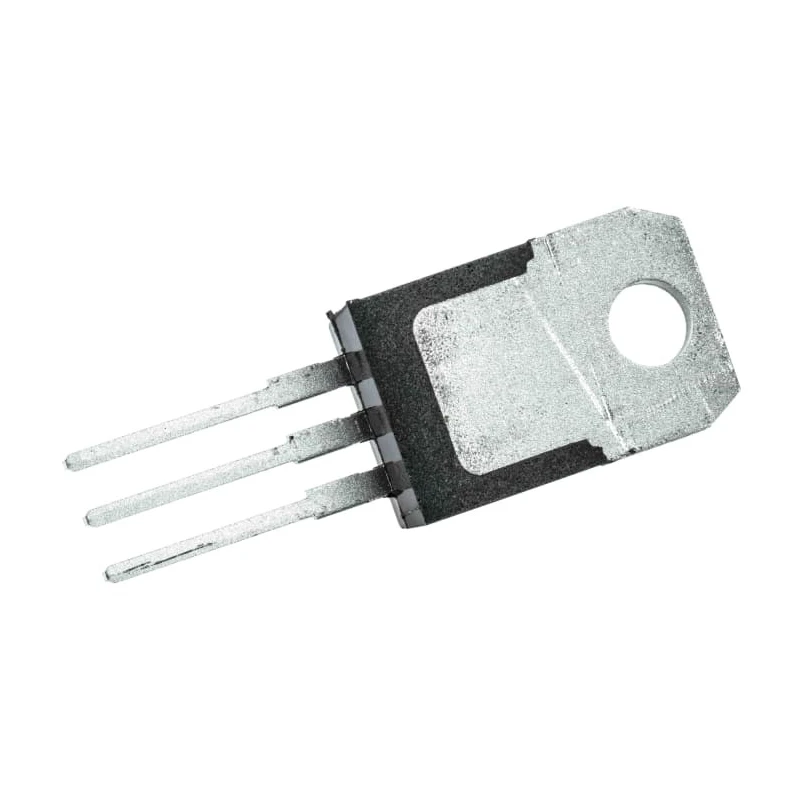

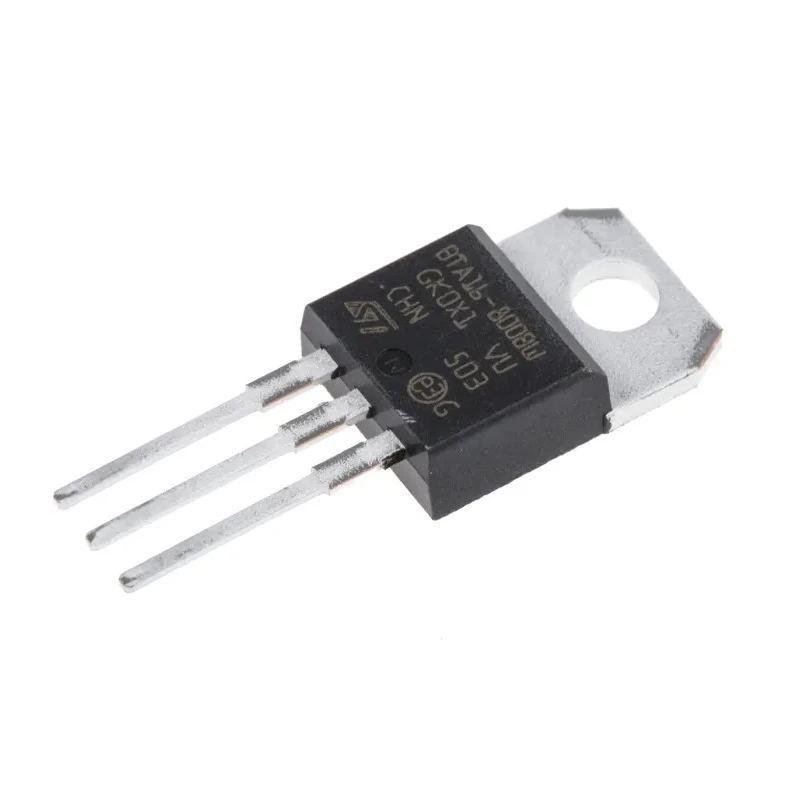

STMicroelectronics Through Hole 3-Pin TRIAC 800 V Gate Trigger 1.3 V BTA16-800BWRG

STMicroelectronics BTA16-800BWRG is a high-quality 3-pin TRIAC designed for through-hole mounting with a TO-220 package. It supports a rated average on-state current of 16A and a repetitive peak reverse voltage of 800V, making it suitable for controlling AC power in industrial and commercial electronic circuits.

Featuring a low gate trigger voltage of 1.3 V and a gate trigger current capped at 50 mA, this device ensures efficient triggering with minimal power. The surge current rating of 168A allows it to handle transient spikes without failure, enhancing reliability in demanding environments.

The device operates effectively over a broad temperature range from -40°C to 125°C, providing durability in harsh conditions. Its compact form factor, with a height of 9.3 mm and length of 10.4 mm, permits easy integration into PCB layouts requiring through-hole components.

This TRIAC has a maximum holding current of 50 mA and a peak on-state voltage of 1.55 V, optimizing performance for a variety of power control applications. The repetitive peak off-state current of just 5 μA reduces leakage current, contributing to energy efficiency in power circuits.

The single configuration of the BTA16-800BWRG is ideal for applications such as motor speed control, light dimming, and other AC power switching tasks in industrial, manufacturing, and domestic power electronics industries.

This TRIAC supports reliable power control in AC load circuits. Its robust construction suits industrial, laboratory, and HVAC equipment. The through-hole TO-220 package facilitates easy replacement and mechanical stability.

Low trigger voltage and current improve energy efficiency. High surge tolerance provides robust transient protection. For professionals seeking quality TRIACs for precision power control, the STMicroelectronics BTA16-800BWRG offers a trusted solution available on EnvMart.
