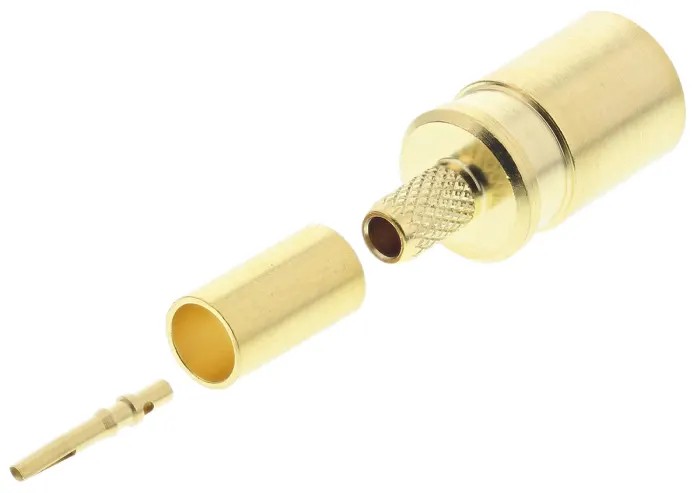

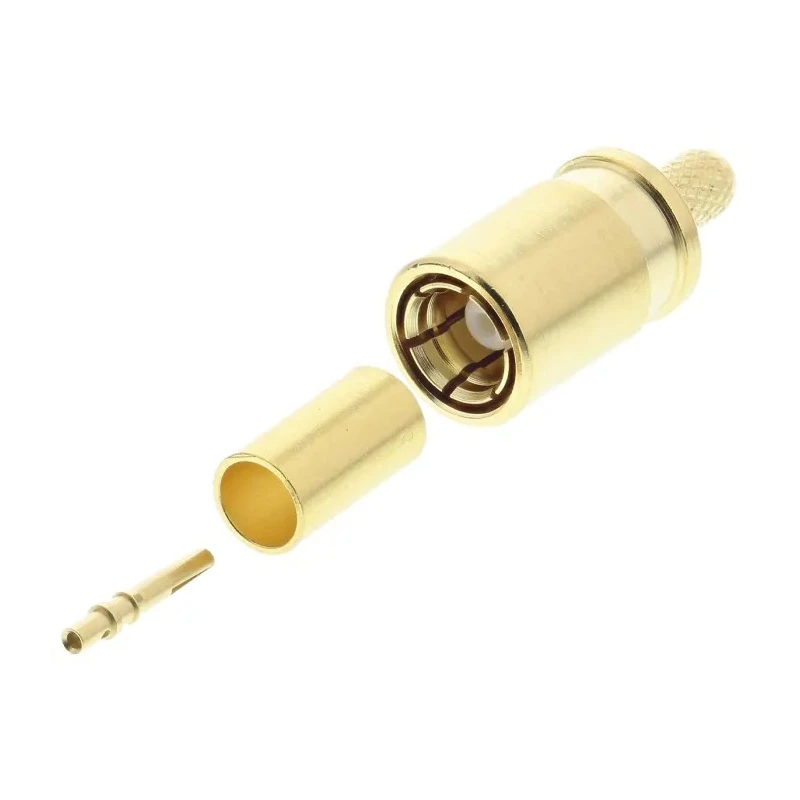

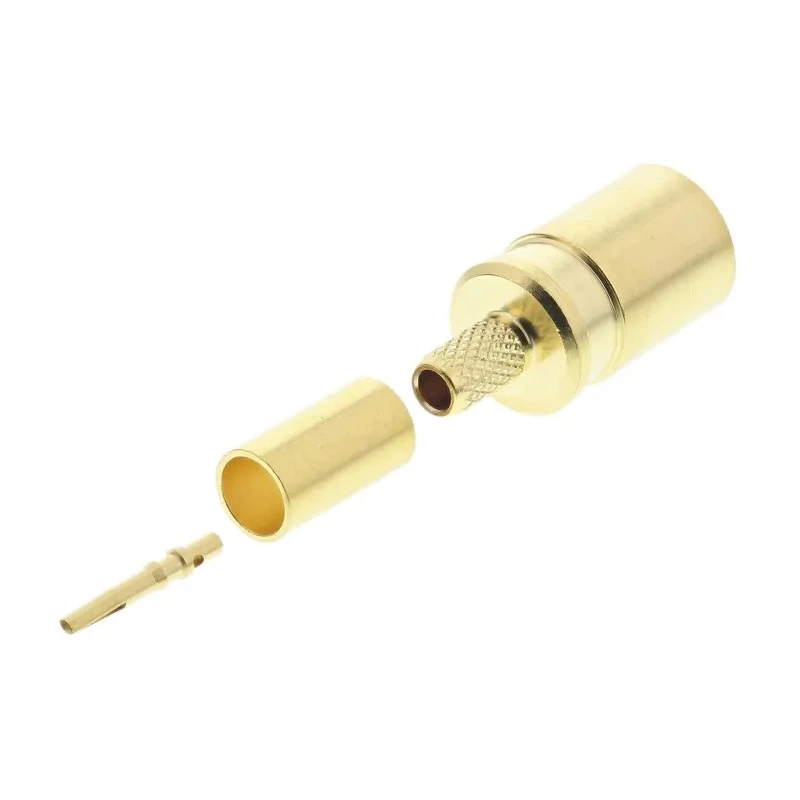

Telegartner SMB Series Coaxial Connector Cable Female SMB 50 Ω Straight Body Crimp J01161A0691
Specifications
| Country of Origin | Germany |
|---|---|
| Size | Standard |
| Brand | Telegartner |
| Orientation | Straight |
| Model | J01161A0691 |
| Mount Type | Cable |
| Operating Frequency | 4GHz |
| Contact Material | Beryllium Copper |
| Series | SMB |
| Termination Type | Crimp |
| Maximum Operating Temperature | 165°C |
| Cable Type | RG316/U, RG188A/U, RG-174U |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Copper Nickel Gold Alloy |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | SMB |
| Body Plating | Gold |
Key Features
- Designed for RG316/U, RG188A/U, and RG-174U cable types.
- Operates at frequencies up to 4 GHz with reliable signal transmission.
- Body plated with gold for enhanced conductivity and corrosion resistance.
- Contact made of beryllium copper with copper nickel gold alloy plating for durability.
- Crimp termination type ensures secure cable mounting.
- Operates in temperature range from -65°C to 165°C suitable for harsh environments.
- Normal polarity with female contact gender and standard SMB series design.
- Manufactured in Germany to high quality standards without specific approvals.
Product Description
Telegartner J01161A0691 SMB Series Coaxial Connector Cable is a high-quality female SMB coaxial connector designed specifically for use with RG316/U, RG188A/U, and RG-174U cable types. Featuring a straight body crimp mounting type, this coaxial connector offers excellent electrical performance at an impedance of 50 Ω and supports operating frequencies up to 4 GHz. The straight orientation and normal polarity ensure compatibility with a wide range of coaxial cable applications.
The connector body is plated with gold to improve conductivity and provide corrosion resistance, while the contact material is beryllium copper plated with a copper nickel gold alloy to enhance durability and longevity. Designed to operate reliably across a wide temperature range from -65°C up to 165°C, this coaxial connector is suitable for use in industrial, telecommunications, and electronic systems exposed to varying environmental conditions.
This product is manufactured in Germany with precision engineering but does not carry specific standard approvals. Suitable applications include RF coaxial connections in communications equipment, test measurement devices, and other electronic assemblies.
Compatible with RG316/U, RG188A/U, RG-174U cables. 50 Ω impedance for stable signal quality. Gold plated body for corrosion resistance. Beryllium copper contact with copper nickel gold alloy plating. Crimp termination for secure cable attachment.
Operating temperature range from -65°C to 165°C. Normal polarity and female contact configuration. Standard SMB series coaxial connector known for reliability.
Whether for industrial, telecommunications, or electronic applications, the Telegartner SMB Series Coaxial Connector Cable J01161A0691 offers reliable electrical performance and robust mechanical design, making it an ideal choice for high-frequency RF connection needs. Explore more Coaxial Connectors and related electronic components on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at frequencies up to 4 GHz, ensuring reliable signal transmission for various applications.
It is designed for use with RG316/U, RG188A/U, and RG-174U cable types, providing versatility in applications.
The connector has an impedance of 50 Ω, which is standard for many RF applications, ensuring stable signal quality.
The body is plated with gold for corrosion resistance, while the contact is made of beryllium copper with a copper nickel gold alloy plating for durability.
This unit operates reliably in a temperature range from -65°C to 165°C, making it suitable for harsh environments.
It features a crimp termination type, which ensures a secure and reliable cable mounting.
The connector has a straight body orientation, which facilitates easy installation in various setups.
The connector has a female contact gender, which is standard for many coaxial connections.
This product is manufactured in Germany, adhering to high quality standards.
It is suitable for RF coaxial connections in communications equipment, test measurement devices, and other electronic assemblies.
This model belongs to the SMB series of coaxial connectors, known for their reliability in various applications.
The connector body is plated with gold, enhancing its conductivity and providing corrosion resistance.
