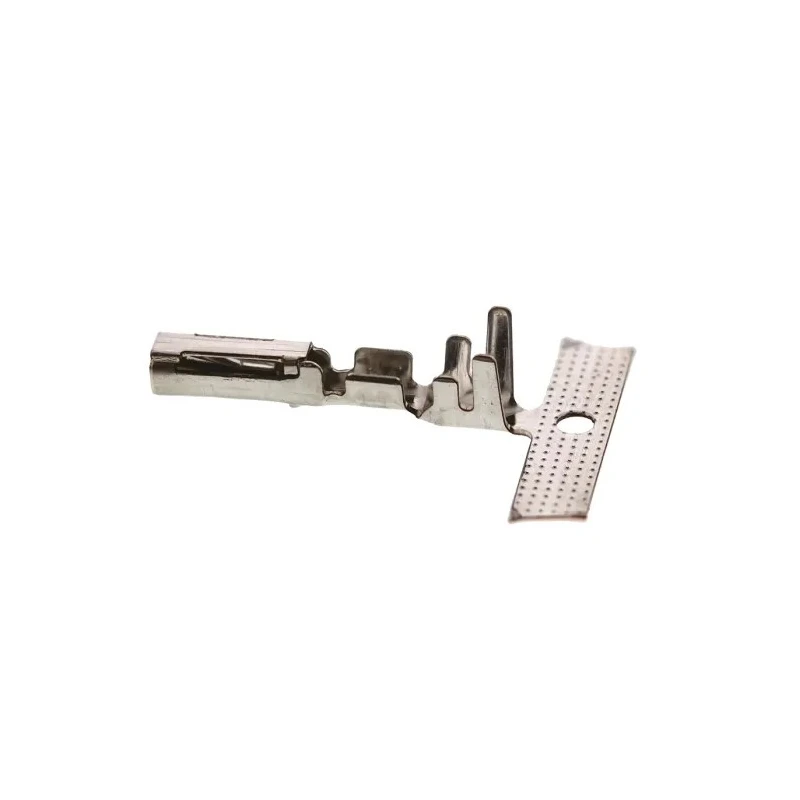

TE Connectivity MULTILOCK 040 II Series Female Crimp Terminal 21 AWG Min Crimp 20 AWG Max 175180-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Operating Temperature | -30 - 105 °C |
| Current | 5A |
| Length | 14.2mm |
| Model | 175180-1 |
| Gender | Female |
| Contact Material | Copper Alloy |
| Current Rating | 15A |
| Series | MULTILOCK 040 II |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -30°C |
| For Use With | MULTILOCK 040 II Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 0.5mm² |
| Minimum Wire Size AWG | 21AWG |
| Maximum Wire Size AWG | 20AWG |
| Low level resistance | 10 mΩ max (initial) |
| Overall resistance | 20 mΩ max (final) |
Key Features
- The terminal supports a current rating of 5A suitable for automation applications.
- Constructed of copper alloy with tin plating for durability and conductivity.
- Designed to operate within a temperature range of -30°C to 105°C for versatile environmental conditions.
- Features crimp termination type optimized for MULTILOCK 040 II Connector Housing.
- Offers low contact resistance ensuring efficient electrical performance.
- Provides a snap-in fixing connector cavity for secure mating.
- Suitable for high-density wiring connectors with 2.5mm contact centers.
- Ideal for wire-to-wire and wire-to-board applications, commonly used in automotive and industrial automation industries.
Product Description
TE Connectivity 175180-1 MULTILOCK 040 II Series Female Crimp Terminal is a high-density connector designed for industrial and automotive use, providing reliable wire-to-wire and wire-to-board electrical connections. This female terminal supports wire sizes from 21 AWG minimum to 20 AWG maximum, perfectly fitting MULTILOCK 040 II connector housings.
Constructed from copper alloy with tin plating, the terminal offers excellent conductivity while resisting corrosion. Its crimp termination ensures a robust mechanical connection. Measuring 14.2mm in length, it is compact and ideal for applications requiring precise wiring solutions.
The product operates efficiently in a broad temperature range from -30°C to 105°C, making it suitable for harsh environments often encountered in industrial automation, automotive, and electronic applications.
Electrical specifications include a current rating of 5A and low contact resistances (10 mΩ max initial, 20 mΩ final), ensuring high-performance signal integrity and power transmission. The snap-in fixing of connector cavities allows for secure and reliable mating, enhancing system stability.
This terminal is part of the MULTILOCK 040 & 070 Contacts range, well-known for offering configurable wiring options with compatible toolings. It supports wire-to-wire and wire-to-board interfaces, with a 2.5mm contact center pitch enabling dense packing of connections. It is mainly used in automation and automotive sectors but also finds use in various electronic equipment manufacturing setups.
The terminal supports a current rating of 5A suitable for automation applications. Constructed of copper alloy with tin plating for durability and conductivity. Designed to operate within a temperature range of -30°C to 105°C for versatile environmental conditions.
Features crimp termination type optimized for MULTILOCK 040 II Connector Housing. Length of the terminal measures 14.2mm for compact installation. Offers low contact resistance ensuring efficient electrical performance. Provides a snap-in fixing connector cavity for secure mating.
Suitable for high-density wiring connectors with 2.5mm contact centers. Ideal for wire-to-wire and wire-to-board applications, commonly used in automotive and industrial automation industries. Explore more electronic components and connectors suitable for industrial automation and automotive manufacturing at EnvMart.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal supports a current rating of 5A, making it suitable for automation applications.
It operates efficiently within a temperature range of -30°C to 105°C, suitable for various environmental conditions.
This model accommodates wire sizes from 21 AWG minimum to 20 AWG maximum, fitting perfectly into MULTILOCK 040 II connector housings.
The terminal is constructed from copper alloy with tin plating, providing excellent conductivity and corrosion resistance.
The length of the terminal measures 14.2mm, making it compact for installation in high-density wiring applications.
This terminal features a crimp termination type that is optimized for use with MULTILOCK 040 II connector housings, ensuring a robust mechanical connection.
It offers low contact resistance, with a maximum of 10 mΩ initially and 20 mΩ final, ensuring efficient electrical performance.
It is ideal for wire-to-wire and wire-to-board applications, commonly used in automotive and industrial automation industries.
This model supports a 2.5mm contact center pitch, enabling high-density packing of connections.
Yes, it is specifically designed for use with MULTILOCK 040 II connector housings, ensuring compatibility and secure mating.
The terminal is manufactured in India, indicating its place of origin.
The maximum operating temperature for this terminal is 105°C, suitable for various high-temperature applications.
