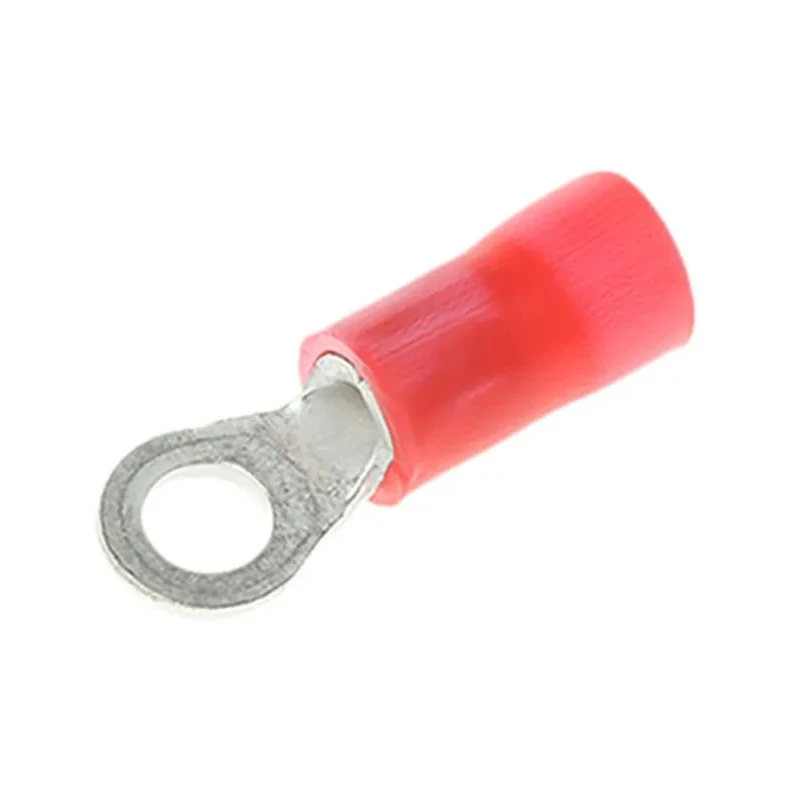

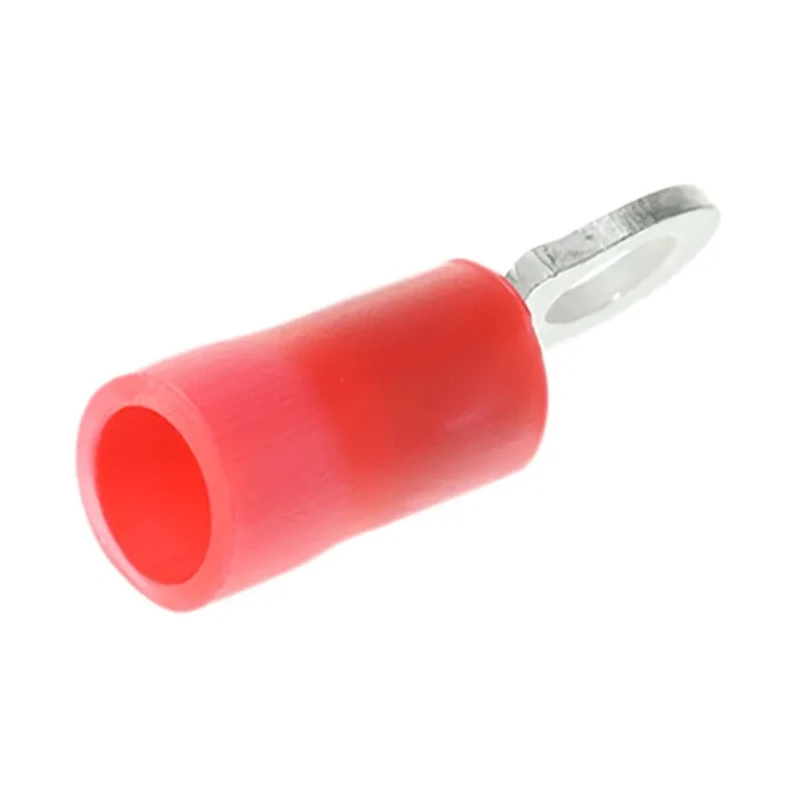

TE Connectivity PLASTI-GRIP Insulated Ring Terminal M3 Stud Size for 22 AWG to 18 AWG Wire Red 170780-1

TE Connectivity 170780-1 PLASTI-GRIP Insulated Ring Terminal is engineered for efficient wire termination in electrical and power connectors. The ring terminal features an M3 stud size and is suitable for wire sizes ranging from 22 AWG to 18 AWG, color-coded in red insulation for quick identification.

Manufactured from high-conductivity copper and plated with tin, the contact material ensures excellent electrical continuity and corrosion resistance. The vinyl insulation sleeve rated 94V-0 provides strong dielectric strength, protecting the connection from electrical short circuits.

The terminal's inner barrel is serrated to secure maximum electrical contact and mechanical tensile strength after crimping. Its funnel entry facilitates easy wire insertion, reducing assembly time and improving reliability.

With an overall length of 17.5 mm and a max operating temperature of 105°C, these ring terminals are ideal for electronic component wiring, power distribution systems, and industrial electrical installations requiring durable and safe connections.

Constructed with copper contacts plated with tin for optimal conductivity and protection. Insulated with high dielectric vinyl rated at 94V-0 for safety and durability. Suitable for wire gauges 22 AWG to 18 AWG (0.26 mm² to 1 mm²).

M3 stud size for secure connection to stud mounting points. Compact 17.5 mm overall length for versatile use. Red insulation color for easy wire size identification. Maximum temperature rating of 105°C for industrial environments.

This product is designed for use in industrial, electronic, power connector, and electrical wiring applications where reliable insulated Ring Terminals are essential. It helps ensure strong mechanical and electrical connections in demanding environments.
