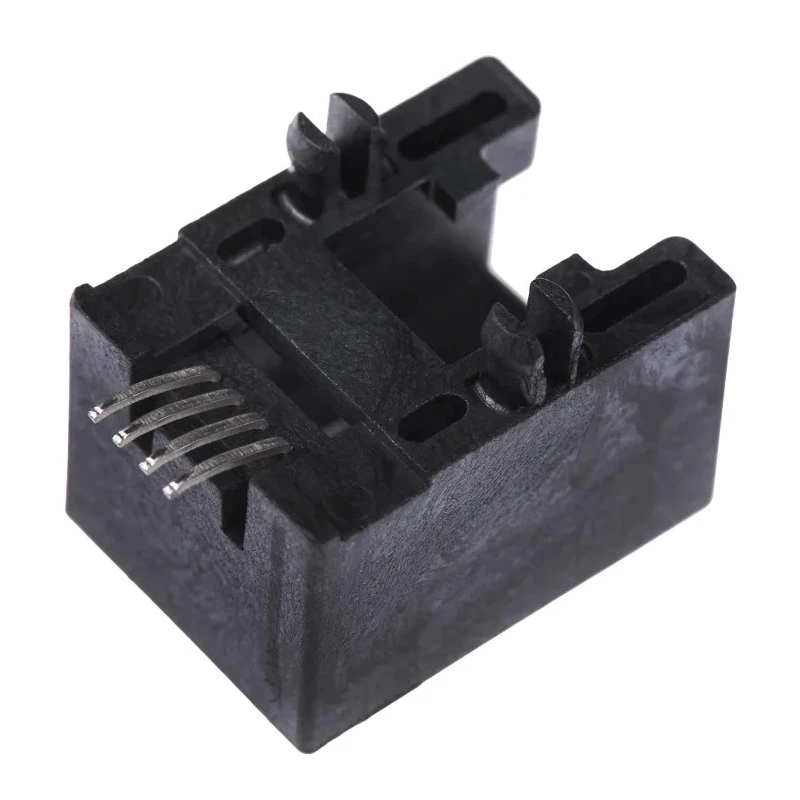

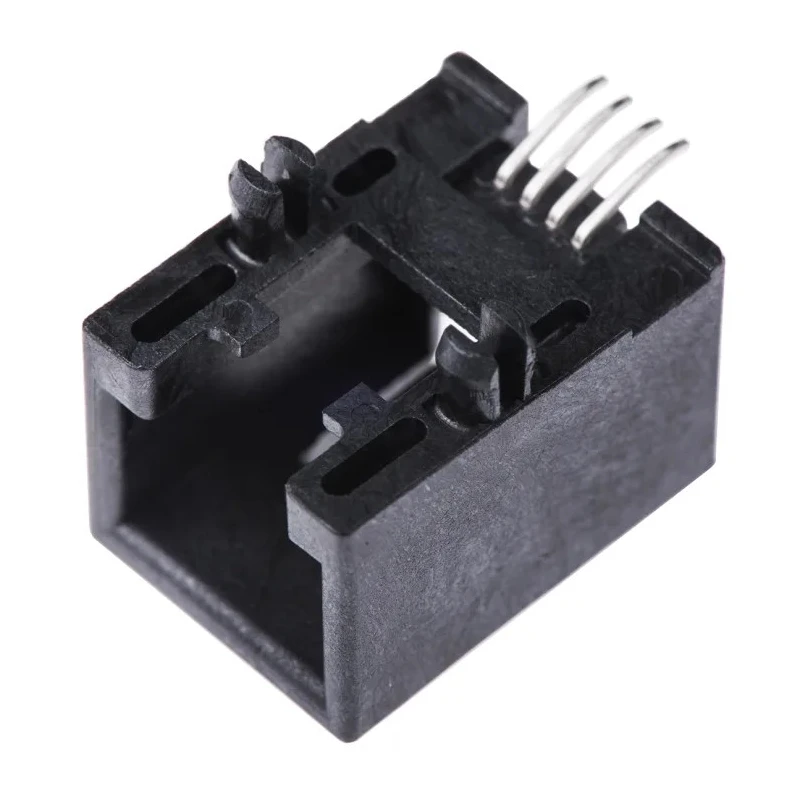

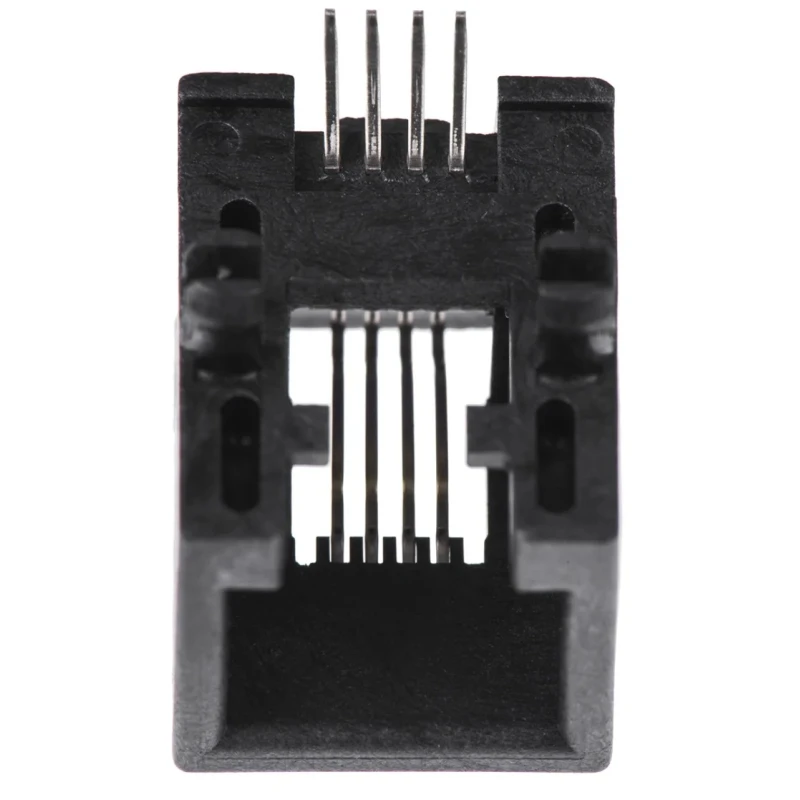

Molex 95501 Series RJ11 Connector Female, Surface Mount, Cat3 UTP Shielded, Right Angle, 1 Port 6 Way RJ11

Molex RJ11 connector RJ11 is a female, right angle modular jack designed specifically for Cat3 unshielded twisted pair (UTP) applications. It features a surface mount design with a single port and 6-way circuit configuration, ideal for voice, data, and high-speed networking purposes across consumer, industrial, medical, and commercial sectors.

This connector incorporates a space-saving low profile footprint of 11.5 mm width, 18.1 mm depth, and 13.2 mm length, enabling tight board stacking in PCB layouts. Its housing is made from high temperature thermoplastic material capable of withstanding reflow soldering processes while maintaining dimensional stability. The contacts are crafted from phosphor bronze plated with gold over nickel to provide excellent conductivity and corrosion resistance.

Additional features include PCB retention pegs that help secure the connector during assembly. The connector supports operation from -40°C to 85°C ambient temperature and conforms to industry standards for performance and reliability.

Its design excludes magnetic components and LEDs, with UTP shielding suitable for Category 3 network cabling. This RJ11 connector is part of the Molex 95501 series, trusted for robust and precise Ethernet Connector solutions.

This connector features a low profile, space-saving design compatible with tight board stacking. Constructed with high temperature thermoplastic housings for reflow solder capability. Phosphor bronze contacts plated with gold over nickel ensure reliable electrical performance.

Suitable for voice, data, and high-speed networking in consumer, industrial, medical, and commercial applications. Equipped with PCB retention pegs for enhanced position stability during assembly. Operates reliably within temperature ranges from -40°C to 85°C.

The connector is shielded with UTP and has no magnetic or LED components. Available in the 95501 series by Molex with precise dimensions of 11.5 mm width, 18.1 mm depth, and 13.2 mm length.

This Molex RJ11 connector is an ideal choice for industrial, laboratory, construction, and commercial network hardware manufacturers. It supports high quality assembly, durable electrical contacts, and compatibility with standard Cat3 cabling, ensuring long-lasting performance in demanding environments.
