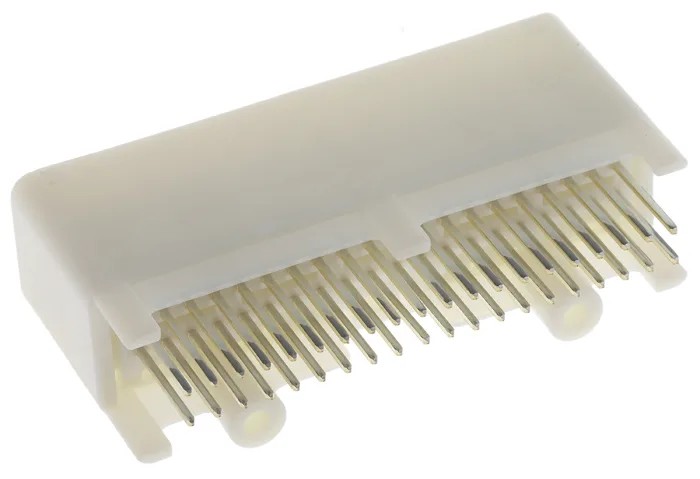

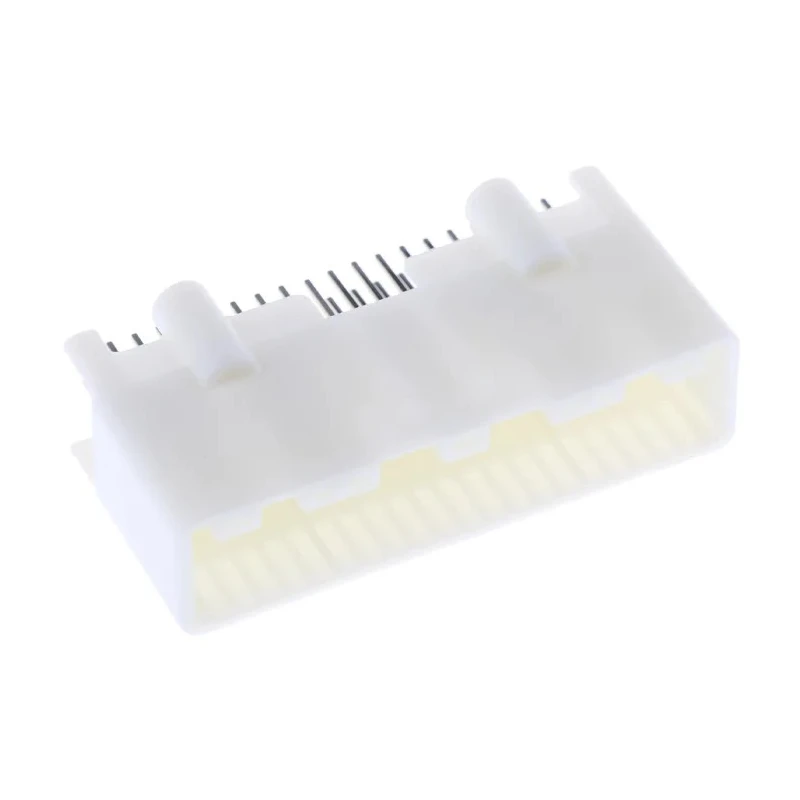

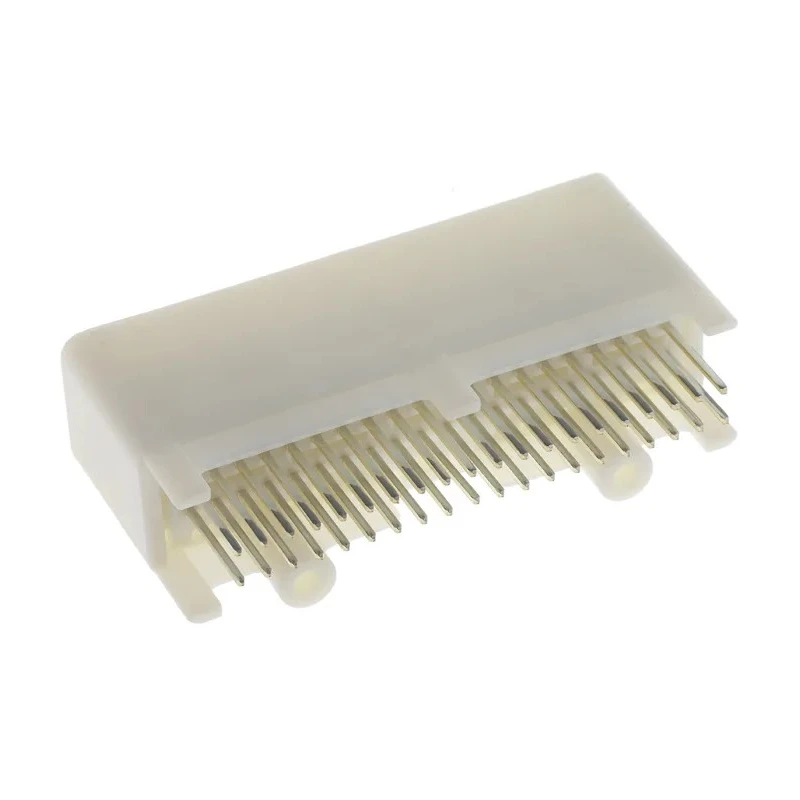

TE Connectivity TH 025 Automotive Connector Female Natural Through Hole 40 Way Solder Termination 1376113-2
Specifications
| Brand | TE Connectivity |
|---|---|
| Colour | Natural |
| Height | 23.4mm |
| Depth | 15.3mm |
| Width | 49.4mm |
| Gender | Female |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | TH 025 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Automotive Wire Connector |
| Minimum Operating Temperature | -30°C |
| Number of Rows | 2 |
| Standards/Approvals | EU RoHS, EU ELV |
| Contact Plating | Tin |
| Number of Contacts | 40 |
Key Features
- The connector features a compact 2.2 mm pitch and two rows with 40 contacts for high-density wiring.
- It has a natural colored polybutylene terephthalate (PBT) housing for durability and easy identification.
- Solder termination ensures reliable electrical contact with brass contacts plated in tin.
- Designed for through-hole PCB mounting with board fixation screws for secure installation.
- Operation temperature ranges from -30°C to a maximum of 105°C, suitable for automotive environments.
- Applications include automotive safety, security, driver information, and body control systems.
- Connector series TH 025 offers resistance to fretting corrosion and low mating force for reliable performance.
- The connector is RoHS and ELV compliant, ensuring environmental safety.
Product Description
TE Connectivity 1376113-2 Automotive Connector Female Natural Through Hole 40 Way Solder Termination is engineered for high-performance automotive electrical systems requiring durable and secure connections. This connector belongs to the TH 025 series known for its compact size and high-density 2.2 mm pitch, making it suitable for applications where space is limited.
The connector housing is made from polybutylene terephthalate (PBT) material with a natural color code, assisting easy identification in complex wiring assemblies. The contacts are brass with tin plating, providing excellent electrical conductivity and resistance against corrosion.
It features two rows and a total of 40 contacts, ensuring reliable signal and power transmission. The through-hole mounting style with board fixation screws guarantees secure attachment to PCBs in automotive control modules and ECUs.
Operating temperature capabilities from -30°C up to 105°C make this connector apt for use in demanding automotive environments including safety systems, driver information displays, body control modules, multimedia, and airbag ECU systems.
The TH 025 series connectors are designed to resist fretting corrosion with a low mating force, enhancing connection longevity and reliability. Compliance with EU RoHS and ELV standards confirms the product's adherence to environmental and safety regulations.
The connector offers a compact 2.2 mm pitch and high-density contact arrangement. Polybutylene terephthalate housing ensures mechanical strength and chemical resistance. Brass contacts with tin plating improve corrosion resistance and electrical performance.
Through-hole mount with fixation screws provides robust PCB attachment. Suitable for varied automotive applications including safety, security, and convenience systems. Wide temperature range operation supports harsh automotive environments.
Meets environmental regulations with EU RoHS and ELV compliance.
This TE Connectivity TH 025 automotive connector series is ideal for industrial, automotive manufacturing, electronic control units, and other commercial automotive applications. Explore more Automotive Connector solutions on EnvMart for reliable, high-quality connectors built to precise industry standards.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this connector is 105°C.
This model features a total of 40 contacts arranged in two rows.
It uses solder termination to ensure reliable electrical contact.
The housing is made from polybutylene terephthalate (PBT), which provides durability and chemical resistance.
The connector has a compact pitch size of 2.2 mm.
The minimum operating temperature is -30°C, making it suitable for various automotive environments.
It is designed for through-hole mounting with board fixation screws for secure installation.
The dimensions are 49.4 mm in width, 15.3 mm in depth, and 23.4 mm in height.
It complies with EU RoHS and EU ELV standards, ensuring environmental safety.
The contacts are made of brass and are plated with tin for enhanced conductivity and corrosion resistance.
This connector is suitable for applications in automotive safety, security, driver information, and body control systems.
This connector is a female type, designed for use in various automotive electrical systems.
