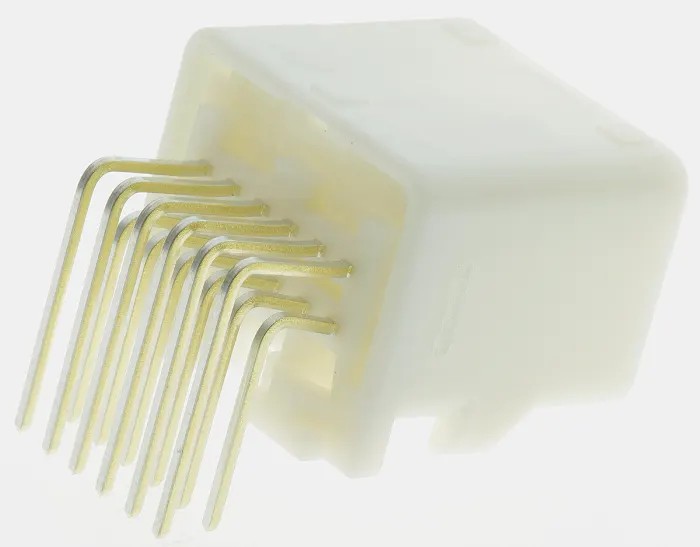

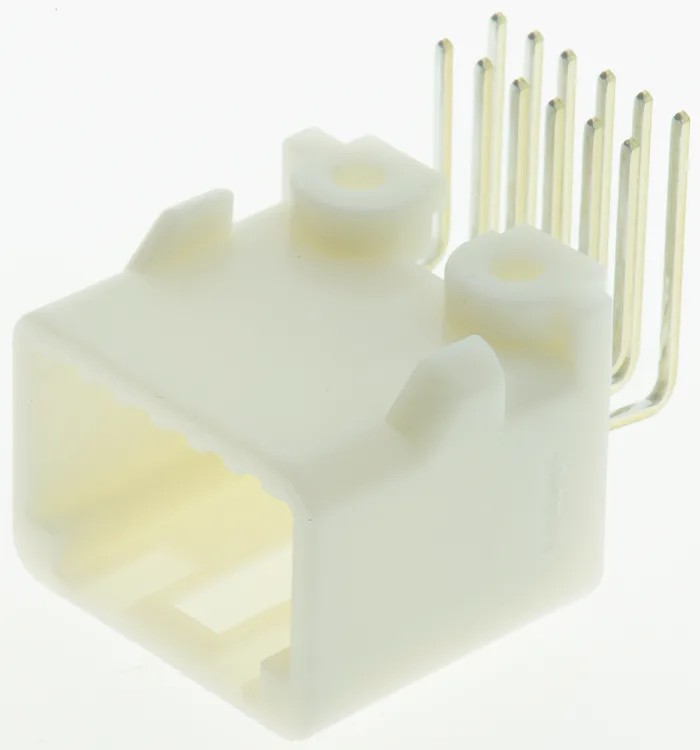

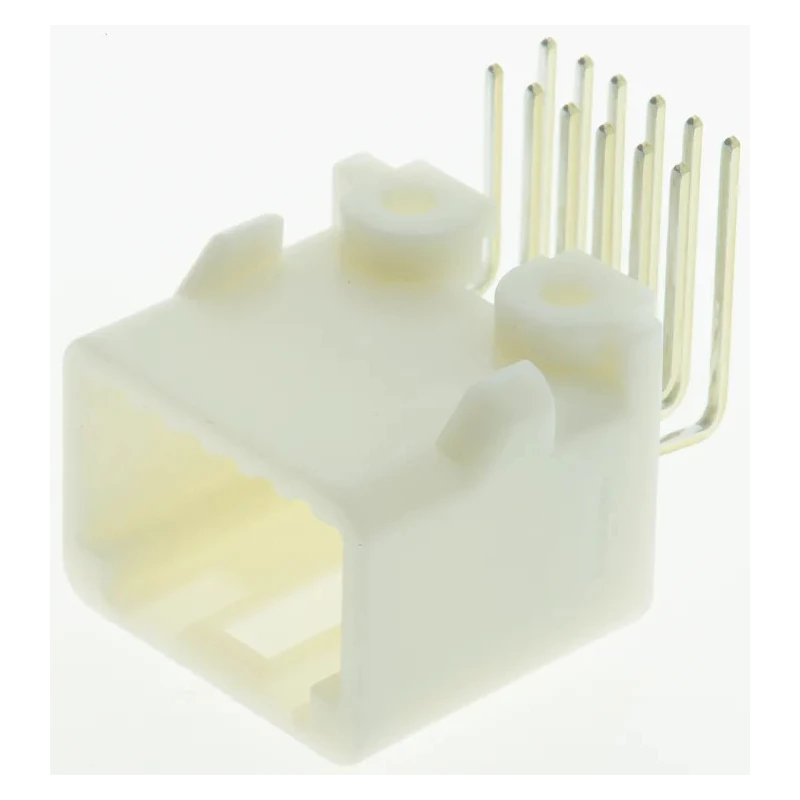

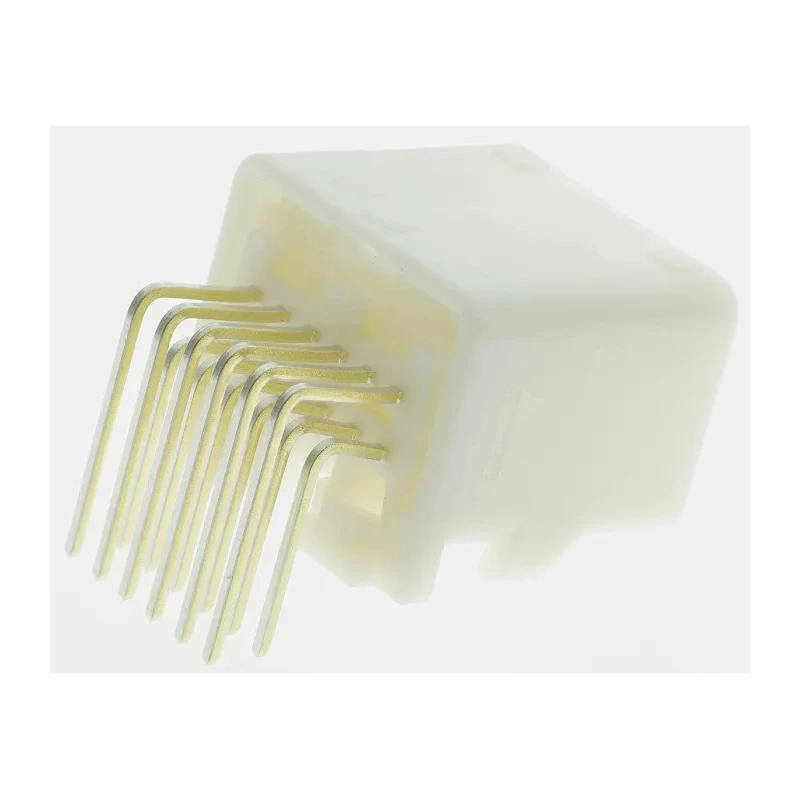

TE Connectivity TH 025 Automotive Connector Female Natural Through Hole 12 Way Solder Termination 1318772-2
Specifications
| Brand | TE Connectivity |
|---|---|
| Colour | Natural |
| Height | 15.5mm |
| Depth | 24.47mm |
| Width | 18.6mm |
| Gender | Female |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | TH 025 |
| Termination Type | Solder |
| Maximum Operating Temperature | 150°C |
| Sub Type | Automotive Wire Connector |
| Minimum Operating Temperature | -30°C |
| Number of Rows | 2 |
| Standards/Approvals | EU ELV, EU RoHS |
| Contact Plating | Tin |
| Number of Contacts | 12 |
Key Features
- Features a compact design with a high density 2.2 mm pitch for efficient PCB space usage.
- Includes board fixation screws for secure mounting and reliable connections.
- Constructed with Polybutylene Terephthalate housing ensuring durability and resistance.
- Brass contact material plated with tin for corrosion resistance and stable conductivity.
- Operating temperature range from -30°C to 150°C suitable for harsh automotive environments.
- Colour coded housing facilitates easy identification during assembly and maintenance.
- Suitable for use in automotive safety, security, driver information, and body control systems.
- Connector designed with a low mating force for ease of assembly and fretting corrosion resistance.
Product Description
TE Connectivity 1318772-2 Automotive Connector Female offers a natural coloured through hole solder termination with 12 contacts arranged in 2 rows, designed for automotive electronic systems. Operating within a temperature range from -30°C to 150°C, this TH 025 series connector features a compact form factor with a high density 2.2 mm pitch and a secure board fixation system using screws to ensure reliable PCB mounting.
The housing is made of durable Polybutylene Terephthalate (PBT), providing excellent mechanical strength and thermal resistance. Contacts are manufactured from brass and plated with tin to prevent corrosion and guarantee consistent electrical performance over time.
This connector is ideal for various automotive applications including safety and security modules, driver information systems, body and chassis controls, multimedia devices, and displays. Its colour coded housings simplify correct assembly and maintenance processes.
The connector design includes a low connector mating force to minimize wear, and resistance to fretting corrosion, improving longevity and reliability in demanding automotive environments. Typical uses include mirrors, airbag electronic control units, dashboard controls, and body controller management.
Compact high-density 2.2 mm pitch design for PCB headers. Board fixation screws provide secure mounting to printed circuit boards. High temperature tolerance from -30°C to 150°C suitable for automotive conditions. Polybutylene Terephthalate housing offers excellent durability and chemical resistance.
Brass contacts with tin plating ensure reliable electrical connections. Colour coded housings facilitate easy identification during installation. Low connector mating force reduces wear and enhances connector life. Applications include body control modules, multimedia systems, airbag ECUs, and switch assemblies.
This TE Connectivity TH 025 series connector is engineered to meet demanding automotive electronic requirements, providing a reliable and compact solution for high performance and space-constrained applications. Browse the Automotive Connectors category at EnvMart for compatible connectors and accessories optimized for automotive use cases.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The automotive connector operates within a temperature range from -30°C to 150°C, making it suitable for harsh automotive environments.
This model features 12 contacts arranged in 2 rows, designed for efficient connections in automotive electronic systems.
The housing is made of Polybutylene Terephthalate (PBT), while the contacts are manufactured from brass and plated with tin for corrosion resistance.
It uses a through hole mounting type, which allows for secure installation on printed circuit boards.
The dimensions of this connector are 15.5 mm in height, 24.47 mm in depth, and 18.6 mm in width.
Yes, it is suitable for various automotive applications, including safety and security modules, driver information systems, and body control systems.
Yes, it includes colour coded housings for easy identification during assembly and maintenance, and a low mating force design to reduce wear.
This connector uses solder termination, which is common for secure electrical connections in automotive applications.
It complies with EU ELV and EU RoHS standards, ensuring it meets environmental regulations.
The connector features a high density 2.2 mm pitch, which allows for efficient use of PCB space in compact designs.
Yes, it includes board fixation screws that provide secure mounting to printed circuit boards for reliable connections.
The Polybutylene Terephthalate housing provides excellent durability and chemical resistance, suitable for demanding automotive environments.
