KNITTER-SWITCH PCB Slide Switch SPST Latching 3A Nylon MSS3011D

Free Delivery in India | Lowest Global Shipping Charges

KNITTER-SWITCH PCB Slide Switch SPST Latching 3A Nylon MSS3011D

Name: KNITTER-SWITCH PCB Slide Switch SPST Latching 3A Nylon MSS3011D
Brand: KNITTER-SWITCH
SKU: 218412
Price: 4.2 USD
Availability: InStock



Category Slide Switch Brand KNITTER-SWITCH Condition New

Specifications

Country of Origin	China
Brand	KNITTER-SWITCH
Length	14mm
Model	MSS3011D
Depth	7.8mm
Width	7.7mm
Mount Type	PCB
Series	MSS
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Switch Configuration	On-On
Minimum Operating Temperature	-40°C
Terminal type	Solder
Standards/Approvals	RoHS
Switch Operation	Latching
Contact DC Voltage	28V dc
Switch Contact Current	3A
Mechanical Life	20000Operations
Contact AC Voltage	250V ac
Actuator Material	Nylon

Key Features

The switch has a Single Pole Single Throw (SPST) contact configuration for simple ON/OFF control.
It supports a switch contact current of up to 3A for moderate power circuits.
The switch body and actuator are made of durable nylon for high mechanical strength and heat resistance.
The switch features a latching operation mechanism with On-On configuration for stable state holding.
Mounting type is PCB solderable, suitable for compact electronic assemblies.
Supports DC voltage up to 28V and AC voltage up to 250V for versatile electrical use cases.
The mechanical life is rated for 20,000 operations ensuring long-term reliability.
Operating temperature ranges from -40°C minimum to 85°C maximum to withstand varied environments.

Product Description

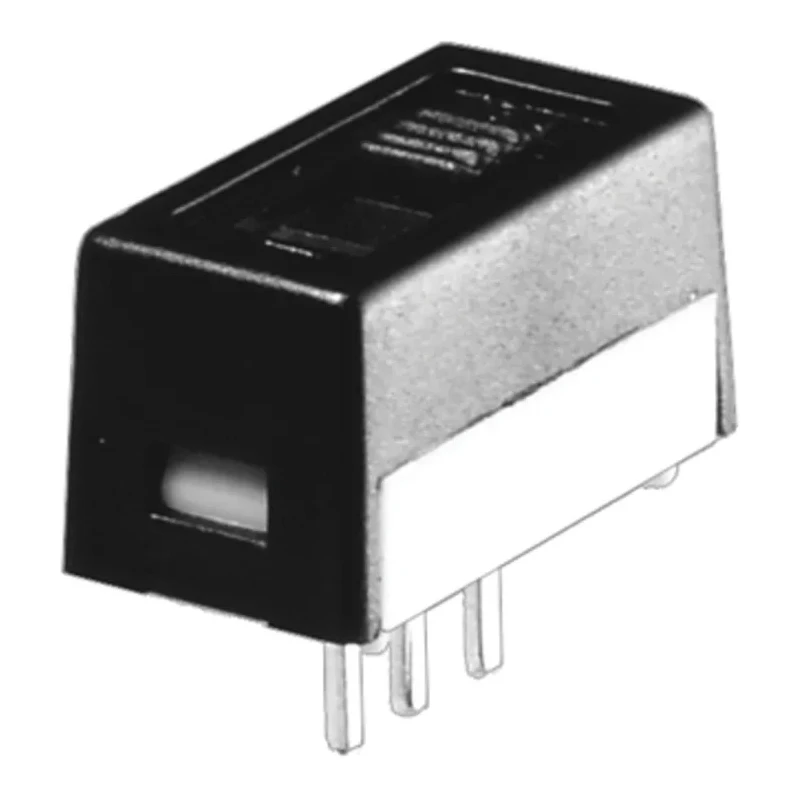

KNITTER-SWITCH MSS3011D PCB Slide Switch SPST Latching 3A Nylon is a miniature slide switch designed for precision control in electrical and electronic applications. It features a durable black nylon actuator and case with a white nylon base, providing mechanical strength and thermal resilience.

This slide switch provides a Single Pole Single Throw (SPST) contact configuration with a latching On-On switch operation providing reliable switching with tactile feedback. Rated for a switch contact current of 3A, it supports both DC voltage up to 28V and AC voltage up to 250V, making it suitable for a broad range of handheld products, instrumentation, white goods, medical devices, information technology, and telecommunications equipment.

The switch is designed for PCB mounting and soldering with solder-type terminals, enabling integration into compact printed circuit boards. Its mechanical lifespan of 20,000 operations ensures long-term usage without performance degradation. It operates reliably between -40°C and 85°C, handling demanding ambient conditions encountered in industrial and consumer electronics.

The compact form factor with dimensions of 14 mm length, 7.7 mm width, and 7.8 mm depth facilitates use in space-constrained applications. It complies with RoHS environmental directives, supporting lead-free manufacturing processes and safe disposal standards.

Single Pole Single Throw (SPST) contact configuration. Latching On-On switch operation for stable control. Switch contact current rated at 3A for moderate power applications. Compact and durable nylon actuator and casing materials.

PCB mount and solder-type terminal for easy integration. Supports DC 28V and AC 250V contact voltage ratings. Mechanical life rating of 20,000 dependable operations. Wide operating temperature range from -40°C to 85°C. Compliant with RoHS environmental standards.

This slide switch is ideally suited for industrial, laboratory, electronic manufacturing, telecom, and household electrical device applications. Its reliable and compact design enables efficient automation and control in various systems.
