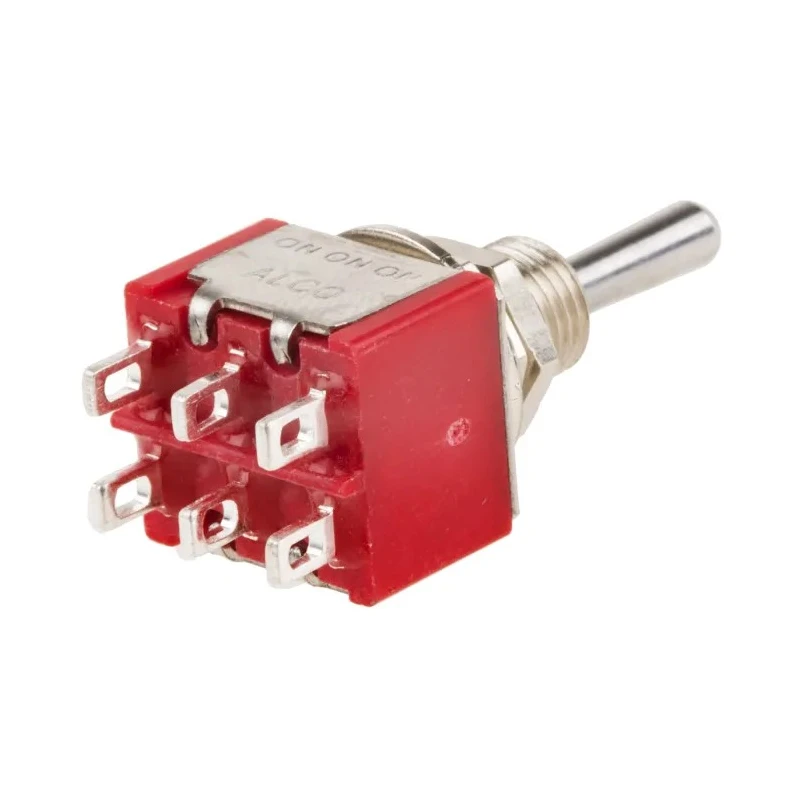

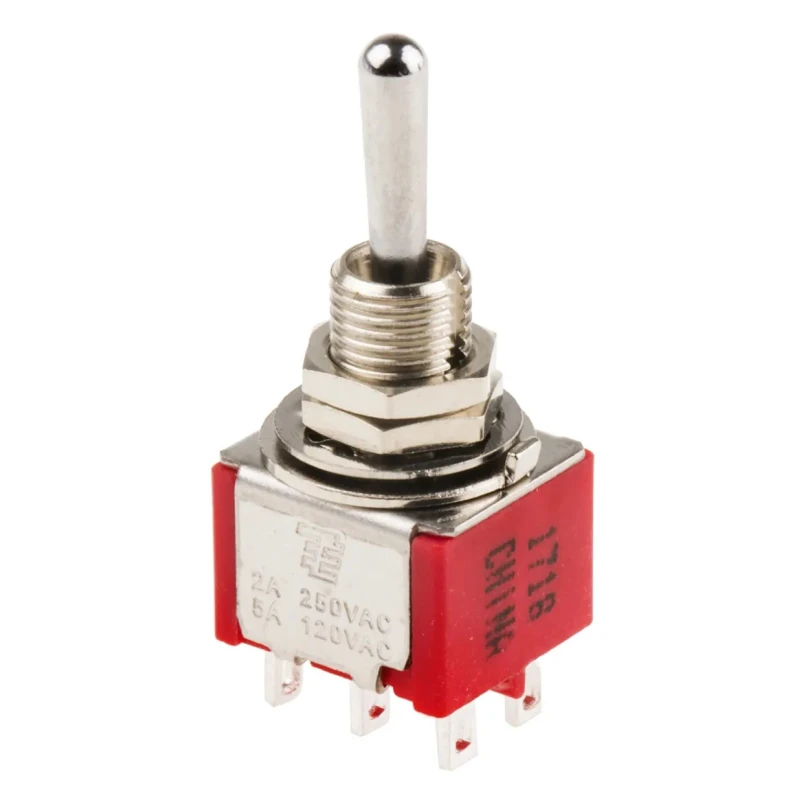

TE Connectivity Panel Mount Toggle Switch, DP3T, On-On-On, Solder Terminal, 24 V dc, 120 V ac 3-1825139-9
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| IP Rating | IP67 |
| Mount Type | Panel |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DP3T |
| Switch Configuration | 2P |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 6.35 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS, IEC, EN, cULus, UL |
| Switch Operation | On-On-On |
| Actuator Length | 10.41mm |
| Contact DC Voltage | 24V dc |
| Switch Contact Current | 5A |
| Mechanical Life | 6000Cycles |
| Contact AC Voltage | 120V ac |
| Actuator Material | Phenolic |
Key Features
- Rated for 5A switch contact current with solder terminal type for secure connections.
- Features an IP67 rating ensuring protection from dust and water ingress.
- Constructed with a phenolic actuator material and stainless steel frame for durability.
- Operates reliably between -30°C and 85°C ambient temperatures.
- Designed with a 6.35 mm panel cutout and a 10.41 mm actuator length for easy panel mounting.
- Epoxy sealed terminals provide enhanced insulation and longevity.
- Mechanical life rated at 6000 cycles for sustained industrial use.
- Complies with RoHS, IEC, EN, cULus, and UL standards for safety and environmental compliance.
Product Description
TE Connectivity 3-1825139-9 is a robust panel mount toggle switch designed for industrial applications requiring reliable electrical switching. This DP3T On-On-On toggle switch operates at 24 V dc and 120 V ac voltages, rated for a 5A contact current, making it suitable for diverse low voltage electrical circuits.
The switch features a phenolic actuator and a stainless steel frame with brass tin plated solder supports, ensuring mechanical strength and corrosion resistance. Its epoxy sealed terminals contribute to enhanced insulation and protection against environmental factors.
With an IP67 rating, this toggle switch is protected against dust ingress and temporary immersion in water, making it ideal for harsh industrial environments. Operating temperature range of -30°C to 85°C ensures dependable performance in various climatic conditions.
The panel cutout size of 6.35 mm and actuator length of 10.41 mm facilitate straightforward panel installation and user interface. The switch configuration includes 2 poles for effective circuit control.
Compliant with RoHS, IEC, EN, cULus, and UL standards, it meets global safety and environmental requirements. The mechanical life expectancy of 6000 cycles ensures long-term reliability in manufacturing, automation, and electrical equipment.
Rated for 5A continuous current at 24 V dc and 120 V ac voltages. Stainless steel frame with epoxy sealed terminals for durability and safety. Suitable for panel mount applications requiring robust and sealed toggle switches.
Wide operating temperature range supports various industrial use cases. Ideal for industrial machinery, electrical panels, and automation systems. Explore more TE Connectivity Toggle Switches and related electrical components at EnvMart for your industrial automation and electrical design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a DP3T (Double Pole, Triple Throw) contact configuration, allowing for multiple circuit control options.
The maximum operating temperature for this toggle switch is 85°C, ensuring reliable performance in high-temperature environments.
It has an IP67 rating, providing protection against dust ingress and temporary immersion in water.
The switch is rated for a 5A switch contact current, suitable for various low voltage electrical circuits.
This toggle switch features solder terminals, which provide secure connections for electrical circuits.
It has a mechanical life rated at 6000 cycles, ensuring long-term reliability in industrial applications.
The required panel cutout size for this model is 6.35 mm, facilitating straightforward panel mounting.
The minimum operating temperature for this toggle switch is -30°C, allowing it to function in cold environments.
It is constructed with a phenolic actuator material and a stainless steel frame, providing durability and corrosion resistance.
This model complies with RoHS, IEC, EN, cULus, and UL standards, ensuring safety and environmental compliance.
It operates at 24 V dc and 120 V ac, making it versatile for different electrical applications.
This toggle switch features an On-On-On operation, allowing for multiple switching positions.
