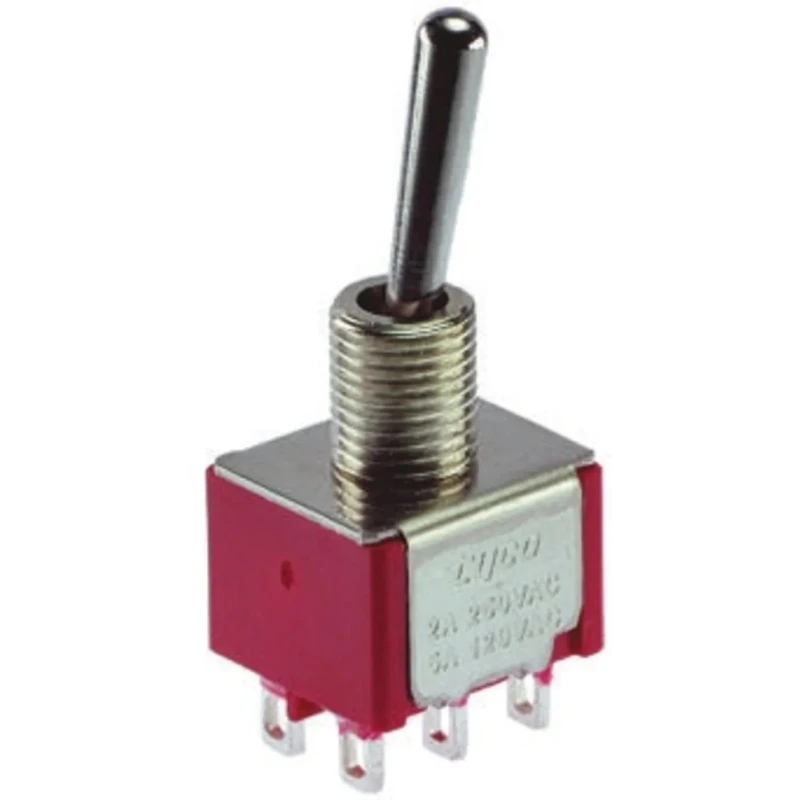

TE Connectivity Panel Mount Toggle Switch, On-On-On, DPDT, Solder Terminal, 20 V dc, 20 V ac 3-1825139-8
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 0.35in |
| Length | 0.5in |
| Width | 0.45in |
| Mount Type | Panel |
| Series | Gemini A |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-On-On |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 6.35 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Switch Operation | On-On-On |
| Actuator Length | 10.41mm |
| Contact DC Voltage | 20V dc |
| Switch Contact Current | 400mA |
| Contact AC Voltage | 20V ac |
| Actuator Material | Phenolic |
Key Features
- Designed for panel mounting with a 6.35 mm cutout size.
- Double Pole Double Throw (DPDT) contact configuration.
- On-On-On switch operation enabling multi-position control.
- Solder terminal type with epoxy sealed terminals for secure connection.
- Phenolic actuator material for durability and heat resistance.
- Operating temperature range from -30°C to 85°C.
- Maximum switch contact current of 400 mA.
- Compact dimensions of 0.5 in length, 0.45 in width, and 0.35 in height.
Product Description
TE Connectivity 3-1825139-8 Panel Mount Toggle Switch is a robust electrical component featuring a Double Pole Double Throw (DPDT) contact configuration with an On-On-On switch operation. Rated for 20 V dc and 20 V ac, and a contact current of 400 mA, it is suitable for various industrial, automation, and electrical control applications.
This toggle switch mounts securely on panels and requires a 6.35 mm cutout. It has solder terminals with epoxy sealed connections ensuring durability and reliability. The stainless steel frame combined with brass tin plated solder support enhances mechanical strength and corrosion resistance.
The switch actuator is made from phenolic material with a length of 10.41 mm, designed for operational efficiency within an ambient temperature range from -30°C to 85°C. The compact physical dimensions (0.5 in length, 0.45 in width, 0.35 in height) permit integration into confined control enclosures.
Manufactured under the Gemini A series, this switch features a break-before-make contact timing mechanism, suitable for precise switching operations required in industrial automation and control systems. It complies with RoHS environmental standards ensuring hazardous substances are minimized.
Panel mount design with standardized cutout size of 6.35 mm. Double Pole Double Throw (DPDT) contact configuration. On-On-On switch operation for multi-position control. Solder terminal type with epoxy sealed terminals for secure mounting.
Phenolic actuator material providing durability and thermal resistance. Operational temperature from -30°C up to 85°C. Compact size allows easy integration in electrical panels. Gemini A series switch with break-before-make timing.
Compliant with RoHS environmental directives.
This toggle switch is ideal for use in industrial manufacturing, automation controls, electrical panels, and other commercial electrical equipment requiring reliable switching solutions. Its precise switching capability and robust construction support high-quality performance under diverse operating conditions.
Explore a wide selection of Toggle Switches and related electrical components on EnvMart for your industrial and commercial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Double Pole Double Throw (DPDT) contact configuration, allowing for versatile switching options.
The maximum operating temperature for this toggle switch is 85°C, making it suitable for a range of environments.
It requires a panel cutout size of 6.35 mm for proper mounting.
The switch operation type is On-On-On, which allows for multi-position control.
This toggle switch can handle a maximum contact current of 400 mA.
The actuator is made from phenolic material, providing durability and heat resistance.
The dimensions are 0.5 inches in length, 0.45 inches in width, and 0.35 inches in height.
It features solder terminals with epoxy sealed connections for secure mounting.
Yes, it complies with RoHS environmental standards, ensuring hazardous substances are minimized.
The minimum operating temperature for this model is -30°C, suitable for cold environments.
This toggle switch is part of the Gemini A series, known for its robust design.
It is suitable for various industrial, automation, and electrical control applications requiring reliable switching solutions.
