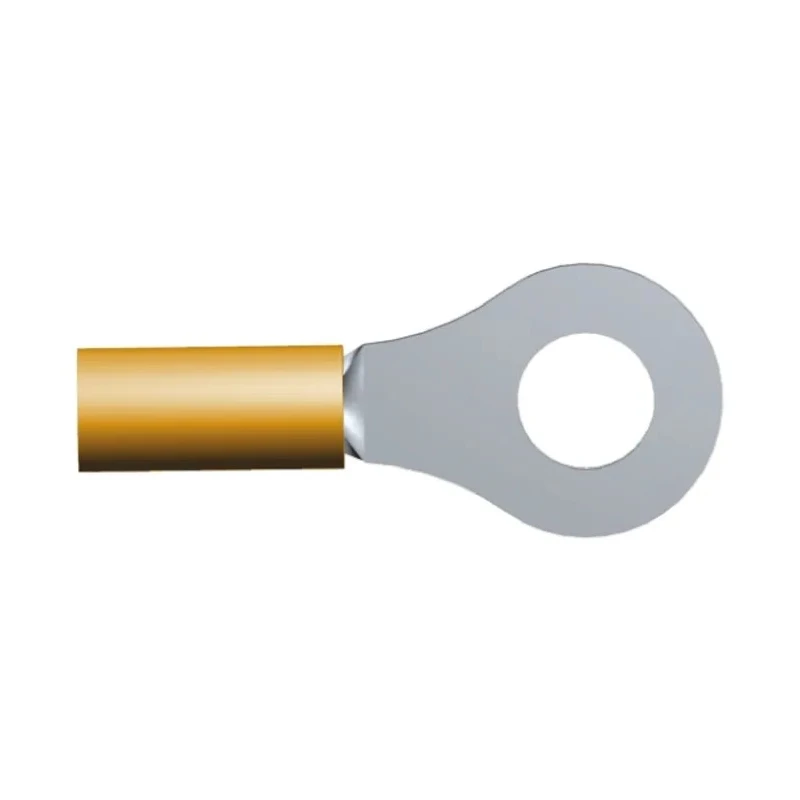

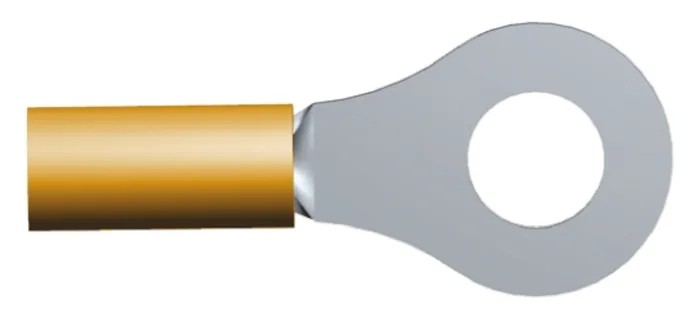

TE Connectivity DG STRATO-THERM Insulated Ring Terminal M5 Stud Size 16 AWG 14 AWG Wire Size 322338
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Orange |
| THICKNESS | 0.79mm |
| Model | 322338 |
| Insulation | Insulated |
| Overall Length | 20.6mm |
| Contact Material | Nickel |
| Series | DG STRATO-THERM |
| Maximum Operating Temperature | 649°C |
| Standards/Approvals | RoHS |
| Minimum Wire Size mm² | 1mm² |
| Maximum Wire Size mm² | 2.6mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Stud Size | M5 |
Key Features
- High temperature resistance up to 649°C for demanding environments.
- Constructed from solid nickel contact material for durability and conductivity.
- Insulated with color-coded orange sleeve for easy identification.
- Compatible with wire sizes ranging from 16 AWG (1mm²) to 14 AWG (2.6mm²).
- Ring terminal features an overall length of 20.6 mm and 0.79 mm thickness.
- Designed to maximize electrical contact area via serrated barrel crimping.
- Meets RoHS standards ensuring compliance with environmental regulations.
- Suitable for industrial, electronic, power connection, and wiring applications requiring high heat endurance.
Product Description
TE Connectivity 322338 DG STRATO-THERM Insulated Ring Terminal features insulation and high-temperature performance up to 649°C, optimized for electrical and industrial wiring applications with M5 stud size compatibility. It supports wire sizes from 16 AWG (1mm²) to 14 AWG (2.6mm²) and is constructed from solid nickel for enhanced conductivity and durability.
This ring terminal is designed with a color-coded orange insulation sleeve, facilitating quick wire identification and installation. Its overall length is 20.6 mm with a thickness of 0.79 mm, ensuring a robust and reliable connection in harsh environments.
The DIAMOND GRIP STRATO-THERM terminal series utilizes a serrated barrel crimp technique which forces the wire into dimples or serrations inside the barrel, maximizing electrical contact area and mechanical retention after crimping. This design is ideal for both stranded and solid conductors.
Compliant with RoHS standards, this insulated ring terminal is suitable for use in industrial machinery, electronic components, power connectors, and wire terminals where high temperature resistance is critical.
High temperature resistance up to 649°C. Solid nickel contact material ensures durability and conductivity. Orange color-coded insulation for easy wire identification. Compatible with 16 AWG to 14 AWG (1mm² to 2.6mm²) wire sizes.
Overall length 20.6 mm and thickness 0.79 mm. Optimized crimp design for maximum electrical contact area. Meets RoHS environmental compliance standards. Suitable for industrial and electronic power connections.
Available at EnvMart for industrial, laboratory, manufacturing, and electrical wiring applications requiring high quality insulated Ring Terminals. Browse our range for more TE Connectivity power connector solutions and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this ring terminal is 649°C, making it suitable for high-temperature applications.
It is compatible with wire sizes ranging from 16 AWG (1mm²) to 14 AWG (2.6mm²).
The overall length of this insulated ring terminal is 20.6 mm, and it has a thickness of 0.79 mm.
The contact material is solid nickel, which ensures durability and conductivity.
It features a color-coded orange insulation sleeve, allowing for easy identification during installation.
This model uses a serrated barrel crimp technique, which maximizes electrical contact area and mechanical retention after crimping.
Yes, it meets RoHS standards, ensuring compliance with environmental regulations.
It is suitable for industrial machinery, electronic components, power connectors, and wiring applications requiring high heat endurance.
The stud size for this ring terminal is M5.
The country of origin for this ring terminal is India.
This ring terminal belongs to the DG STRATO-THERM series.
The insulation of this ring terminal is orange.
