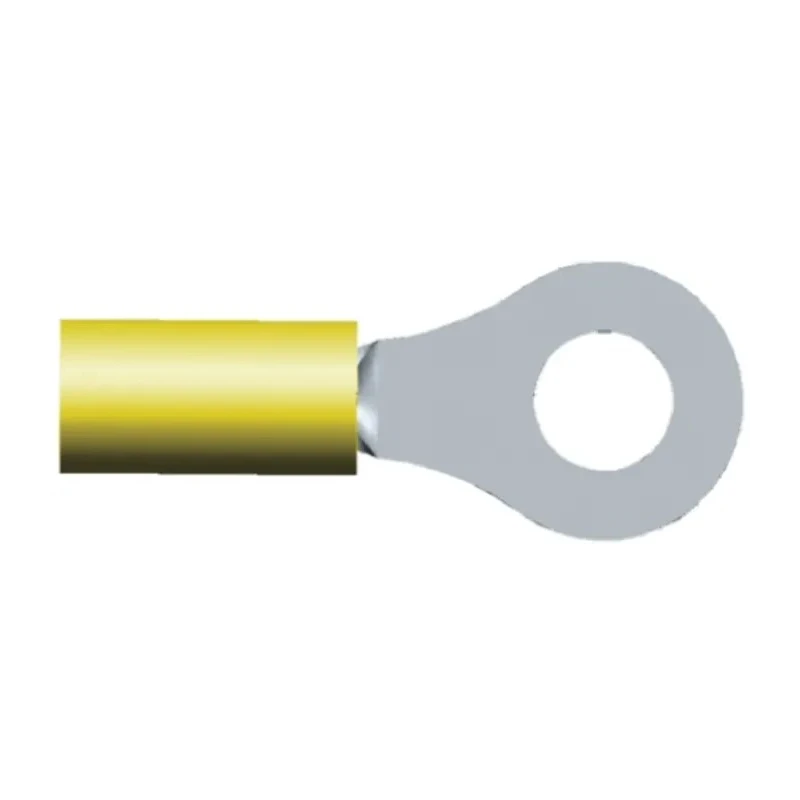

TE Connectivity PIDG Insulated Ring Terminal M5 Stud Size 12 AWG 10 AWG Wire Size Yellow 130679
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Yellow |
| THICKNESS | 0.79mm |
| Model | 130679 |
| Insulation | Insulated |
| Overall Length | 40.5mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 3mm² |
| Maximum Wire Size mm² | 6mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 10AWG |
| Inner Ring Diameter | 5.2mm |
| Stud Size | M5 |
Key Features
- Constructed from high conductivity copper body ensuring excellent electrical performance.
- Features a yellow nylon insulated sleeve for easy wire size identification and insulation protection.
- Includes serrations inside the wire barrel for maximum contact and tensile strength after crimping.
- Funnelled entry design prevents turned back wire strands and allows fast wire insertion.
- Suitable for wiring in control instruments, lighting, power supplies, panel boxes, and automotive applications.
- Meets RoHS standards ensuring compliance to environmental safety.
- Compatible with wires sized between 12 AWG (3 mm²) and 10 AWG (6 mm²).
- Designed for use in demanding environments including aerospace and transportation sectors.
Product Description
TE Connectivity 130679 PIDG Insulated Ring Terminal is engineered to provide secure and uniform electrical connections for wires with a stud size of M5 and wire sizes ranging from 12 AWG to 10 AWG. This ring terminal features a high conductivity copper body that ensures optimal electrical flow and mechanical strength essential in industrial and commercial electrical systems.
The insulation is made from durable yellow nylon, which not only insulates the connection but also enables quick identification of wire size during installation and maintenance. The wire barrel is precision formed with internal serrations to enhance contact and tensile strength after crimping, providing a reliable and robust connection that withstands vibration and mechanical stress.
The terminal's funnelled entry design simplifies wire insertion by preventing wire strands from turning back, which improves production efficiency during assembly. The copper sleeve around the wire barrel aids in improved insulation support, reducing risks of wire fraying, which enhances overall durability and safety of wiring assemblies.
This PIDG ring terminal series meets RoHS standards, demonstrating commitment to environmentally responsible manufacturing. Rated for a maximum operating temperature of 105°C, these terminals are suitable for a diversity of demanding applications, including instruments and control systems, lighting, power supply wiring, panel box assembly, automotive, aerospace, transportation equipment, and lifting machinery.
High conductivity copper body for excellent electrical connection. Yellow nylon insulation for easy wire size identification and protection. Serrated wire barrel ensures maximum contact and tensile strength. Funnelled wire entry allows fast and secure wire insertion.
Durable copper sleeve prevents wire fraying and enhances insulation support. Compliance with RoHS environmental standards. Suitable for wire sizes 12 AWG to 10 AWG (3 mm² to 6 mm²). Maximum operating temperature rating of 105°C.
These TE Connectivity PIDG insulated ring terminals provide a versatile, reliable solution for industrial wiring challenges, enhancing performance and safety in electronics, power connectors, and related electrical applications. Explore more Ring Terminals on EnvMart for additional options suited to your specific wiring needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is compatible with wire sizes ranging from 12 AWG (3 mm²) to 10 AWG (6 mm²).
The maximum operating temperature rating for this terminal is 105°C.
It features a high conductivity copper body and a yellow nylon insulation for protection and identification.
The stud size for this terminal is M5.
The funnelled entry design prevents turned back wire strands, allowing for fast and secure wire insertion.
The inner ring diameter is 5.2 mm.
This terminal meets RoHS standards, ensuring compliance with environmental safety regulations.
The overall length of this terminal is 40.5 mm.
The thickness of the terminal is 0.79 mm.
It is suitable for various applications including control instruments, lighting, power supplies, panel boxes, and automotive uses.
The wire barrel includes serrations that provide maximum contact and tensile strength after crimping.
The country of origin for this terminal is India.
