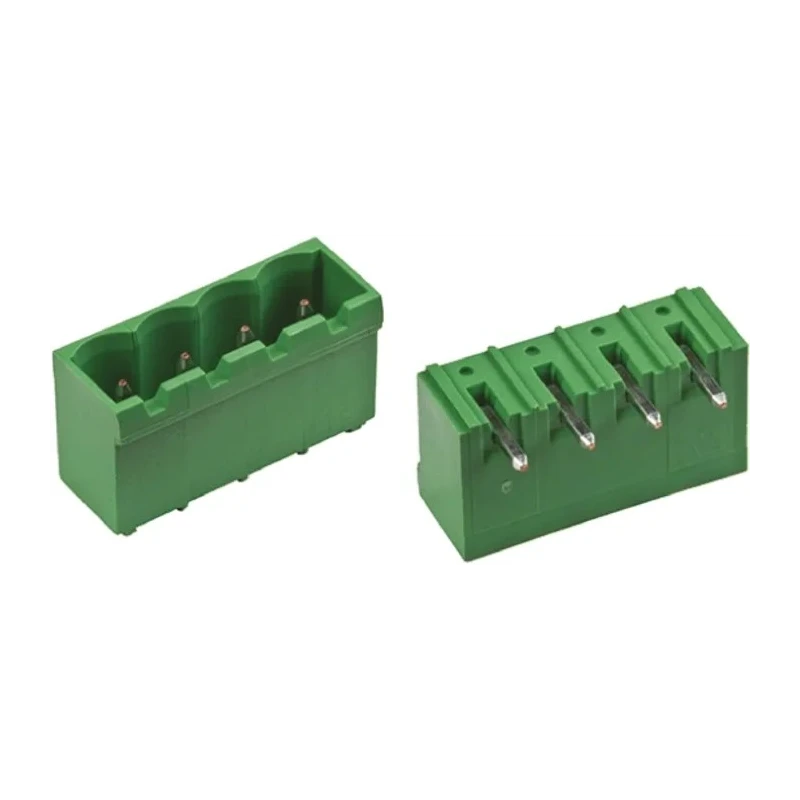

TE Connectivity Buchanan Series Pluggable Terminal Block 4-Contact, 5.08 mm Pitch, 1 Row, 796638-4

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Buchanan Series Pluggable Terminal Block 4-Contact, 5.08 mm Pitch, 1 Row, 796638-4

Name: TE Connectivity Buchanan Series Pluggable Terminal Block 4-Contact, 5.08 mm Pitch, 1 Row, 796638-4
Brand: TE Connectivity
SKU: 217895
Price: 2.95 USD
Availability: InStock



Category Pluggable Terminal Block Brand TE Connectivity Condition New

Specifications

Country of Origin	Italy
Voltage	300V
Brand	TE Connectivity
Colour	Green
Orientation	Right Angle
Current	15A
Model	796638-4
Housing Material	Polyamide
Series	Buchanan
Number of Rows	1
Pitch	5.08mm
Number of Contacts	4
Connector Gender	Female
Minimum Wire Size mm²	0.05mm²
Maximum Wire Size mm²	3mm²
Minimum Wire Size AWG	12AWG
Maximum Wire Size AWG	30AWG
Wire Connection Method	Solder

Key Features

The terminal block supports a maximum current of 15A for reliable power conduction.
Compatible with wire sizes ranging from 0.05 mm² to 3 mm² and AWG 12 to AWG 30.
The housing is made from durable green polyamide material ensuring robustness.
Features right-angle orientation and female connector gender for versatile PCB applications.
Designed for solder wire connection method to ensure secure contacts.
Operates at a maximum voltage rating of 300V suitable for various electronic assemblies.
Manufactured in Italy maintaining high quality standards.
Suitable for industrial, electronic components, power connector, and PCB terminal block applications.

Product Description

TE Connectivity 796638-4 Pluggable Terminal Block is a single-row, 4-contact terminal block with a 5.08 mm pitch designed for PCB mounting and reliable electronic connections.

Constructed from high-quality green polyamide material, this right-angle female connector supports solder wire connection method, accommodating wire sizes from 0.05 mm² up to 3 mm² (AWG 12 to AWG 30). It is rated for a current of 15A and a voltage of up to 300V, ensuring robust performance in demanding circuit environments.

This terminal block assembly provides a compact and efficient solution for power and signal distribution in electronic devices, industrial control panels, HVAC systems, and manufacturing equipment. The right angle orientation helps in efficient PCB layout designs by optimizing space and simplifying wiring.

The product is part of the Buchanan series, known for ease of use and reliable operation. It is manufactured in Italy adhering to stringent quality and durability standards. Although it has no specific standards or approvals listed, its build quality aligns with industrial expectations.

The terminal block supports up to 15A current rating. Accommodates a wire range from 0.05 mm² to 3 mm² securely with solder connection. Right angle orientation for versatile PCB mounting. Housing material is green polyamide for mechanical strength.

Operates reliably up to 300V voltage rating. Female connector gender type for compatibility with corresponding connectors. Manufactured in Italy ensuring superior quality.

This TE Connectivity Buchanan Series Pluggable Terminal Block is ideal for creating reliable electrical connections in industrial, laboratory, electronic component manufacturing, and construction applications. It enables efficient circuit assembly and maintenance with its modular, pluggable design.
