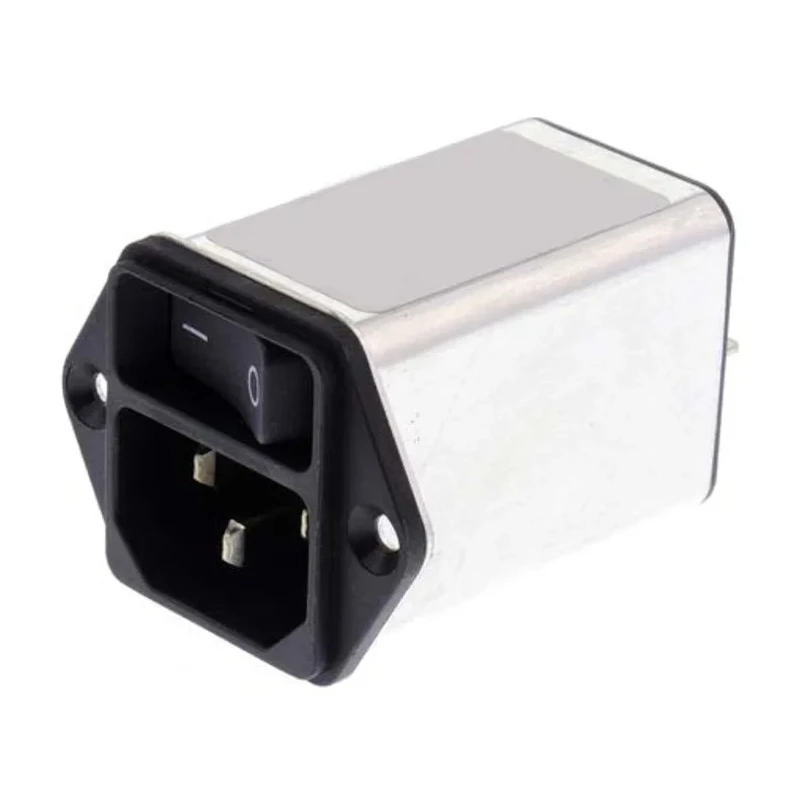

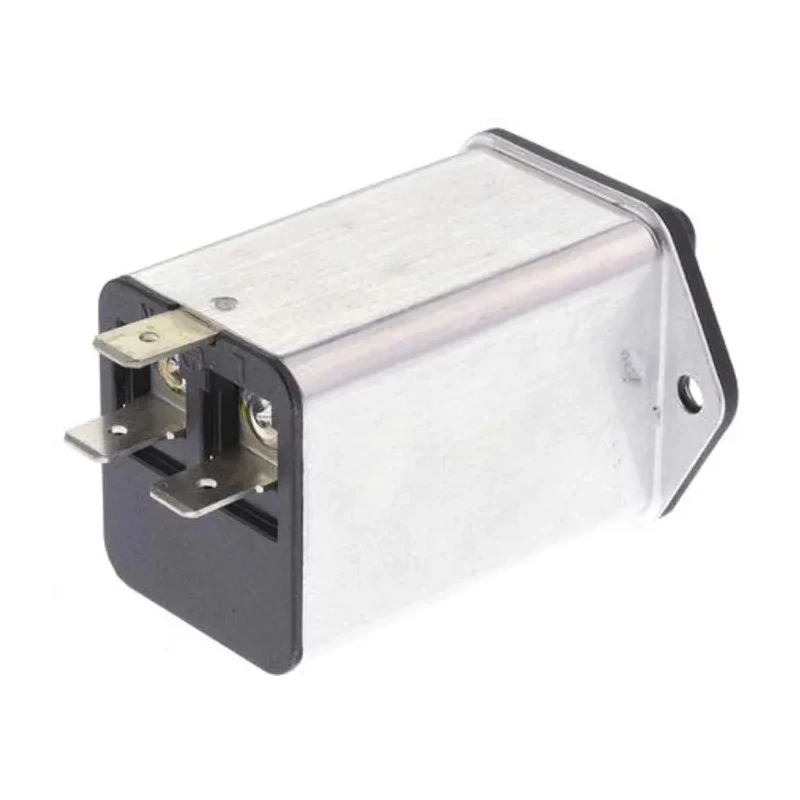

Schurter DC12 Series 250V AC 2A Panel Mount IEC Connector Male Quick Connect DC12.2102.001

Free Delivery in India | Lowest Global Shipping Charges

Schurter DC12 Series 250V AC 2A Panel Mount IEC Connector Male Quick Connect DC12.2102.001

Name: Schurter DC12 Series 250V AC 2A Panel Mount IEC Connector Male Quick Connect DC12.2102.001
Brand: Schurter
SKU: 191783
Price: 33.8 USD
Availability: InStock



Category IEC Connector Brand Schurter Condition New

Specifications

Country of Origin	India
Voltage	250V ac
Brand	Schurter
Current	2A
Height	34.4mm
Model	DC12.2102.001
Filter Type	Line
Depth	60.5mm
Width	44.3mm
Mount Type	Panel Mount
Operating Frequency	60Hz
Series	DC12
Termination Type	Quick Connect
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Contact Gender	Male
Connector Gender	Male
IEC Connector Type	C14

Key Features

Compact DC12 series with panel mount design for easy installation.
Current rating up to 2 Amperes at 250V AC for reliable power connectivity.
Male IEC C14 connector type with quick connect termination.
Operating frequency of 60Hz with temperature range from -25°C to 85°C.
Durable with excellent shielding and multiple mounting options including screw and snap-in.
Suitable for appliance inlet protection and line filter applications in standard and medical equipment.
Quick connect terminals sized 6.3 x 0.8 mm for fast assembly.
Compact design with dimensions 44.3mm width, 34.4mm height, and 60.5mm depth.

Product Description

Schurter DC12.2102.001 is a high-performance IEC connector from the DC12 series, designed for panel mounting with a male IEC C14 connector type. It is rated for 250V AC voltage and 2A current, suitable for industrial, electronic, and medical device applications requiring reliable power entry and filtering solutions.

This connector offers multiple mounting options including screw-on from front or rear, as well as snap-in, for flexible assembly processes. The compact design, measuring 44.3mm in width, 34.4mm in height, and 60.5mm in depth, ensures space-saving installation while maintaining excellent shielding to reduce EMI interference.

The DC12.2102.001 features 6.3 x 0.8 mm quick connect terminals facilitating rapid and secure wiring. It supports operating frequencies of 60Hz and functions reliably within temperatures ranging from -25°C to 85°C. The connector includes a line switch option, available with illuminated and non-illuminated styles, enhancing operational control for high inrush current scenarios.

Applications include appliance inlet protection for Class I and II equipment, line filtering in standard and medical-grade electronics, and industrial power connectivity requiring compact and robust components. The fuse drawer accessory is sold separately and compatible with Ø5x20mm fuses for added protection.

Certified for use in compliance with IEC/UL 60950 standards, the medical versions meet IEC/UL 60601-1 requirements, ensuring safety and performance in sensitive environments. Compact DC12 series panel mount design. Rated 250V AC, 2A current for stable connections.

Male IEC C14 connector with quick connect terminals. Wide operating temperature range from -25°C to 85°C. Multiple mounting options for assembly efficiency. Line switch with illuminated and non-illuminated options. Excellent EMI shielding for reliable performance.

Compliance with IEC/UL safety standards. Suitable for industrial, electronic, and medical equipment. Fuse drawer sold separately for additional protection. Explore the full range of IEC Connectors and power entry modules at EnvMart for high quality and reliable industrial electronic components.
