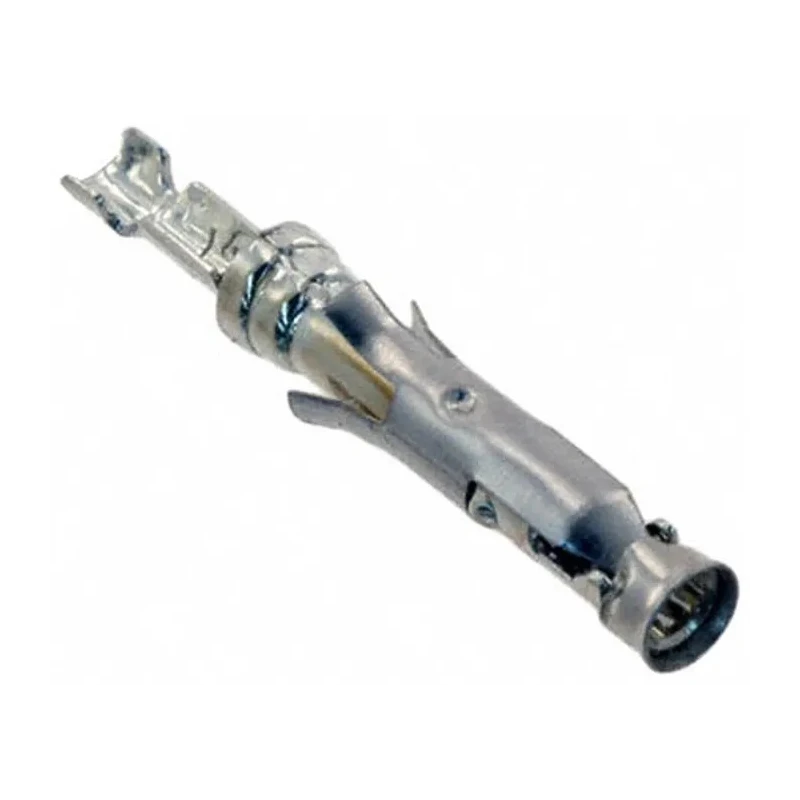

TE Connectivity Type III Series Female Crimp Terminal, 13A, 26 AWG Min Crimp, 24 AWG Max, 13.46mm Length 1-66109-7

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Type III Series Female Crimp Terminal, 13A, 26 AWG Min Crimp, 24 AWG Max, 13.46mm Length 1-66109-7

Name: TE Connectivity Type III Series Female Crimp Terminal, 13A, 26 AWG Min Crimp, 24 AWG Max, 13.46mm Length 1-66109-7
Brand: TE Connectivity
SKU: 217877
Price: 1.62 USD
Availability: InStock



Category Crimp Contact Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Current	13A
Length	13.46mm
Gender	Female
Contact Material	Brass
Series	Type III
Termination Type	Crimp
Maximum Operating Temperature	90°C
Minimum Operating Temperature	-55°C
For Use With	G Series and M Series Connector Housings, CPC
Contact Plating	Tin
Minimum Wire Size mm²	0.1mm²
Maximum Wire Size mm²	0.2mm²
Minimum Wire Size AWG	26AWG
Maximum Wire Size AWG	24AWG

Key Features

Designed for use with G Series and M Series Connector Housings and CPC.
Constructed with brass contact material for reliable conductivity.
Contact is plated with tin to prevent corrosion.
Operates safely from -55°C to 90°C temperature range.
Features a crimp termination type for secure wire connection.
Female contact gender designed for reliable mate with male contacts.
Complies with no specific formal standards or approvals.
Ideal for electronic components and power connector applications.

Product Description

TE Connectivity 1-66109-7 Type III Series Female Crimp Terminal is engineered for high performance in electronic and power connector applications, operating at currents up to 13 amperes. This female crimp terminal is suitable for 26 AWG minimum and 24 AWG maximum wire sizes, making it versatile for various wiring requirements in industrial and commercial electronics.

Constructed from brass with tin plating, the terminal offers excellent electrical conductivity and corrosion resistance, ensuring durability and reliable long-term operation. The crimp termination type secures the wire firmly, providing a stable and consistent electrical connection.

Measuring 13.46 mm in length, this series 1 contact is optimized for use with TE Connectivity's G Series and M Series connector housings and CPC type connectors. The terminal supports operating temperatures from -55°C to 90°C, making it suitable for demanding environments.

This product does not feature specific certifications or approvals but is widely used in various electronic component assemblies, power connectors, and PCB wire harness applications. Its female contact gender is designed for mating with matching male contacts to ensure secure electrical connectivity.

Designed for use with G Series and M Series Connector Housings and CPC. Constructed with brass contact material for reliable conductivity. Contact is plated with tin to prevent corrosion. Operates safely from -55°C to 90°C temperature range.

Features a crimp termination type for secure wire connection. Length of the terminal is 13.46 mm, suitable for precise PCB applications. Female contact gender designed for reliable mate with male contacts. Complies with no specific formal standards or approvals.

Ideal for electronic components and power connector applications. Supports efficient assembly and production processes.

TE Connectivity's Type III Series Female Crimp Terminals are integral to ensuring secure, reliable connections in a wide range of industrial, laboratory, and manufacturing applications. Their compatibility with multiple connector housings supports flexibility in design and assembly lines.
