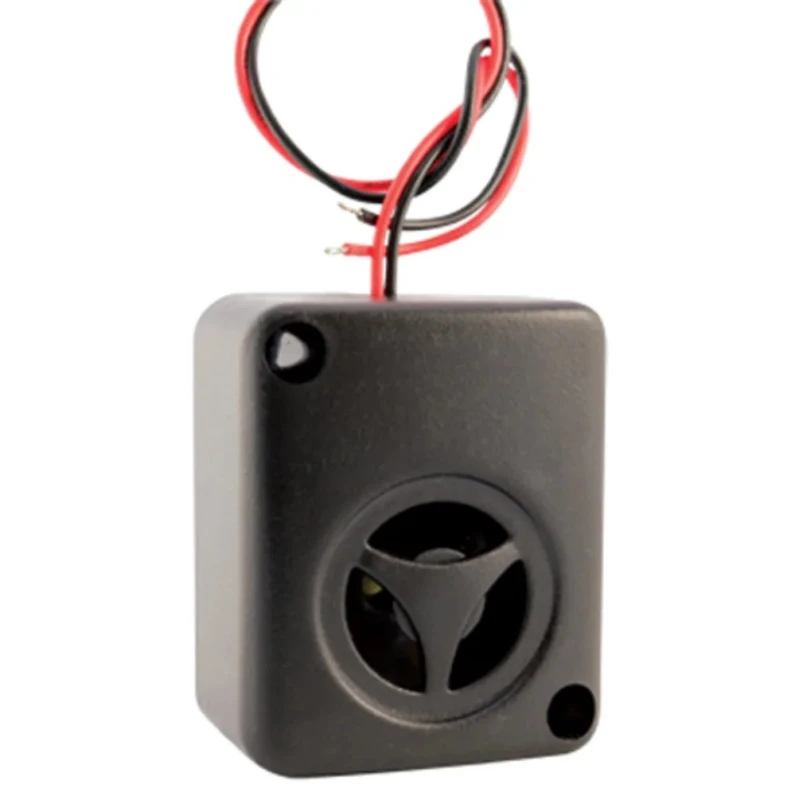

RS PRO 102 dB Wall Mount Siren Internal Drive Piezo Buzzer Miniature Speaker 6 V dc Min 14 V dc Max 47mm x 22.8mm x 136-7914

The RS PRO 136-7914 Wall Mount Siren Piezo Buzzer is an essential component designed for providing a loud audible signal with a sound output level of 102 dB. It features an internal drive circuit that simplifies installation and usage in various industrial, commercial, and electronic systems.

The siren operates effectively within a supply voltage range of 6 V dc minimum to 14 V dc maximum, delivering a siren tone with frequencies ranging between 2000 Hz and 3.5 kHz. This makes it suitable for alerting and signaling purposes in multiple sectors such as manufacturing, HVAC systems, water treatment plants, and safety equipment.

Constructed with a robust ABS plastic housing, the buzzer is designed for wall mounting using the integral screw holes and includes 120 mm wire leads for convenient electrical connections. The device functions reliably within a broad temperature range of -10°C to 60°C, ensuring durability in varying environmental conditions.

Its compact design with dimensions of 47 mm in length, 22.8 mm in height, and 39 mm in depth allows integration into constrained spaces. Additionally, the siren complies with RoHS standards, reflecting its environmental friendliness and safe usage in diverse applications.

The siren provides a loud 102 dB sound level with an internal driving circuit for improved performance. It is designed for wall mounting with easy-to-use screw holes and fitted with 120 mm wire leads. The housing made from ABS plastic ensures solid protection and extended lifespan.

Suitable for operations within temperatures ranging from -10°C to 60°C, covering many industrial environments. Functions over a broad voltage range of 6 V dc to 14 V dc, enhancing compatibility. Provides siren tone at frequencies between 2000 Hz and 3.5 kHz for effective alerting.

Draws a supply current of 70 mA, balancing loudness and energy efficiency. Compact size promotes easy installation in limited spaces. Environmental compliance is assured through RoHS certification.

This Wall Mount Siren by RS PRO is ideal for integration into electronic components assemblies and safety systems within industrial and commercial facilities. For more industrial-grade electronic components, explore the RS PRO range and other piezo buzzer solutions on EnvMart.
