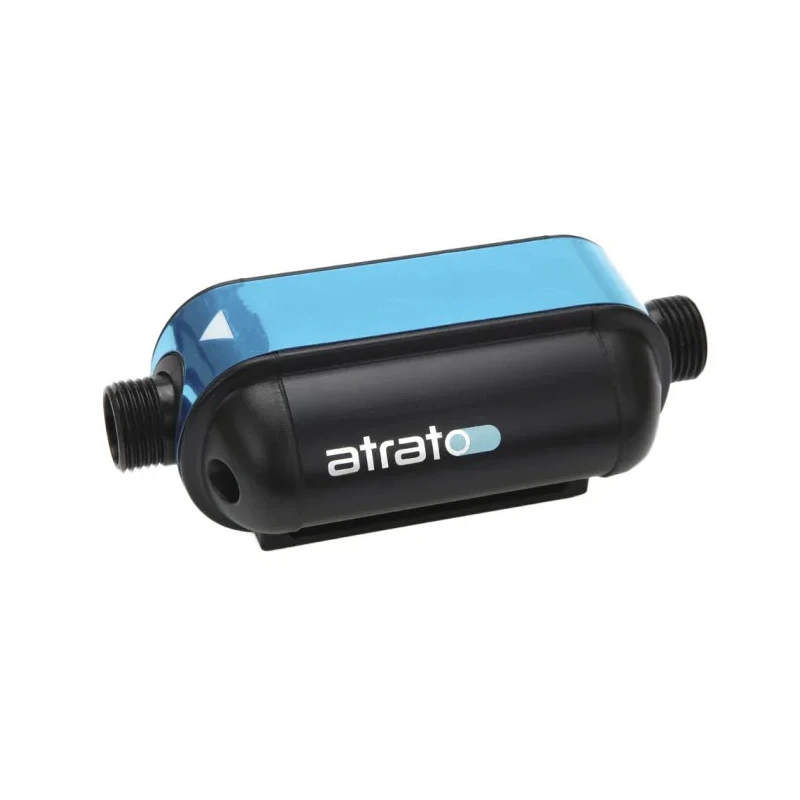

Atrato Atrato Series Ultrasonic Flow Meter 500ml/min, 3/8 in and 1/2 in BSP NPT Threads 110°C 710-V10-D-RS

Atrato 710-V10-D-RS ultrasonic flow meter offers precise flow measurement of liquids in the range of 2ml/min to 500ml/min.

Its construction utilizes premium materials including borosilicate glass for the sensing tube, robust 316 stainless steel body, and Polyetheretherketone (PEEK) end fittings rated for pressures up to 10 bar and temperatures up to 110°C. The flow meter supports 3/8 in and 1/2 in BSP and NPT threaded connections, providing installation flexibility.

Using patented ultrasonic 'time of flight' technology, the meter delivers accurate readings over an extensive measurement range with a dynamic ratio of 200:1. It includes USB communication capabilities, allowing connection to computers for flow rate monitoring and adjustment of operating parameters like pulse resolution and unit settings.

The design incorporates no moving parts, ensuring high reliability and minimal maintenance. It provides both display and analogue output for integration with control systems and active flow alarms.

Measures flow rates from 2ml/min to 500ml/min with high accuracy. Supports 3/8 in and 1/2 in BSP and NPT connection thread standards. Constructed using borosilicate glass, 316 stainless steel, and PEEK materials. Maximum operating temperature rated at 110°C.

Employs patented ultrasonic 'time of flight' technology for flow measurement. Features quick response with no moving parts for durability. Includes USB interface for monitoring and parameter modification. End fittings are 1/2in BSP PEEK rated for 10 bar pressure.

Applicable for industrial, laboratory, drink dispensing, and semiconductor environments. Explore our full range of Flow Meters and sensors at EnvMart to find solutions tailored to your industrial and laboratory needs.
