SICK Series Safety Light Curtain Receiver, Sender Type 2, 24V DC, 1200mm Protective Height, 8m Protective Width, 34mm C2MT

SICK C2MT Series Safety Light Curtain Receiver and Sender C2MT combines compact design and high functionality, providing industrial safety with a Type 2 classification. This system operates at 24V DC, protecting an area with a height of 1200mm and width coverage up to 8 meters. The device offers a beam resolution of 34mm, facilitating precise and reliable detection for safeguarding machinery and personnel.

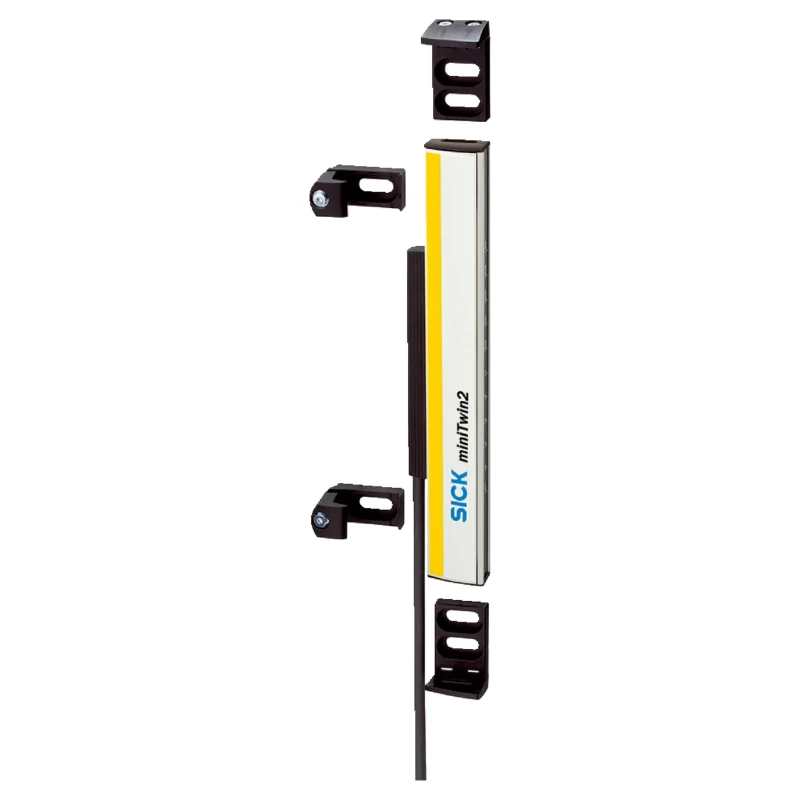

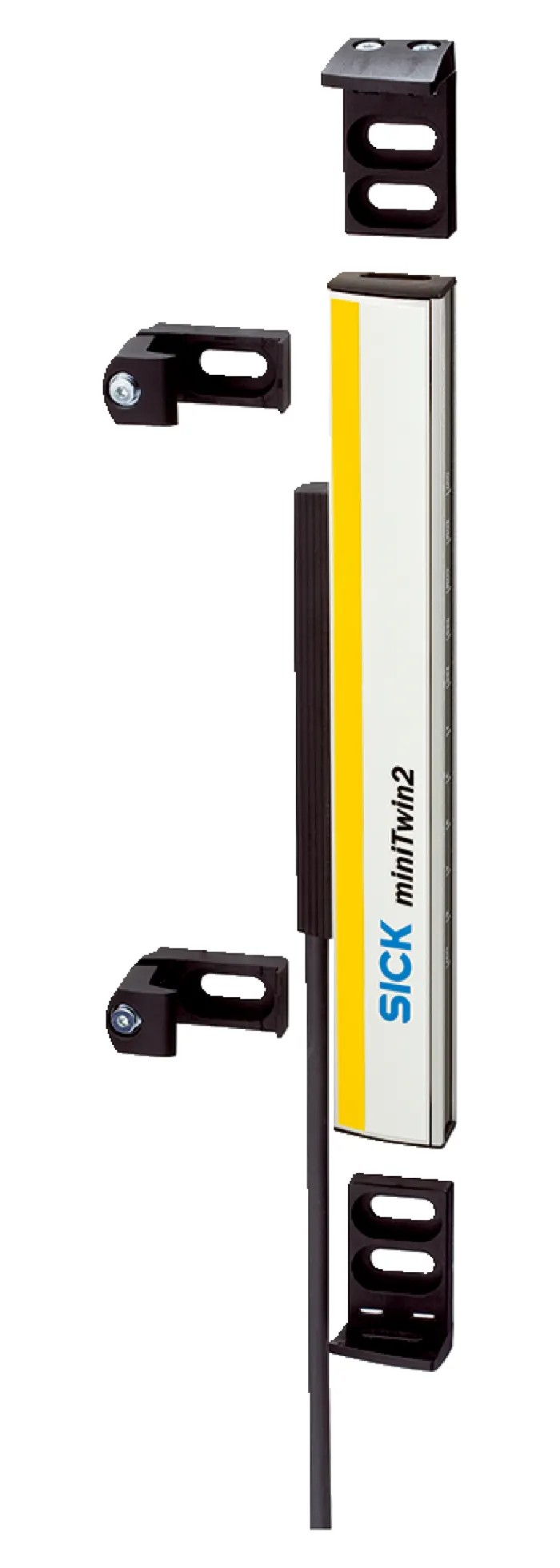

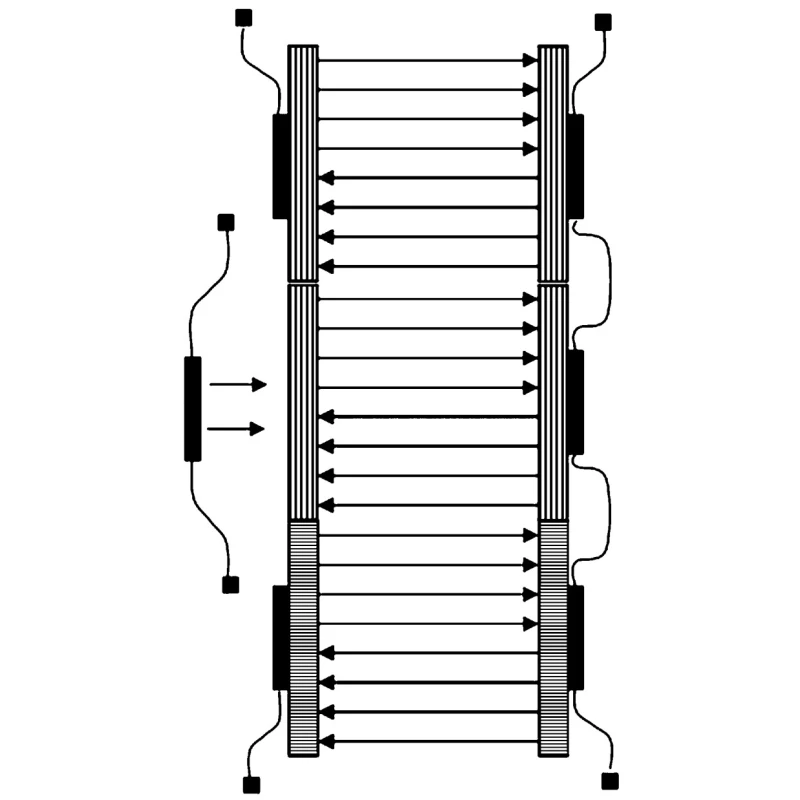

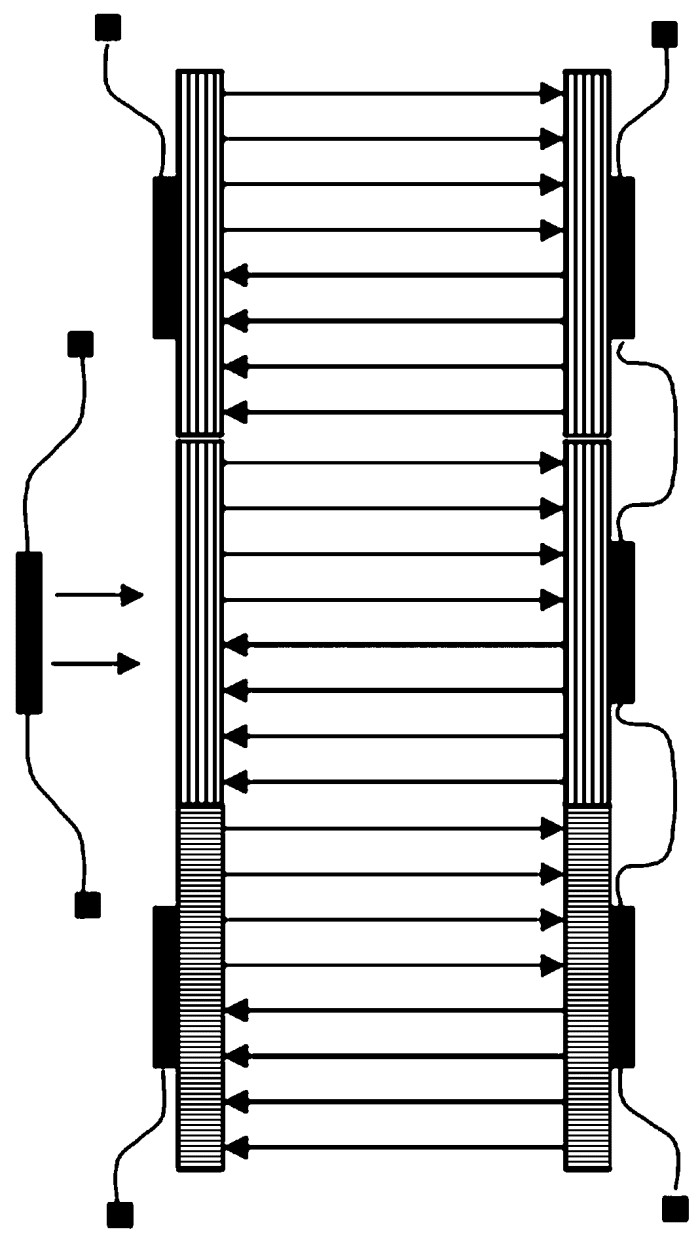

The light curtain can be deployed standalone or cascaded up to three units to cover larger or corner areas without creating blind zones. Its compact dimensions - 1.2m height, 32mm length, and 15mm width - allow flexible mounting in various orientations utilizing specialized brackets such as O-Fix, C-Fix, and L-Fix.

Equipped with a 5-pin M12 terminal, the C2MT ensures standardized and secure connections. LED indicators along the device length aid in rapid alignment, status monitoring, and diagnostics, simplifying setup and maintenance. The system supports intelligent configuration without the need for additional software.

Robust IP65 rated housing protects the equipment against dust and water ingress, ensuring durability in industrial environments. The C2MT complies with key safety and quality standards, including CE, cULus, IEC 61496-1, ISO 13849, IEC 61508, and ROHS, making it suitable for global applications.

This light curtain is compatible with UE410 flex classic controllers and UE12 safety relays allowing integration into existing safety control architectures. Typical applications include robotics, packaging machines, special purpose equipment, injection molding machines, transfer lines, automated warehouses, textile machinery, electronic component assembly, and bottling and filling lines.

The light curtain offers a beam resolution of 34mm ensuring precise detection. Designed for a maximum protective width of 8 meters and scanning distances from 0 to 8 meters. Compact size with dimensions of 1.2m height, 32mm length, and 15mm width for flexible mounting.

Equipped with a 5-pin M12 terminal for reliable connection and easy integration. Features LED guided startup indicators and supports cascading up to three units without blind zones. Compatible with UE410 flex classic controllers and UE12 safety relays for enhanced control.

IP65 rated enclosure ensures robust protection against dust and water ingress. Certified to multiple international standards including CE, cULus, IEC, and RoHS. Ideal for robotics, packaging machinery, injection molding, and automated warehouses.

For complete system setup, select complementary sender or receiver components as needed. Explore our Safety Light Curtain solutions for reliable, advanced industrial safety systems.
