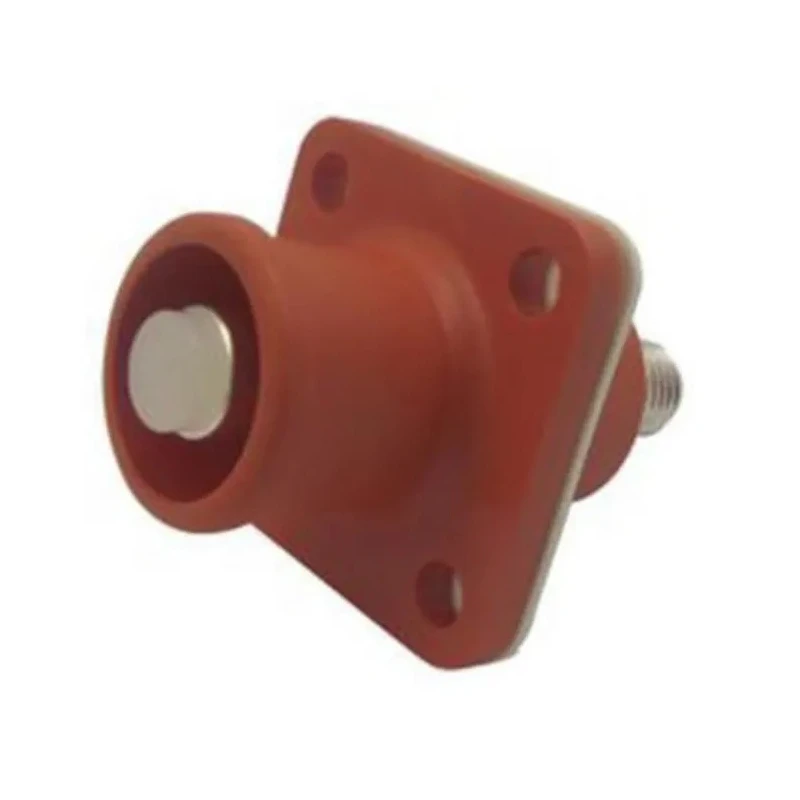

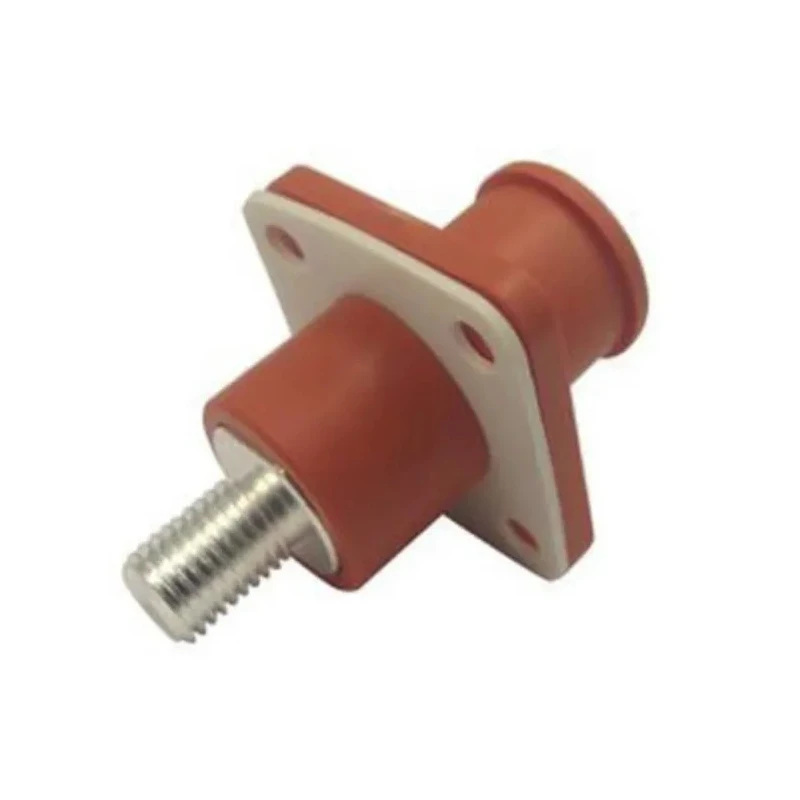

Amphenol Industrial SURLOK PLUS RADSOK EV Connector Female 200A, 1000V, Panel Mount, IP67 SLPIRBTPSR1 / C10-731950-221

Amphenol Industrial SLPIRBTPSR1 / C10-731950-221 SURLOK PLUS RADSOK EV Connector Female 200A is engineered to provide high-performance and reliable connections in electric vehicle and industrial applications. It is designed as a compact, quick mating compression lug with a panel mount flange, ensuring robust and environmentally sealed installation.

The connector is rated for 200 amps and can operate up to 1000 volts, making it suitable for demanding power and signal transmission requirements in EV/HEV systems and rail mass transit applications. Featuring copper alloy contacts with R4 Radsock technology, it guarantees high tensile strength connections with superior conductivity.

The housing is made from thermoplastic to provide mechanical strength and resistance against environmental factors. The connector supports wire sizes of 35 and 50mm² and incorporates a pin diameter of 8mm. It is designed with one row and one contact, having a screw termination type and straight orientation for secure and straightforward wiring.

With an IP67 rating, this connector withstands dust and water ingress, ensuring performance in challenging environments. The operating temperature range is from -40°C to 125°C, and it complies with UL 94-V0 flammability standards for safety assurance.

Key features include touch-proof and spring locking mechanisms and a keyed design preventing mismating. The red color enhances easy identification. This connector is part of Amphenol's Better World program with a renewable energy solution claim, emphasizing sustainability in material selection and design.

200A current rating suitable for high power applications. 1000V operating voltage for electric vehicle systems and industrial use. Copper alloy contacts coupled with thermoplastic housing for durability. Environmental protection with IP67 ingress rating.

Screw termination and straight orientation for ease of installation. Wide operating temperature range from -40°C to 125°C. UL 94-V0 flammability rated for safety compliance. Compact panel mount design with 8mm pin diameter.

Applications include rail transit, battery management, heavy equipment, and medical devices.

Amphenol Industrial’s SURLOK PLUS RADSOK series connectors deliver reliable, high-performance solutions essential for electric vehicle and industrial power distribution applications. Explore more products in the EV Connectors category at EnvMart for your connectivity needs.
