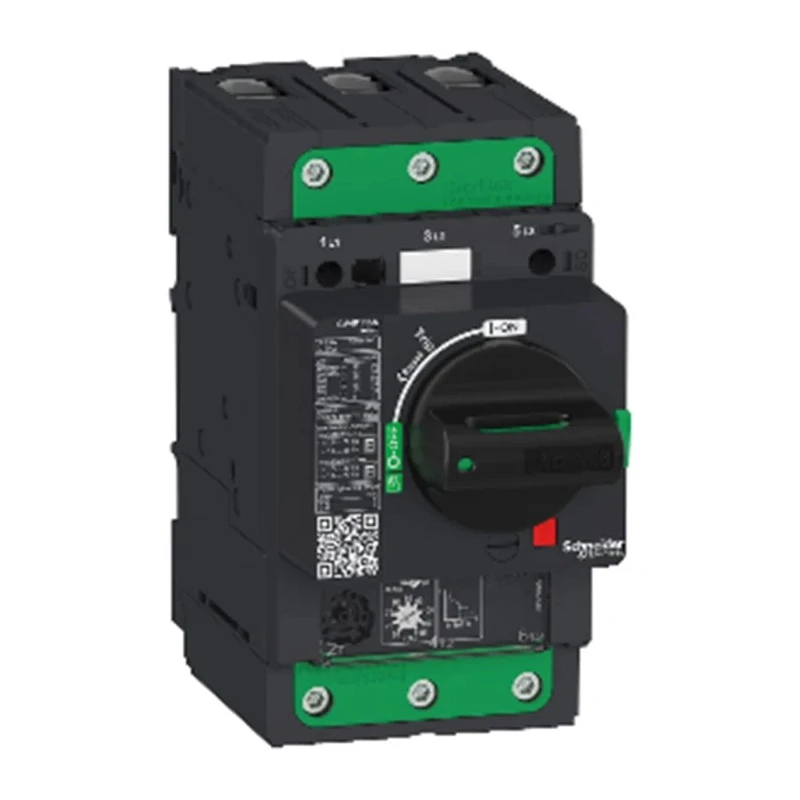

Schneider Electric TeSys GV Thermal Circuit Breaker 50A 3-Pole 690V AC Thermal Magnetic Protection GV4P50B
Specifications
| Country of Origin | Poland |
|---|---|
| Range | TeSys |
| Brand | Schneider Electric |
| Height | 116mm |
| Model | GV4P50B |
| Depth | 116mm |
| Width | 165mm |
| Mount Type | Direct |
| Current Rating | 50A |
| Series | TeSyS GV |
| Terminal type | Screw |
| Breaking Capacity | 10kA |
| Number of Poles | 3 |
| Standards/Approvals | RoHS, CE |
| Rated AC Voltage | 690V ac |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Break Time | Medium |
| b Magnetic GV4L | to be used with an overload relay or a drive |
| b Thermal magnetic GV4P | electronic protection with wide range setting, dual class (10 & 20) |
| b Multifunction motor protection GV4PEM | GV4P with adjustable advanced protections and possibility to have |
Key Features
- Thermal magnetic tripping mechanism ensures precise motor protection.
- Direct mount type with screw terminal connections for secure installation.
- Toggle switch reset actuator for easy operation.
- Breaking capacity of 10kA with medium break time rating.
- Complies with RoHS and CE standards for quality assurance.
- Suitable for protection of 3-phase motors rated 11-22kW at 400V.
- Adjustable thermal protection settings with selectable tripping classes 10 or 20.
- Additional motor protection functions including short time delay, phase unbalance, and ground fault protection.
Product Description
Schneider Electric GV4P50B TeSys GV Thermal Circuit Breaker is a new, high-performance 3-pole motor protection device designed for industrial and commercial electrical applications. Rated for 50A current and 690V AC operation, it combines a thermal magnetic tripping mechanism with robust construction to safeguard 3-phase motors ranging from 11 to 22kW at 400V.
The breaker features direct mounting with screw terminal connections providing reliable and secure wiring. Its toggle switch reset actuator supports straightforward manual reset after tripping events, simplifying operational workflows.
This circuit breaker has a breaking capacity of 10kA and a medium break time, making it suitable for standard industrial motor protection requirements. Adjustable thermal protection can be set between 20-50A with dual tripping classes 10 or 20, allowing flexible customization to various motor profiles.
Additional motor protections integrated into this model include fixed short time delay pick-up, phase unbalance sensitivity, ground fault detection, and loss of motor protection. It supports the addition of auxiliary contact blocks and voltage trip units enhancing diagnostic and control capabilities.
Manufactured in Poland, the GV4P50B complies with multiple international standards (RoHS, CE, IEC, UL, CSA, CCC, EAC, Marine, ATEX), ensuring reliability in diverse industrial environments, including hazardous locations.
Thermal magnetic tripping mechanism for precise motor protection. Direct mount type with screw terminal connections for secure installation. Toggle switch reset actuator for easy operation and resetting. Breaking capacity rated at 10kA with medium break time performance.
Adjustable current setting range between 20-50A with dual tripping classes (10 and 20) for flexible protection. Supports additional protection functions including short time delay, phase unbalance, ground fault, and loss protection.
Compliance with major international standards and environmental regulations. Compact design dimensions of 165mm width, 116mm height, and 116mm depth aid panel integration. Suitable for industrial, manufacturing, HVAC, and commercial motor protection applications.
The Schneider Electric TeSys GV thermal breaker GV4P50B is ideal for industrial electrical setups requiring dependable motor protection with multiple tripping features and worldwide compliance. Explore more Schneider Electric circuit breakers and related products with us at EnvMart.
