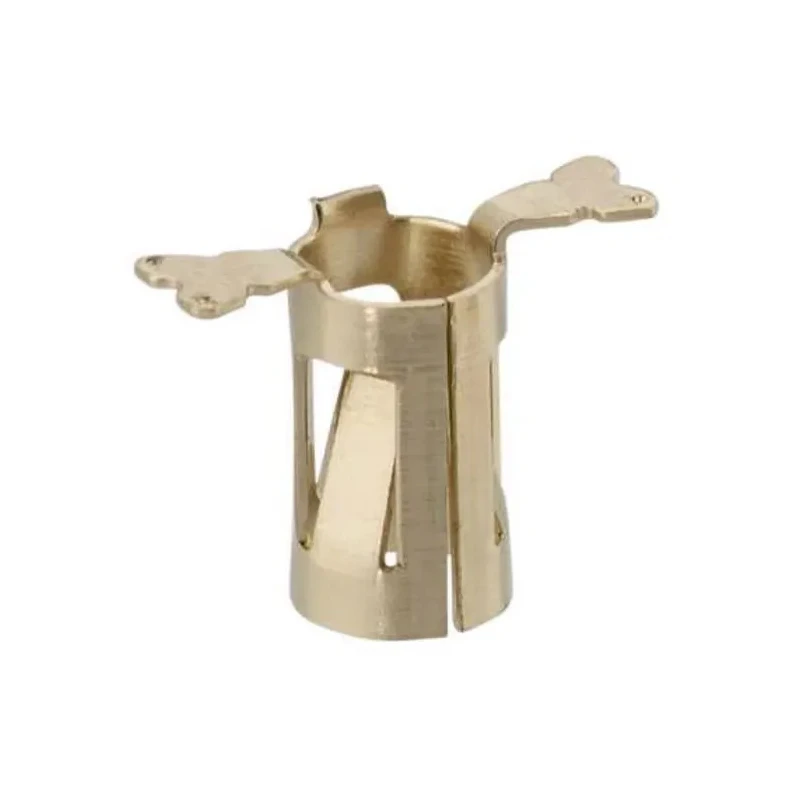

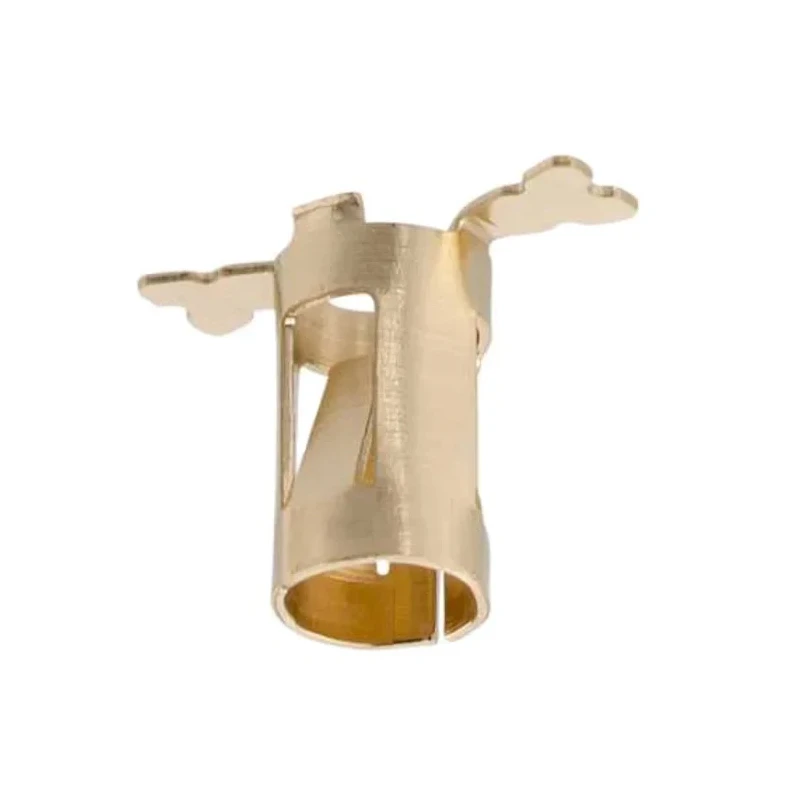

HARWIN S9141 Series Straight Surface PCB Socket, 3-Contact, 3 Row, 1.3 mm Pitch, 12A Surface Mount S9141-45R

HARWIN S9141-45R is a high-quality straight surface mount PCB socket from the S9141 series, designed to facilitate effective board-to-board connections in electronic devices. This socket features a 3-contact, 3-row configuration with a fine 1.3 mm pitch, ensuring precision and reliability in compact circuit assemblies.

The housing is made from durable beryllium copper alloy, providing excellent mechanical strength and corrosion resistance. Contacts are gold-plated beryllium copper alloy, which enhances electrical performance and ensures long-lasting conductivity. The socket's engineering enables it to withstand operating temperatures from -50°C up to 125°C, making it suitable for a wide range of industrial and commercial electronics applications.

Its ultra-low profile and surface mount termination type allow seamless integration in automated SMT assembly lines, significantly reducing process costs by eliminating secondary soldering steps. The socket supports a current rating of 12 amps, accommodating moderate power requirements while maintaining high signal integrity through its 3 contact beams.

This component is designed for mating pins with diameters ranging from 0.8 to 1.3 mm and features a bottom entry orientation, optimized to ensure dependable connections with compatible boards. It is supplied in tape and reel packaging to support automated pick-and-place manufacturing processes efficiently.

Applications for this PCB Socket include industrial electronics, telecommunications, computing equipment, consumer electronics, and other manufacturing environments where reliable board-to-board connectivity is critical. Its robust design and quality materials make it well suited for demanding conditions and high volume production requirements.

Constructed from beryllium copper alloy for superior durability and corrosion resistance. Gold plating on contacts ensures premium electrical conductivity and reduces oxidation. Ultra-low profile design supports compact device assemblies.

Surface mount type compatible with automated SMT assembly methods. Supports current rating up to 12 amperes for power handling capability. Designed for operational temperatures from -50°C to 125°C. Three contact beams provide enhanced signal and connection stability.

Tape and reel packaging facilitates efficient automated placement. Explore more advanced PCB connectors and sockets from HARWIN and other premium brands in the Electronics Components category at EnvMart.
