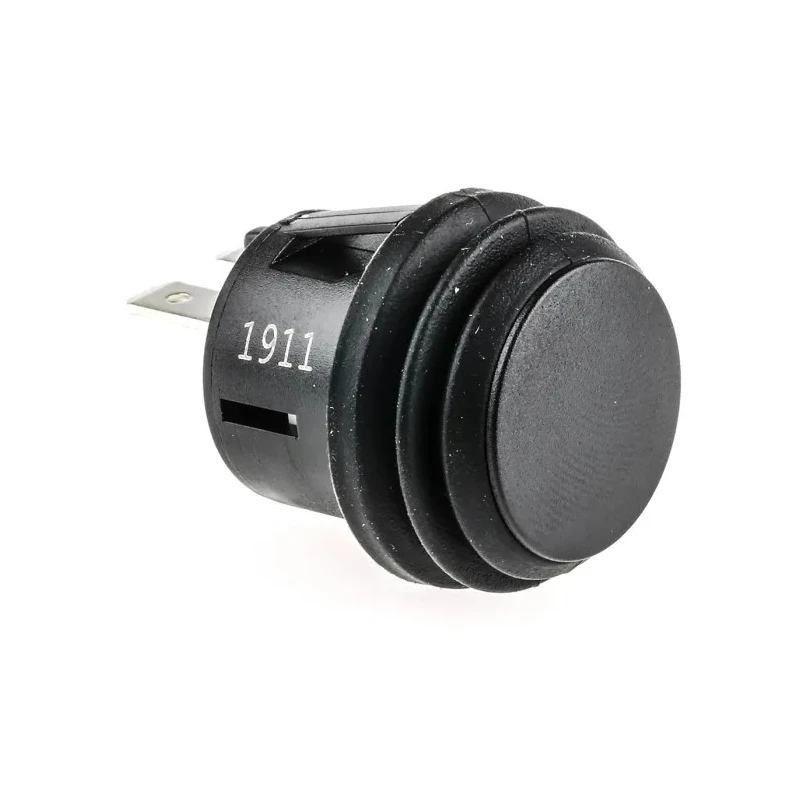

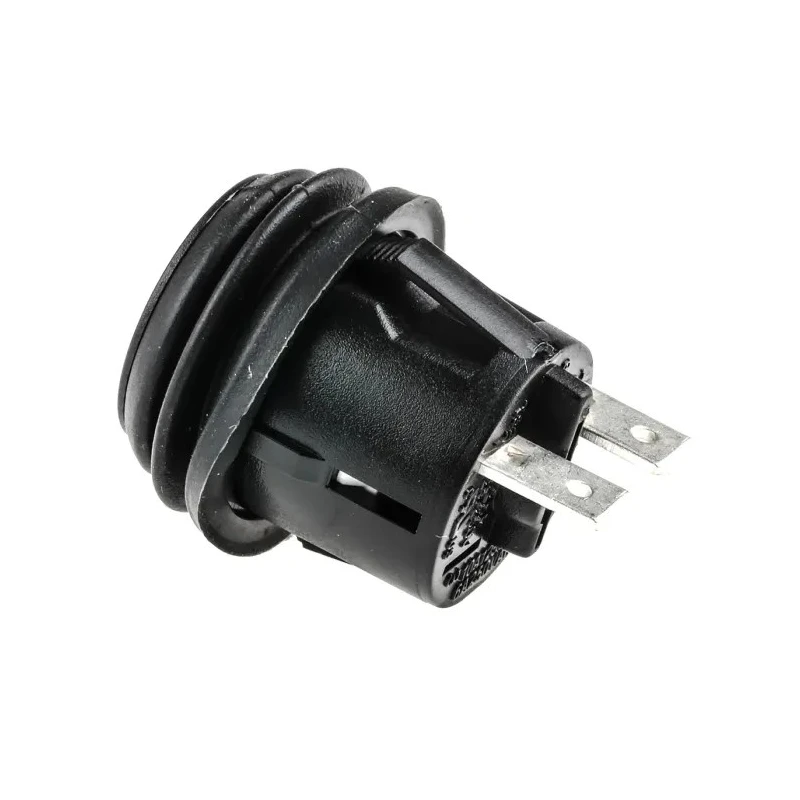

ZF KF Series Momentary Push Button Switch Panel Mount 20.2 mm Cutout SPST Black LED IP65 28V dc 250V ac KFB2DNA1BBB



Category Push Button Switch Brand ZF Condition New

Specifications

Country of Origin	China
Brand	ZF
Model	KFB2DNA1BBB
IP Rating	IP65
Mount Type	Panel
Series	KF
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Switch Configuration	On-Off
Minimum Operating Temperature	-25°C
Panel Cutout Size	20.2 mm
Terminal type	Tab
Standards/Approvals	RoHS
LED Colour	Black
Switch Operation	Momentary
Actuator Colour	Black
Contact DC Voltage	28V dc
Actuator Style	Button
Switch Contact Current	20A
Mechanical Life	100,000 cycles
Contact AC Voltage	250V ac
Legend	Blank

Key Features

This panel mount push button switch supports momentary operation for controlled switching.
Equipped with a black actuator and non-illuminated black LED color for clear signaling.
Designed with a 20.2 mm panel cutout size suitable for compact installations.
Features a Single Pole Single Throw (SPST) contact configuration with tab terminals.
Rated for 28 V DC and 250 V AC contact voltages with a 20 A contact current rating.
Certified to IP65 standard ensuring protection against dust and water ingress.
Operates reliably within -25°C to 85°C temperature range.
Mechanical durability tested for 100,000 cycles ensuring long service life.

Product Description

ZF KFB2DNA1BBB is a momentary push button switch from the KF Series, designed for panel mounting with a 20.2 mm cutout. This robust push button switch features a Single Pole Single Throw (SPST) contact configuration and a black actuator style with integrated black LED illumination. It operates reliably at contact voltages of 28 V DC and 250 V AC and supports a contact current of 20 A, making it suitable for various electrical and automation control applications.

The switch is rated IP65, offering excellent protection against dust and water ingress, which ensures durability in harsh industrial or outdoor environments. Its operating temperature range spans from -25°C to 85°C, supporting dependable performance across diverse conditions.

The KF Series waterproof push button switches provide versatility with options for maintained or momentary action. This particular model features momentary operation ideal for temporary switching needs. Snap-in mounting simplifies installation within control panels or machinery.

This switch complies with RoHS standards, demonstrating adherence to environmental regulations. With a mechanical life rated at 100,000 cycles, it guarantees extended operational reliability.

Typical applications include use in vehicle controls, outdoor machinery, medical devices, and industrial automation systems where reliable and durable push button switches are required.

This panel mount push button switch supports momentary operation for controlled switching. Equipped with a black actuator and non-illuminated black LED color for clear signaling. Designed with a 20.2 mm panel cutout size suitable for compact installations.

Features a Single Pole Single Throw (SPST) contact configuration with tab terminals. Rated for 28 V DC and 250 V AC contact voltages with a 20 A contact current rating. Certified to IP65 standard ensuring protection against dust and water ingress.

Operates reliably within -25°C to 85°C temperature range. Mechanical durability tested for 100,000 cycles ensuring long service life. Compliant with RoHS standards for environmental safety. Explore the ZF range of Push Button Switches on EnvMart for diverse industrial, electrical, and automation requirements.
