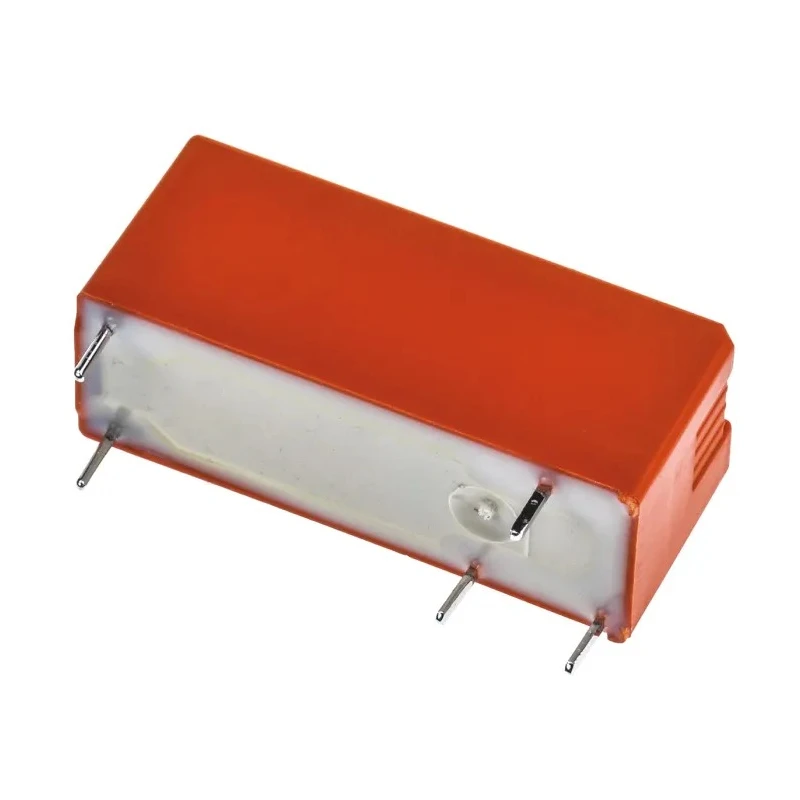

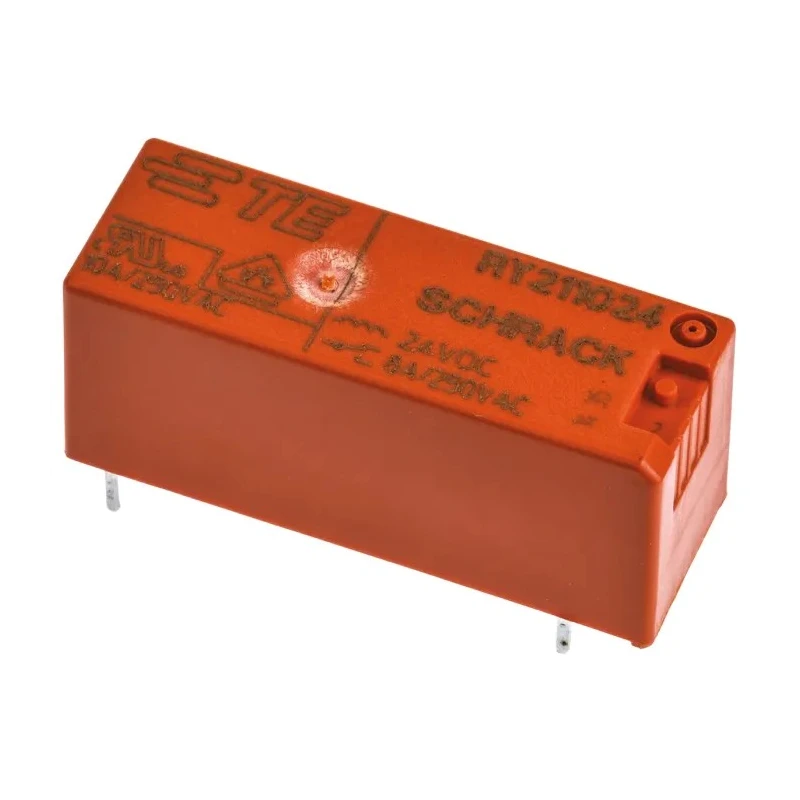

TE Connectivity PCB Power Relay 24V dc Coil 8A Switching Current SPDT RY211024

TE Connectivity RY211024 PCB Power Relay features a coil voltage of 24V dc and supports an 8A switching current with single pole double throw (SPDT) contact configuration, ideal for industrial and automation applications.

This relay is designed specifically for PCB mounting using solder terminals and belongs to the RY II series known for reliability and performance. The device operates efficiently from a minimum of -40°C to a maximum of 70°C, making it suitable for harsh environmental conditions.

Its compact form factor with dimensions of 28.5mm length, 10.1mm width, and 12.3mm height allows integration into limited space electronic assemblies. The contacts use silver alloy material to ensure stable conductivity and durability over long service periods.

Comprehensive compliance with international standards such as IEC 60335-1, RoHS, and VDE underlines its suitability for global market applications, while coil resistance of 2.4 kΩ and power consumption of 250mW provide energy-efficient operation.

The relay's capability to switch AC voltages up to 400V ac and maintain adequate creepage and clearance distances of 8mm ensures insulation safety in electrical circuits commonly found in industrial controls, HVAC, and manufacturing equipment.

Manufactured in the Czech Republic, the RY211024 delivers superior quality and reliability demanded by electronics and electrical professional users. Designed for PCB mounting with solder terminal type. Operates reliably within temperature range of -40°C to 70°C.

Compact dimensions: length 28.5mm, width 10.1mm, height 12.3mm. Silver alloy contact material ensures long-lasting electrical performance. Complies with IEC 60335-1, RoHS, and VDE standards. Coil resistance of 2.4 kΩ and coil power rating of 250 mW.

Switching AC voltage capability up to 400V ac. Creepage and clearance distance of 8mm for safe insulation. Constructed in Czech Republic maintaining high manufacturing quality.

Suitable for industrial automation, electrical panels, HVAC systems, manufacturing controls, and other commercial electrical applications requiring reliable switching performance and compliance.
