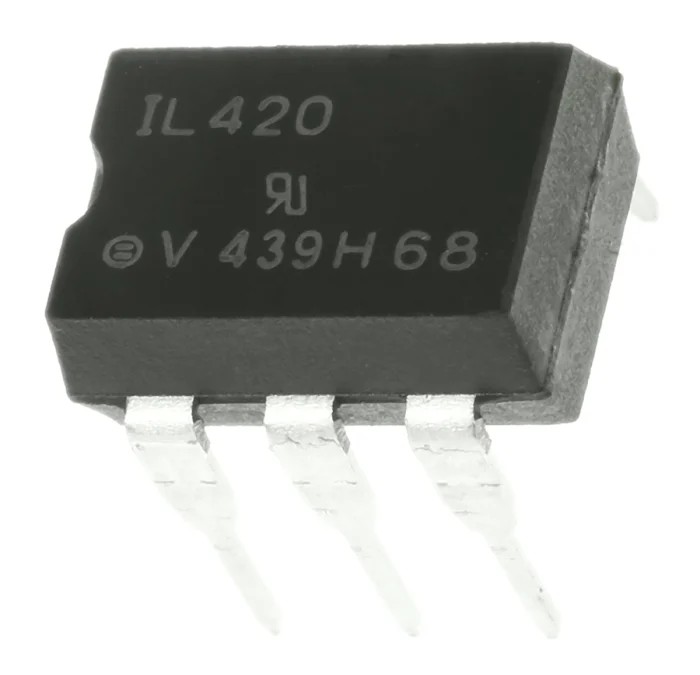

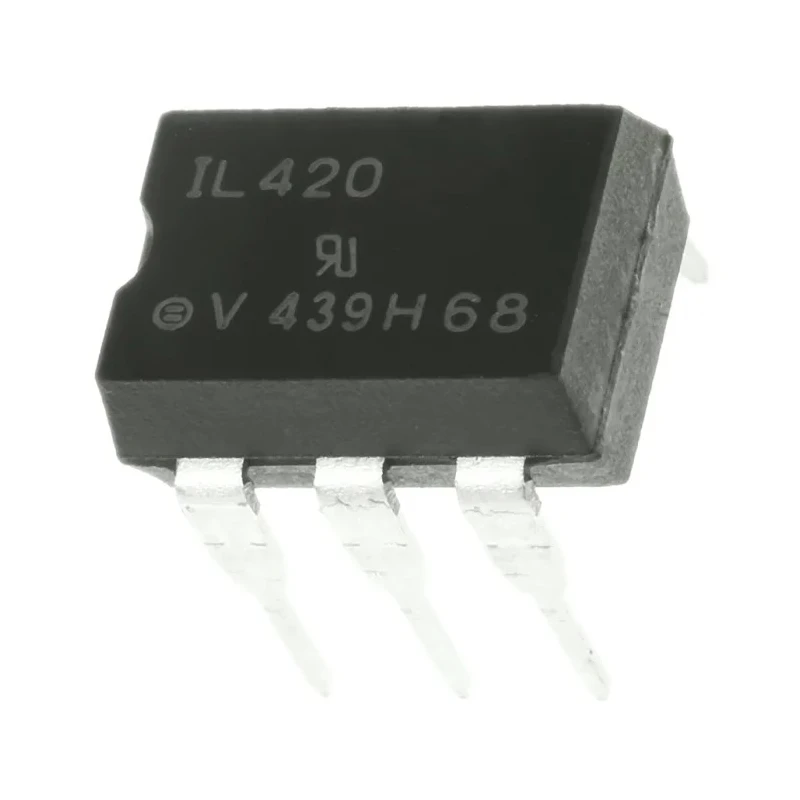

Vishay Optocoupler Through Hole 6-Pin PDIP IL420

Vishay IL420 is a reliable optocoupler with through-hole mount and 6-pin PDIP package designed to isolate low voltage logic circuits from high voltage AC lines. It features a phototriac output suitable for controlling resistive, inductive, or capacitive AC loads such as motors, thyristors, solenoids, and relays. The device withstands isolation voltages up to 5300V AC, ensuring safe and secure electrical separation.

This optocoupler can handle a maximum input current of 60 mA and operates over a wide temperature range from -55°C to 100°C, suitable for harsh industrial environments. Packaged in tape and reel format, it supports efficient automated insertion during manufacturing processes. CART top certifications include CSA 93751, CQC:GB8898-2001, DIN EN 60747-5-5 (VDE 0884), and UL1577.

The IL420 series optocouplers are used in a variety of applications such as industrial controls, solid-state relays, lighting systems, and consumer appliances. The phototriac output type supports zero and non-zero crossing detection options, which are critical for controlling various load types.

Manufactured in Malaysia by Vishay, this component delivers consistent quality and performance in electronic systems requiring electrical isolation and signal transmission. Provides isolation voltage up to 5300V AC for safety.

Phototriac output suitable for controlling AC loads including motors and relays. Maximum forward voltage of 1.35V ensuring low voltage operation on the input side. Operating temperature range from -55°C to 100°C supports diverse environmental conditions.

Complies with multiple international safety and quality standards. Available in tape and reel packaging for automated assembly. Ideal for industrial, laboratory, HVAC, consumer appliance, and manufacturing applications. Explore more Optocouplers and electronic components in the Vishay category on EnvMart to find compatible and complementary devices for your projects and productions.
