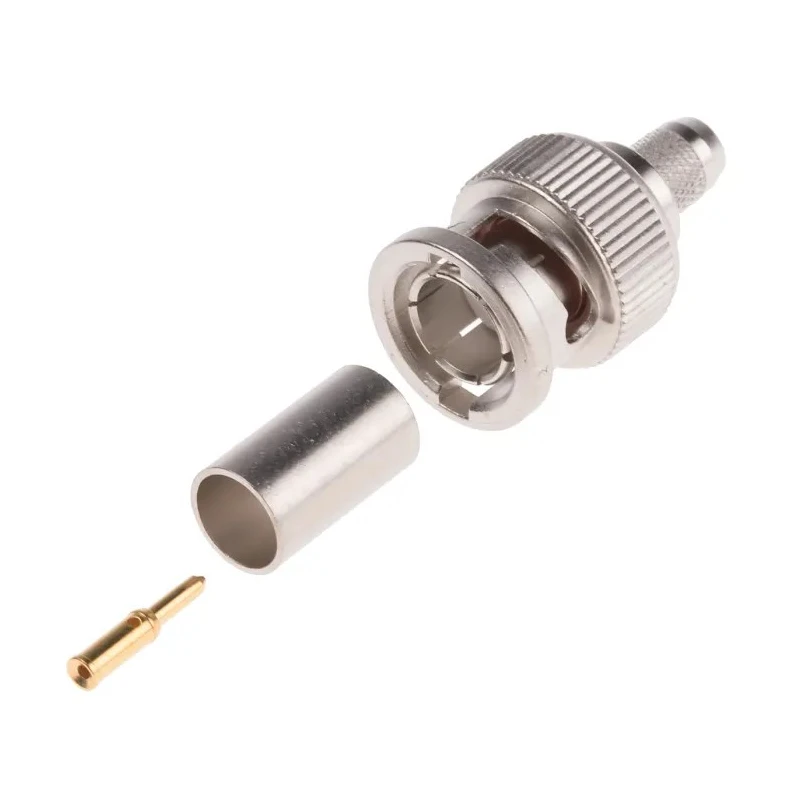

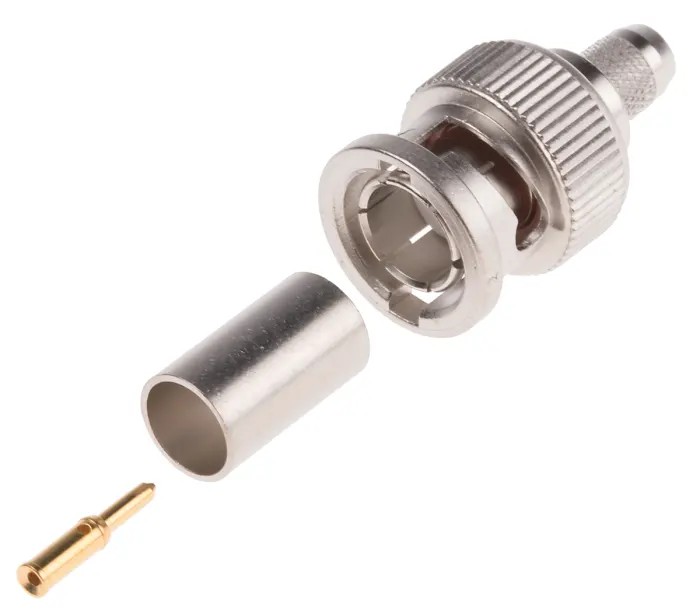

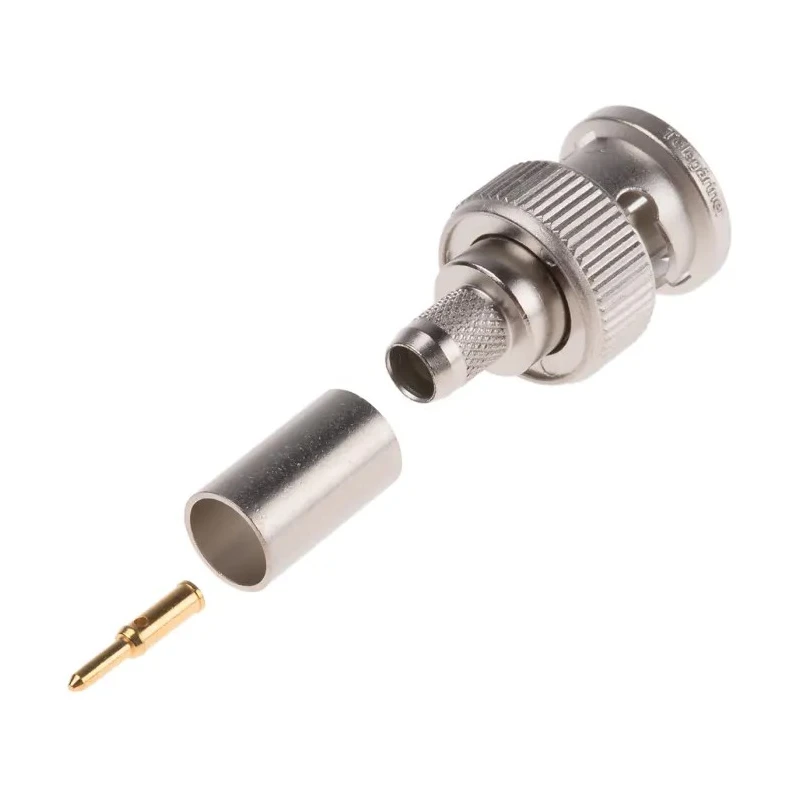

Telegartner BNC Series Coaxial Connector Cable Male BNC, 75 Ω, Straight Body Crimp J01002A0016

Free Delivery in India | Lowest Global Shipping Charges

Telegartner BNC Series Coaxial Connector Cable Male BNC, 75 Ω, Straight Body Crimp J01002A0016

Name: Telegartner BNC Series Coaxial Connector Cable Male BNC, 75 Ω, Straight Body Crimp J01002A0016
Brand: Telegartner
SKU: 217493
Price: 4.79 USD
Availability: InStock



Category Coaxial Connector Brand Telegartner Condition New

Specifications

Country of Origin	Germany
Size	Standard
Brand	Telegartner
Orientation	Straight
Model	J01002A0016
Mount Type	Cable
Operating Frequency	4GHz
Contact Material	Beryllium Copper
Series	BNC
Termination Type	Crimp
Maximum Operating Temperature	75°C
Cable Type	0.8/3.7-6.15
Minimum Operating Temperature	-40°C
Polarity	Normal
Impedance	75Ω
Contact Plating	Copper Nickel Gold Alloy
Contact Gender	Male
Connector Gender	Male
Coaxial Connector Type	BNC
Body Plating	Nickel

Key Features

The connector features a durable nickel plating for enhanced corrosion resistance.
Supports operating frequencies up to 4 GHz, suitable for RF signal transmission.
Constructed with beryllium copper contacts plated with copper nickel gold alloy ensuring reliable conductivity.
Designed for use with cable type 0.8/3.7-6.15 mm and standard size cable mounts.
Operates reliably within a temperature range of -40°C to 75°C.
Quick bayonet coupling mechanism allows easy connect and disconnect with a quarter turn.
Suitable for signal, data, and video transmission applications.
Made in Germany with high manufacturing standards.

Product Description

Telegartner J01002A0016 BNC Series Coaxial Connector Cable is a male BNC Coaxial Connector optimized for 75 Ω impedance cable connection with a straight body and crimp termination. Featuring a robust nickel-plated body, this connector is engineered to perform up to 4 GHz frequencies, making it ideal for RF applications in electronics and communication equipment.

The connector's beryllium copper contact material enhanced with copper nickel gold alloy plating offers excellent electrical conductivity and resistance to wear and corrosion. Manufactured to German quality standards, this connector maintains performance across a wide temperature range from -40°C to 75°C, suitable for demanding environments.

The easy bayonet coupling design requires only a quarter turn for secure and quick locking, commonly used in broadcast, test instruments, and video transmission systems. Compatible with cables sized 0.8/3.7-6.15 mm and typical standard coaxial cable mounts, this connector is versatile for varied technical usages.

The connector body plating is nickel for durability. Contact plating combines copper nickel gold alloy for stability and conduction. Supports frequencies up to 4 GHz for reliable high-frequency signal transmission. Designed with beryllium copper contacts for mechanical strength and conductivity.

Termination type is crimp, compatible with cable mount specifications. Operates within -40°C to 75°C for versatility in different conditions. Normal polarity and male connector gender suited for standard applications. This product is manufactured in Germany, providing high quality and reliability for industrial, laboratory, and commercial RF connectivity applications.
