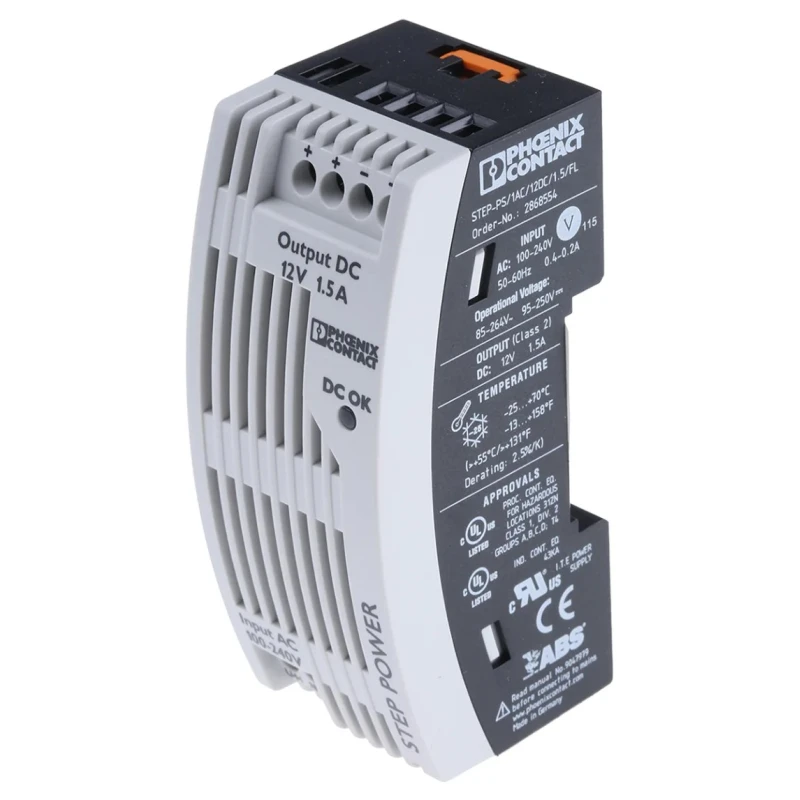

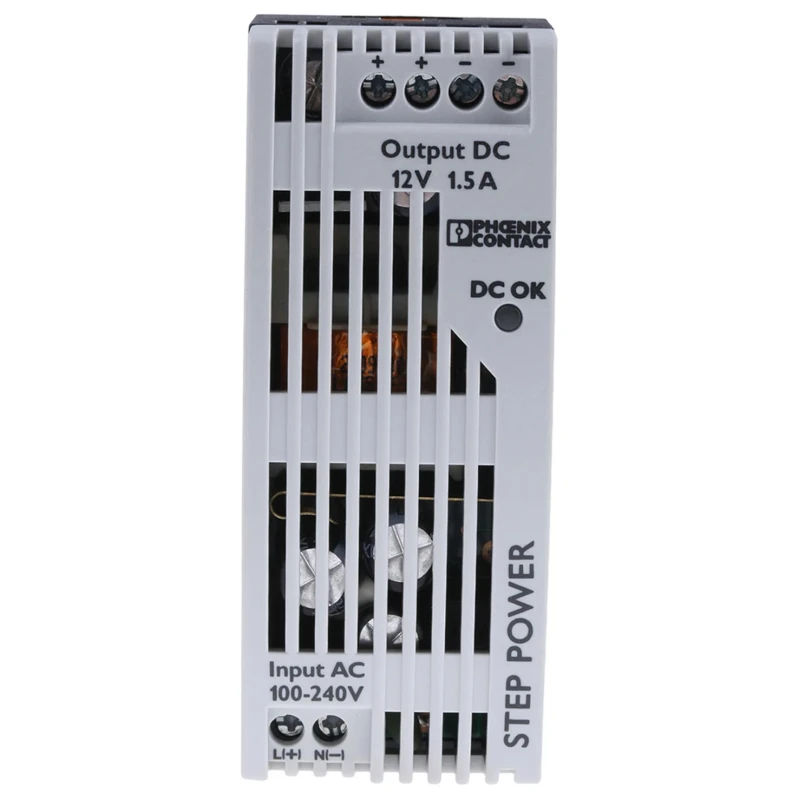

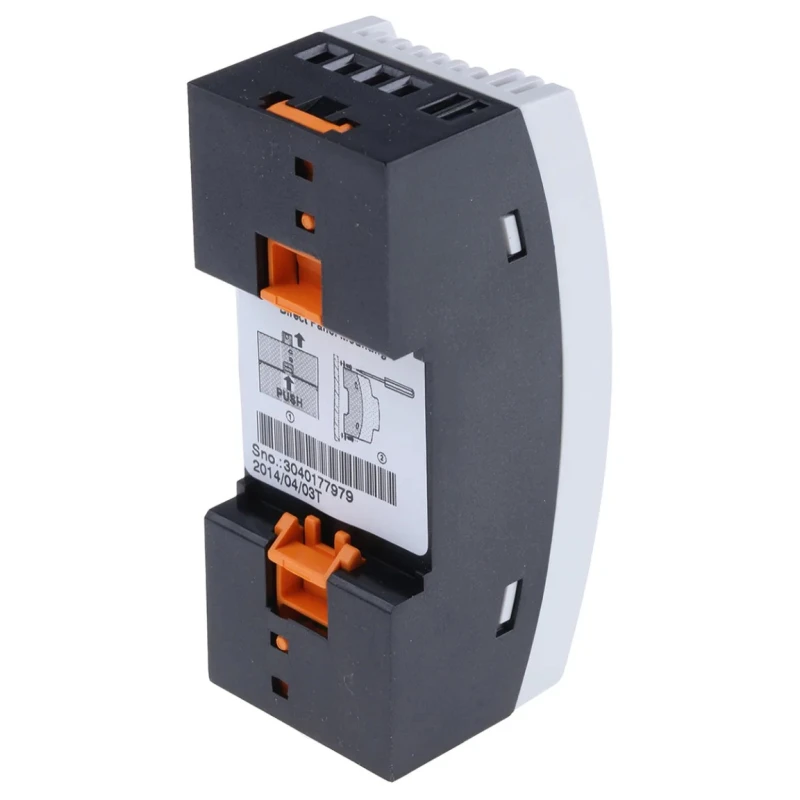

Phoenix Contact STEP POWER Switched Mode DIN Rail Power Supply 264V AC Input 12V DC 1.5A 18W 2868554
Specifications
| Country of Origin | India |
|---|---|
| Brand | Phoenix Contact |
| Power | 18W |
| Efficiency | 84% |
| Height | 90mm |
| Model | 2868554 |
| Depth | 90mm |
| IP Rating | IP20 |
| Width | 36mm |
| Series | STEP POWER |
| Output Current | 1.5A |
| Maximum Operating Temperature | 60°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V ac |
| Electrical Phase | 1 |
| Maximum Output Voltage | 12V dc |
| Minimum Input Voltage | 85V ac |
Key Features
- Compact design with dimensions 90mm height, 36mm width, and 90mm depth for easy installation.
- High efficiency of 84% with low standby losses for energy savings.
- Operating temperature range from -25°C to 60°C for reliable performance.
- IP20 rated for protection against solid objects and safe indoor use.
- Supports parallel switching to increase performance and redundancy.
- Equipped with LED function monitoring for fast commissioning.
- Suitable for worldwide use with wide input voltage range from 85V to 264V AC.
- Designed especially for building automation and industrial control panels.
Product Description
Phoenix Contact 2868554 STEP POWER series is a switched mode DIN rail power supply delivering a maximum output of 12V DC at 1.5A with 18W power. It supports a wide AC input voltage range from 85V AC up to 264V AC and is designed for single-phase operation. This compact unit (90mm x 36mm x 90mm) fits easily on DIN rails or can be mounted on flat surfaces, providing flexible installation options.
The power supply features high efficiency (84%) and low idling losses, contributing to energy savings in continuous industrial and building automation applications. The IP20 rating protects the unit from solid object ingress while allowing ventilation for thermal management. It is specifically engineered for reliable operation in harsh environments with an operating temperature range from -25°C to 60°C.
Designed for easy wiring, it features screw terminal connections and LED status indication for fast commissioning. The STEP POWER units support parallel operation, enhancing performance and redundancy. With a high mean time between failures (MTBF) exceeding 500,000 hours, it ensures dependable power supply for critical applications.
The power supply is suitable for industrial, manufacturing, building automation, and electrical panel applications. Its worldwide approvals and wide input voltage range make it adaptable for global deployments. Installation on standard NS 35 (EN 60715) DIN rails allows for consistent cable management and streamlined maintenance.
Compact and robust housing for space-saving DIN rail installation. Maximum output voltage 12V DC with 1.5A output current, 18W power rating. Wide input voltage range 85-264V AC for worldwide use. High energy efficiency and low standby power consumption.
Operating temperature range from -25°C to 60°C. IP20 protection class for electrical safety. LED indicator for status monitoring during operation. Supports parallel switching for increased power and reliability. High MTBF of more than 500,000 hours for dependable performance.
Designed primarily for building automation and industrial control systems. Explore our extensive selection of power supplies and Phoenix Contact products on EnvMart for reliable industrial and electrical power solutions.
Explore more products in our DIN Rail Power Supplies category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 18W.
It supports a wide input voltage range from 85V AC to 264V AC.
The dimensions are 90mm in height, 36mm in width, and 90mm in depth.
The output voltage is 12V DC with a current of 1.5A.
It has an efficiency rating of 84%.
The operating temperature range is from -25°C to 60°C.
It has an IP20 rating, providing protection against solid objects for safe indoor use.
Yes, it supports parallel switching to enhance performance and redundancy.
It features screw terminal connections for easy wiring.
It is designed for building automation and industrial control panel applications.
The country of origin for this model is India.
