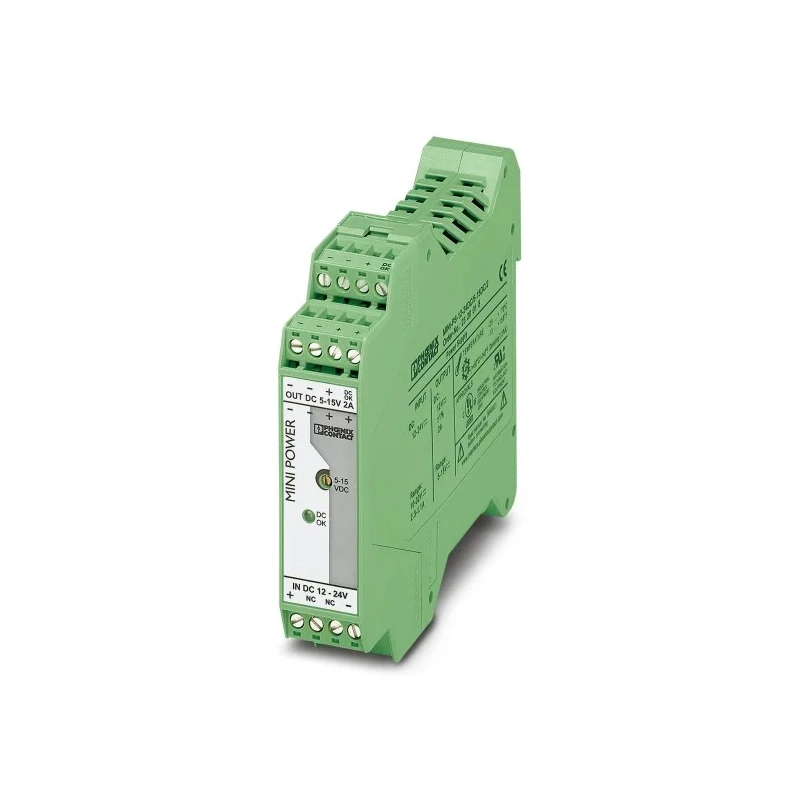

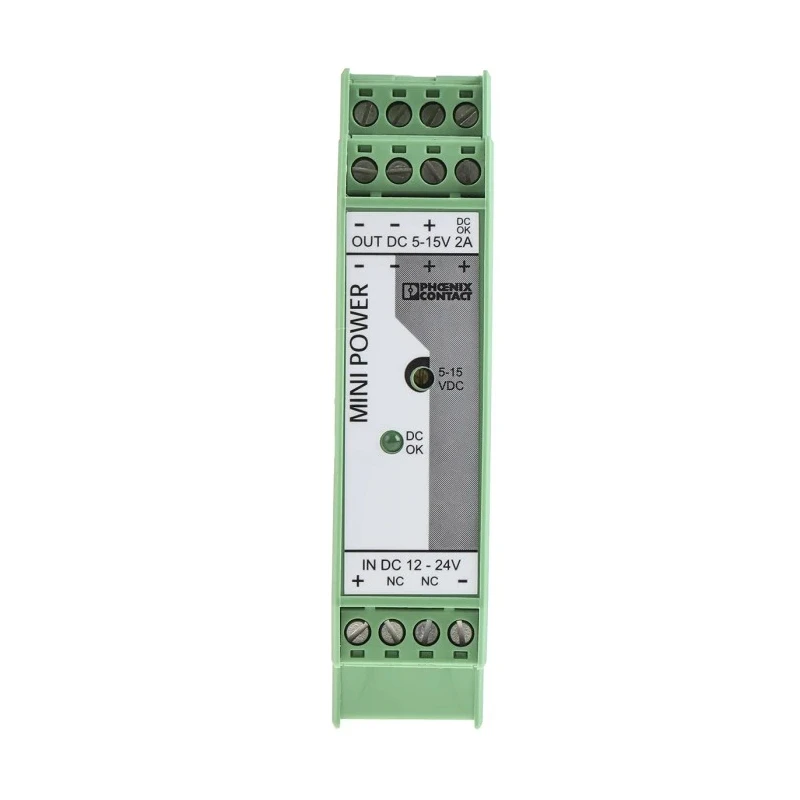

Phoenix Contact DC/DC Converter 12V DC Output, 2A, 32V DC Input, DIN Rail Mount, 24W Power, 70°C Model 2320018

Phoenix Contact 2320018 is a high-quality DC/DC Converter delivering 12V DC at 2A output current with a power rating of 24W. The unit accommodates a wide input voltage range up to 32V DC and is designed for DIN rail mounting, ideal for industrial and commercial power supply systems.

This device enables efficient stepping down of voltages from 12 to 24V DC down to a regulated output between 5 and 15V DC. Its adjustable output voltage allows for versatile use in creating isolated and independent power supplies or regenerating voltage at cable ends, enhancing system reliability.

The robust polyamide housing provides excellent mechanical durability and protection from impacts common in industrial environments. The compact form factor (99mm length, 22.5mm width, 107mm depth) saves installation space without compromising performance.

Equipped with an integrated slow-blow 6.3A fuse, this converter safeguards against short circuit damage, while a green LED indicator facilitates quick operational status checks. The unit achieves an efficiency rating of 88% maximizing power conversion effectiveness and system energy efficiency.

Additional electrical safety is assured through a 1.5kV DC isolation voltage, supporting safe operation in sensitive applications. The converter operates reliably in temperature extremes from -25°C up to +70°C, suitable for diverse industrial, laboratory, renewable energy, and transportation settings.

Typical applications include use in solar grids to stabilize power, vehicle instrumentation panels for dependable DC power supply, and various industrial control systems requiring isolated DC power conversion.

Horizontal DIN rail mounting allows swift and secure installation in electrical panels or enclosures, compatible with standard industrial setups. This DC/DC converter offers a compact design with dimensions of 99 x 22.5 x 107 mm.

Equipped with an output voltage adjustment range of 5 to 15 V for flexible voltage regulation. Integration of a slow-blow 6.3A fuse enhances protection against short circuits. High conversion efficiency of 88% improves energy saving and performance.

The device provides electrical isolation with an isolation voltage of 1.5kV DC for safety applications. It features a green LED status indicator for convenient operational monitoring. Designed for rugged industrial use with a durable polyamide housing ensuring impact resistance.

Suitable for applications like solar power systems, industrial equipment, and vehicle instrumentation panels. Mounts securely on horizontal DIN rails for quick installation and integration. Operates reliably within a temperature range of -25°C to +70°C for diverse environments.
