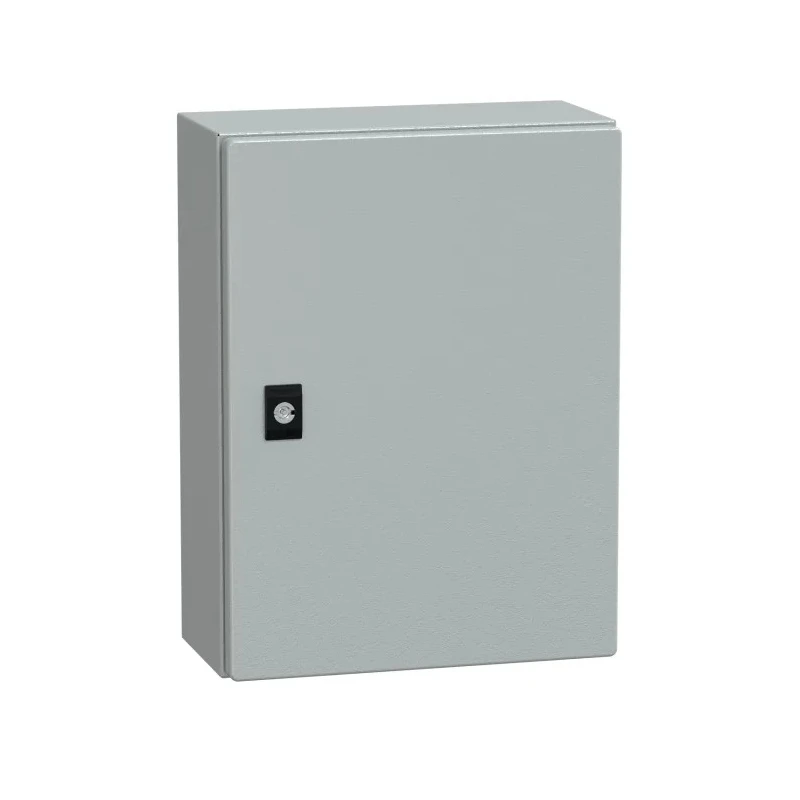

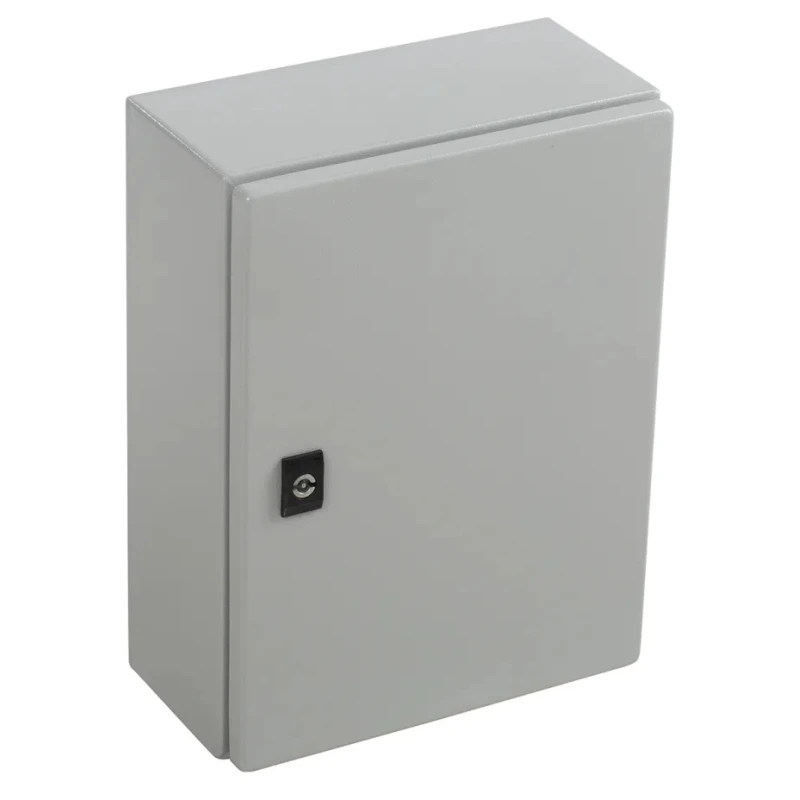

Schneider Electric Spacial CRN Series Steel Wall Box, IP66, 400 mm x 300 mm x 150 mm NSYCRN43150

Free Delivery in India | Lowest Global Shipping Charges

Schneider Electric Spacial CRN Series Steel Wall Box, IP66, 400 mm x 300 mm x 150 mm NSYCRN43150

Name: Schneider Electric Spacial CRN Series Steel Wall Box, IP66, 400 mm x 300 mm x 150 mm NSYCRN43150
Brand: Schneider Electric
SKU: 217339
Price: 179.67 USD
Availability: InStock



Category Wall Box Brand Schneider Electric Condition New

Specifications

Country of Origin	India
Brand	Schneider Electric
Colour	Grey
Body Material	Steel
Model	NSYCRN43150
IP Rating	IP66
Series	Spacial CRN
External Width	300mm
External Depth	150mm
External Height	400mm
Standards/Approvals	REACH, UL, RoHS, IEC 62208, cULus
Door Lock Type	Double Bar
Better World Claim	Designed for Disassembly
Internal Mount Type	Panel
IK Rating	IK10
RS PRO Steel Wall Box, IP66, 400 mm x 300 mm x 150 mmRS Stock No.	775-5798Brand: RS PRO
Rittal E-Box EB Series Steel Wall Box, IP66, 400 mm x 300 mm x 120mmBrand	Rittal

Key Features

Constructed from corrosion-resistant steel with water-tight epoxy polyester coating.
Equipped with a 3-point 3 mm double-bar lock for enhanced security.
Door opens up to 120° angle for easy access and is removable with reversible hinges.

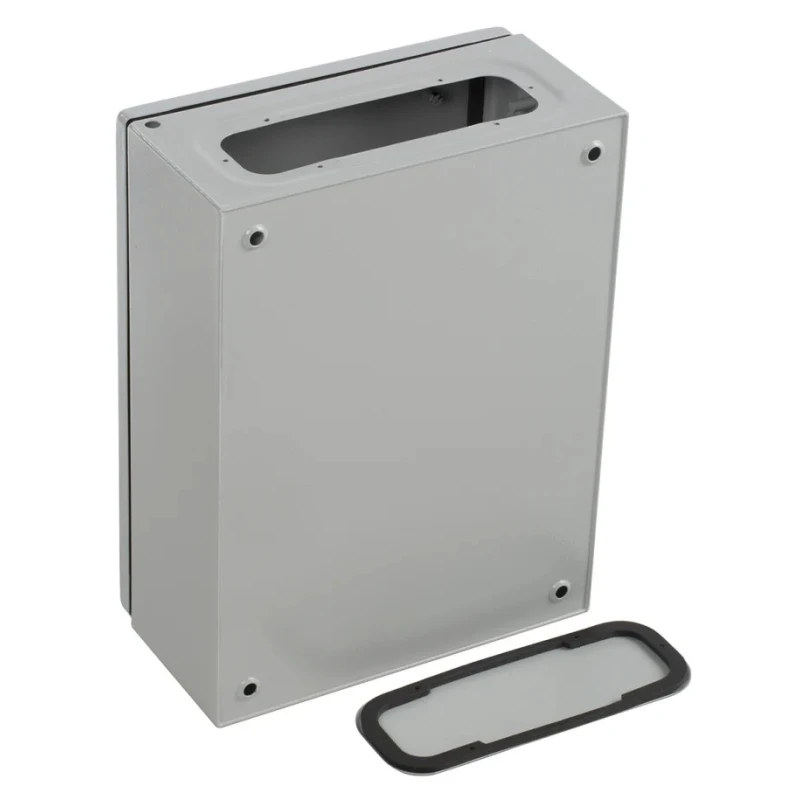

Cable gland plate enables safe routing of cables into the enclosure.
Designed for panel mounting with external bracket mounting type.
Suitable for indoor and outdoor use due to IP66 dust and water protection.
Complies with IEC 62208 and standards including REACH, UL, RoHS, and cULus.
Rated for a maximum load of 50 kg/m² ensuring mechanical strength.

Product Description

Schneider Electric NSYCRN43150 Spacial CRN Series Steel Wall Box is a durable and secure enclosure designed for protecting electrical components in demanding industrial and commercial environments. This wall box measures 400 mm in height, 300 mm in width, and 150 mm in depth, providing ample internal space for electrical installations. The enclosure is made of steel with a corrosion-resistant epoxy polyester coating, ensuring long-term durability and resistance to harsh environmental conditions.

The box features an IP66 rating, which certifies it against dust ingress, vibration, and powerful water jets, making it suitable for indoor and outdoor applications. It includes a polyurethane seal for water tightness, further protecting internal components from moisture damage.

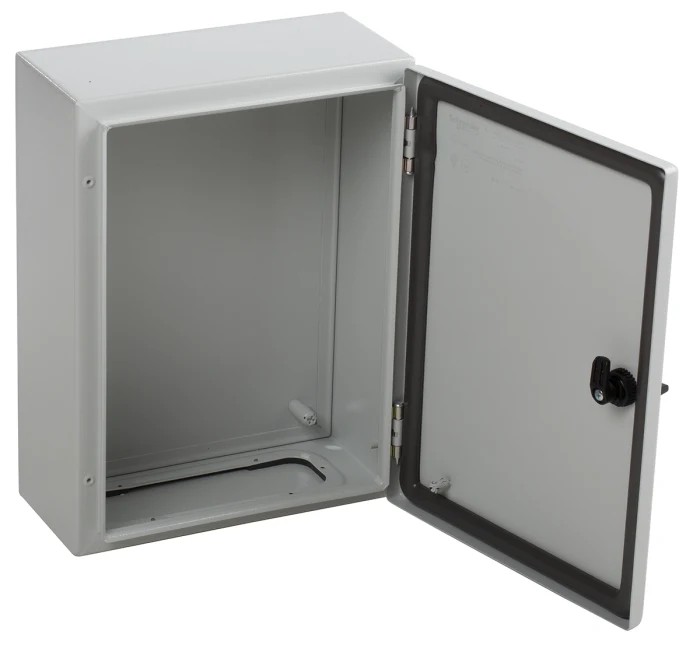

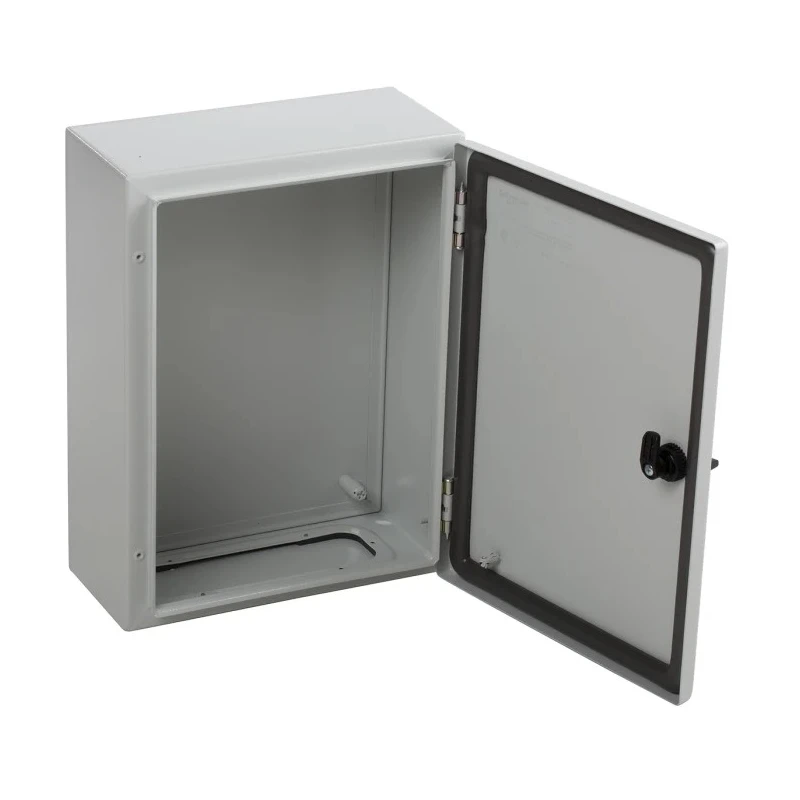

A 3-point 3 mm double-bar locking mechanism provides reliable security, while the door can be opened to a 120° angle for ease of access during maintenance and installation. The door hinges allow removal and reversible opening direction to accommodate various installation scenarios.

Additional features include an external bracket mounting type for straightforward installation, a cable gland plate for secure cable management, and a panel internal mount type. The box supports a maximum load of 50 kg/m², ensuring strength and reliability in use.

Compliance with international standards such as IEC 62208, REACH, UL, RoHS, and cULus assures safety and quality. Constructed from corrosion-resistant steel with water-tight epoxy polyester coating. Equipped with a 3-point 3 mm double-bar lock for enhanced security.

Door opens up to 120° angle for easy access and is removable with reversible hinges. Cable gland plate enables safe routing of cables into the enclosure. Designed for panel mounting with external bracket mounting type. Suitable for indoor and outdoor use due to IP66 dust and water protection.

Complies with IEC 62208 and standards including REACH, UL, RoHS, and cULus. Rated for a maximum load of 50 kg/m² ensuring mechanical strength.

Find high-quality electrical enclosures like the Schneider Electric Spacial CRN Wall Box in the EnvMart catalog to meet your industrial, electrical automation, and construction needs.
