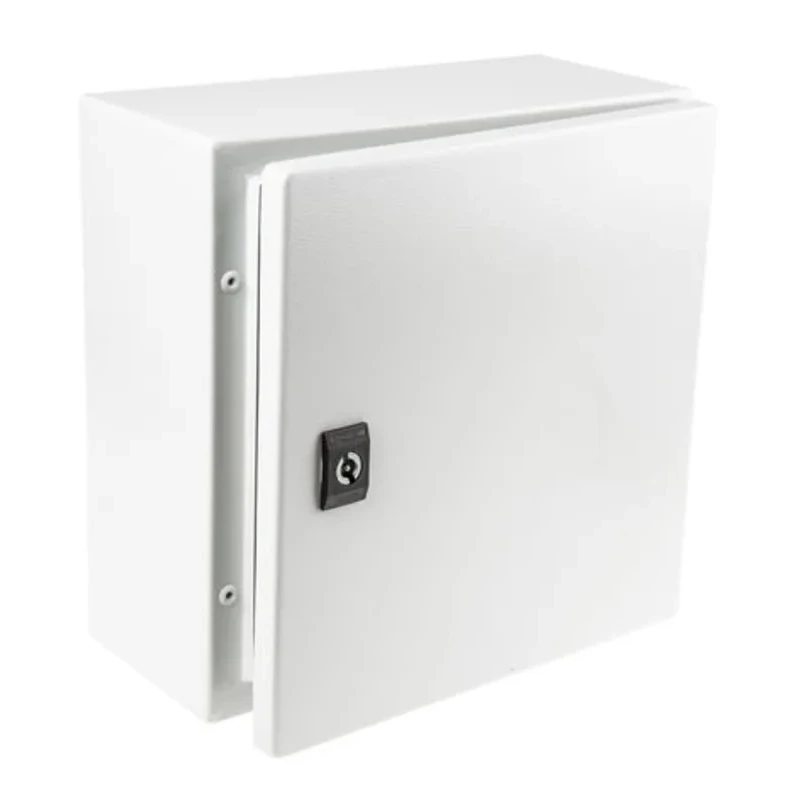

Schneider Electric Spacial CRN Series Steel Wall Box IP66 Grey 300 mm x 300 mm x 150 mm NSYCRN33150P

Schneider Electric NSYCRN33150P Spacial CRN Series Steel Wall Box is a compact multi-purpose enclosure designed for electrical and industrial applications. This wall-mountable steel enclosure measures 300 mm in height and width, with a depth of 150 mm, finished in grey RAL 7035 epoxy-polyester powder coating for enhanced durability and corrosion resistance.

The enclosure features a plain front door with a reversible 120° opening facilitated by smart hinges, allowing easy door removal and replacement. The door is secured with a standard 3 mm double-bar lock, and the unit includes a cable gland plate to facilitate secure cable entry and protection. The internal mounting plate is made of galvanized steel for easy mounting of panels or equipment.

This robust enclosure offers an IP66 rating conforming to IEC 60529, ensuring excellent protection against dust ingress and powerful water jets, enabling use in both indoor and outdoor environments. Its IK10 rating according to IEC 62262 confirms high resistance to mechanical impact. A polyurethane seal maintains watertight integrity over years of service.

The Spacial CRN enclosure series complies with international standards including IEC 62208, REACH, UL, cULus, and RoHS, supporting safe and reliable operation in industrial automation, control panels, and electrical distribution applications. It is designed to accommodate a maximum load of 50 kg/m² and features welded studs on both the door and enclosure body for earthing.

The enclosure is supplied complete with Lock, Door, Body, Cable Gland Plate, and Mounting Plate. The enclosure’s versatile design and stringent testing make it suitable for a wide range of industrial control and automation environments requiring robust protection and ease of installation.

The compact steel enclosure is wall mountable for versatile installation. Plain front door with reversible 120° opening and smart hinges. 3 mm double-bar lock ensures secure closure. Includes cable gland plate for secure cable sealing.

Galvanized steel mounting plate supplied for internal equipment fixing. IP66 rated for superior dust and water protection. IK10 rating for high impact resistance. Complies with IEC 62208, REACH, UL, cULus, and RoHS standards.

Polyurethane seal guarantees long-term watertightness. Ideal for industrial automation, control panels, and electrical enclosure use.
