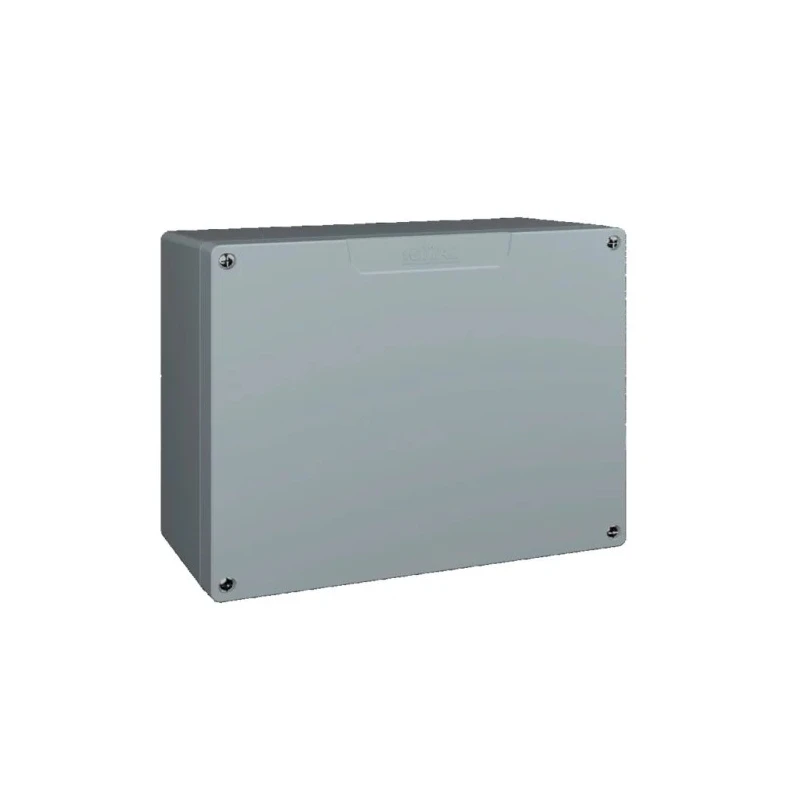

Rittal GA Series Cast Aluminium Wall Box IP66 Grey RAL 7001 232mm x 280mm x 111mm IK08
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Rittal |
| Colour | Grey RAL 7001 |
| Body Material | Cast Aluminium |
| Model | IP66 |
| IP Rating | IP66 |
| Series | GA |
| External Width | 280mm |
| External Depth | 111mm |
| External Height | 232mm |
| Standards/Approvals | RoHS Compliant |
| IK Rating | IK08 |
Key Features
- Constructed from durable cast aluminium for robust protection.
- IP66 rating ensures complete protection against dust and powerful water jets.
- Grey RAL 7001 powder-coated finish for corrosion resistance and aesthetic appeal.
- Integrated neoprene cord seal offers oil, petrol, and chemical resistance.
- Designed with captive screws for secure lid fastening and high security.
- Features drilled and tapped holes for mounting support rails or plates.
- Complies with RoHS standards for environmental safety.
- Provides IK08 impact protection for electrical equipment safety.
Product Description
Rittal IP66 model 9117210 GA Series Wall Box is a cast aluminium electrical enclosure designed for robust industrial and commercial applications. Measuring 232 mm in height, 280 mm in width, and 111 mm in depth, it provides ample space for housing low-voltage switchgear combinations and instrumentation control systems with a maximum rated voltage of 1000 V AC or 1500 V DC.
The enclosure features a powder-coated grey finish (RAL 7001) that ensures long-lasting corrosion resistance and enhanced durability in harsh environments. The construction uses high-quality cast aluminium, providing an excellent strength-to-weight ratio while maintaining compactness.
Equipped with an oil, petrol, and chemical-resistant neoprene cord seal, the enclosure guarantees an IP66 waterproof rating, protecting sensitive electrical components against dust ingress and powerful water jets. The captive screws on the lid secure the cover tightly to maintain the seal and enhance security.
Additional drilled and tapped holes allow for flexible mounting of support rails or plates inside the enclosure, facilitating easy installation and customization.
The enclosure complies with RoHS regulations, ensuring environmental management standards are met, while the IK08 impact rating provides reliable protection against mechanical shocks and impacts.
Robust cast aluminium body with powder-coated grey RAL 7001 finish. IP66 rated protection against dust and high-pressure water jets. IK08 impact resistance for mechanical protection. Neoprene cord seal is resistant to oil, petrol, and chemicals.
Secure lid fastening with captive screws enhances safety. Drilled and tapped mounting holes support diverse fitting options. Suitable for low-voltage switchgear up to 1000 V AC and 1500 V DC. Compliant with RoHS for environmental safety.
This Rittal GA Series Wall Box is ideal for industrial automation, electrical installation, manufacturing plants, and infrastructure applications where durable, secure, and environmental protection is required for electrical components. Browse our extensive collection of electrical enclosures and Wall Boxes for compatible accessories and complementary products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The dimensions of this wall box are 232 mm in height, 280 mm in width, and 111 mm in depth.
It has an IP66 rating, providing complete protection against dust and powerful water jets.
This model has an IK08 impact rating, ensuring reliable protection against mechanical shocks.
The enclosure is constructed from cast aluminium, which offers a strong and lightweight body.
Yes, it complies with RoHS standards for environmental safety.
It features a grey powder-coated finish (RAL 7001) for corrosion resistance and aesthetic appeal.
It is equipped with a neoprene cord seal that offers resistance to oil, petrol, and chemicals.
It can accommodate low-voltage switchgear up to 1000 V AC or 1500 V DC.
Yes, it includes drilled and tapped holes for mounting support rails or plates inside the enclosure.
The country of origin for this product is Germany.
It is ideal for industrial automation, electrical installation, manufacturing plants, and infrastructure applications.
The wall box features captive screws for secure lid fastening, which helps maintain the seal and enhances security.
