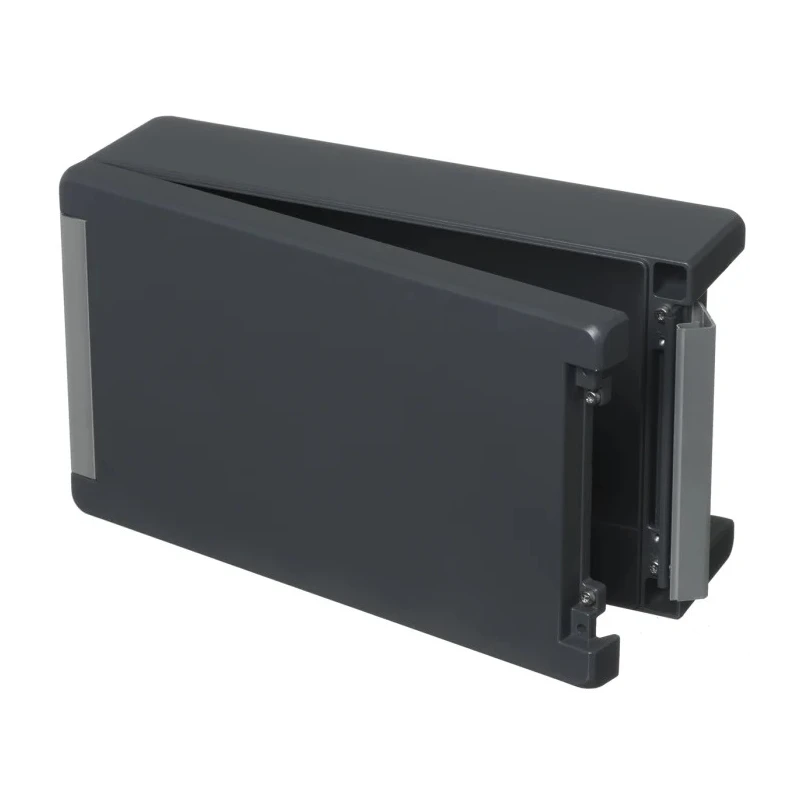

Bopla Bocube Alu Series Graphite Grey Grey Lid Aluminium Enclosure IP69 IP68 IP66 IK07 IK08 90 mm x 299 mm x 173 00116334

Bopla 00116334 Bocube Alu Series aluminium enclosure features robust construction with an aluminium body and foam polyurethane gasket for superior environmental protection. Measuring 90 mm in height, 299 mm in length, and 173 mm in width, this enclosure offers durable housing for sensitive electronics in both industrial and commercial settings.

The enclosure meets high ingress protection standards, including IP69, IP68, and IP66, effectively sealing out dust and water even under immersion and high-pressure cleaning. It also complies with IK07 and IK08 impact protection ratings, guaranteeing resilience against mechanical impacts.

Designed with a graphite grey body and grey lid, this enclosure uses a patented integrated hinge and captive lid technology for quick-release assembly without the need for special tools. Concealed screws and a recessed front surface accommodate sensitive interfaces, front panels, and scored PCBs, ensuring versatile installation options.

This general purpose enclosure is shielded to prevent electromagnetic interference and is prepared for efficient incorporation of pressure compensation elements, including compatible 11 mm components (RS stock no: 907-5315). The solid aluminium construction and powder-coated hinges enhance durability and corrosion resistance.

Manufactured in Hungary, the Bopla Bocube Alu Series enclosure is ideal for a variety of demanding applications such as cable and wire management, IT and server equipment housing, solar power battery enclosures, oil and gas production gear, food and beverage processing controls, and telecommunication systems.

The enclosure is made of solid aluminium for robust general purpose applications. Features a graphite grey body and grey lid with a foam polyurethane gasket for enhanced sealing. Designed with a captive lid and integrated hinge for quick assembly without screws.

Provides excellent protection for electronics in industrial and commercial environments. Offers IP66, IP68 immersion resistance up to 1.2 m for 2 hours, and IP69 high-pressure washdown protection. IK07 and IK08 impact ratings ensure durability against mechanical shocks.

The enclosure is shielded and prepared for easy integration of pressure compensation elements. Compatible with mounting front panels and PCBs, with recessed surface for sensitive interfaces. Manufactured in Hungary with compliance to RoHS standards.

Ideal for applications such as cable management, IT/server, solar power batteries, oil and gas, food and beverage, and telecommunications. Explore more industrial-grade enclosures and solutions on EnvMart for your electronics protection needs.
