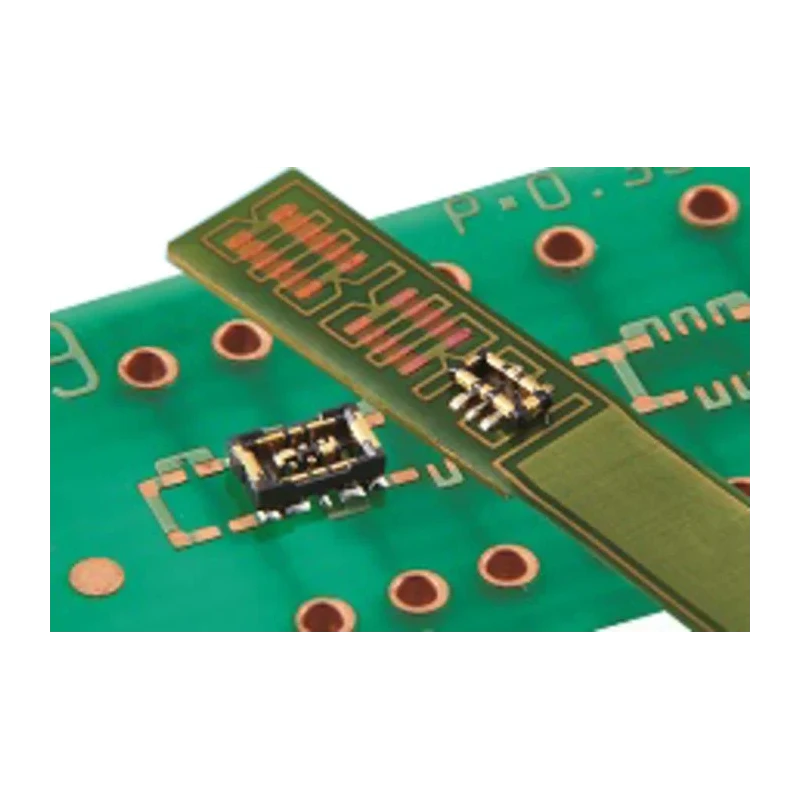

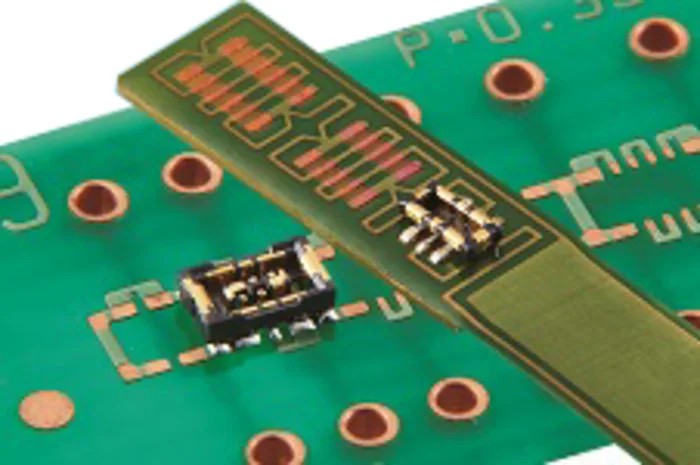

Hirose BM29 Series Straight Surface PCB Socket 2-Contact 2 Row 0.35mm Pitch Solder BM29

Hirose BM29 series straight surface PCB socket, model BM29, provides a compact and reliable solution for board-to-board and board-to-FPC connections. This connector features a 2-contact design arranged in 2 rows with a 0.35 mm pitch, optimized for ultra-small power and signal contacts.

The socket employs a liquid crystal polymer housing material, ensuring robust mechanical and thermal performance suitable for industrial and electronic manufacturing applications. Its bronze female contacts are gold-plated, offering excellent electrical conductivity and corrosion resistance.

Operating within a wide temperature range from -40°C to 85°C and supporting a maximum current of 12A at 30V, this connector meets the demands of sophisticated electronics and embedded systems. The 0.6 mm stacking height and straight orientation on a surface mount platform enable compact PCB layouts.

Designed and manufactured in Japan, the BM29 series does not carry specific certifications but complies with standard quality requirements inherent to Hirose products. Its solder termination type provides a durable and secure electrical connection for flexible and rigid PCB assemblies.

This PCB socket suits diverse industrial use cases including electronics manufacturing, telecommunications equipment, laboratory instrumentation, and consumer electronics assembly. Its small form factor helps in reducing overall PCB space while maintaining reliable performance.

Bronze contacts with gold plating ensure high conductivity and durability. Liquid crystal polymer housing supports mechanical strength and temperature resistance. Straight orientation with surface mount design for versatile PCB layouts.

Ultra-small pitch of 0.35 mm enhances high-density connector applications. Wide temperature tolerance from -40°C to 85°C supports various environments. Maximum current rating of 12A and voltage rating of 30V suits multiple power needs.

Manufactured in Japan guaranteeing stringent quality standards. Ideal for board-to-board and board-to-FPC connections in industrial electronics. Explore the wide selection of Hirose connectors and other PCB Socket components on EnvMart for your industrial and electronic assembly requirements.
