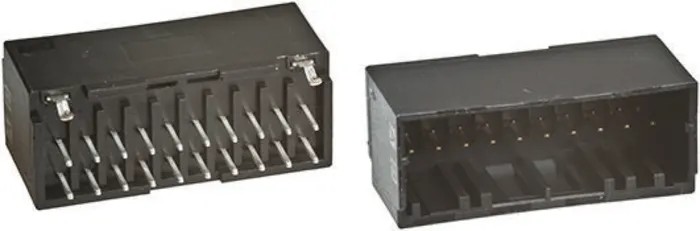

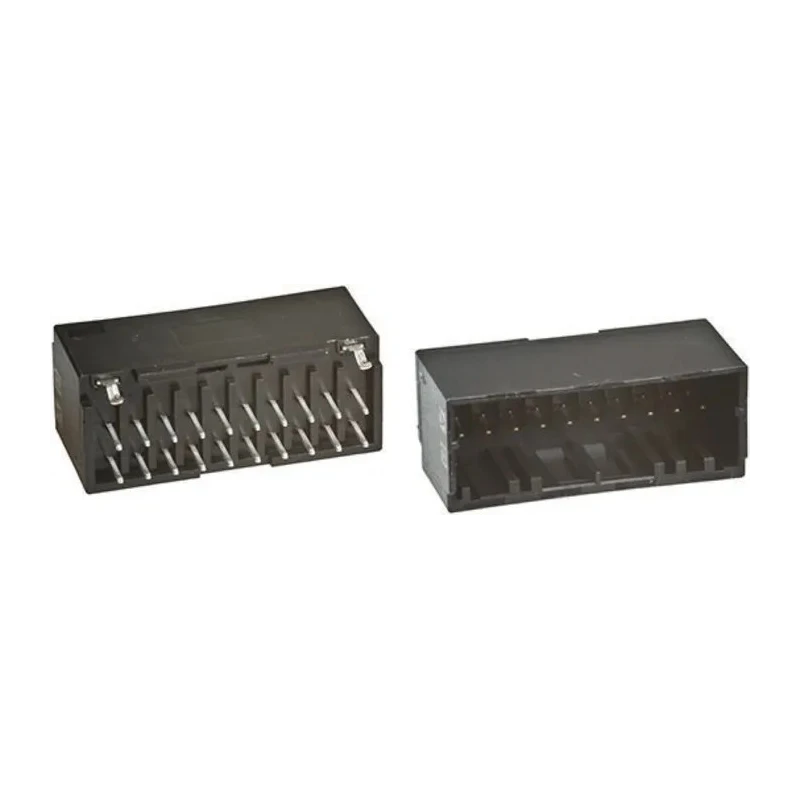

TE Connectivity Dynamic 1000 Series Straight Through Hole PCB Header 26 Contacts 2 mm Pitch 2 Row Shrouded 1-1827872-3
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 125V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | Dynamic 1000 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 26 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Comprises 26 male contacts designed for precise connectivity.
- Features a 2 mm pitch and 2 rows for compact layout.
- Constructed with thermoplastic housing and copper alloy contacts plated in gold for durability.
- Through-hole mount type with solder termination ensures secure PCB attachment.
- Operating temperature range from -55°C to 105°C suits varied environments.
- Shrouded design protects contacts from damage and contamination.
- Rated for 125 V operation suitable for low-voltage applications.
- Manufactured in China, built to TE Connectivity quality standards.
Product Description
TE Connectivity 1-1827872-3 Dynamic 1000 Series Straight Through Hole PCB Header features 26 male contacts arranged in 2 rows with a 2 mm pitch. This shrouded wire-to-board connector offers reliable electrical connections designed for various industrial and electronic applications.
The header housing is made from thermoplastic material, providing structural stability and insulation. Contacts are crafted from copper alloy and plated with gold to ensure excellent conductivity and corrosion resistance. The through-hole mounting style with solder termination guarantees a secure mechanical and electrical connection to printed circuit boards with thicknesses between 1.0 to 1.6 mm.
Operating reliably within a temperature range from -55°C to 105°C, this connector supports applications in industrial automation, communication equipment, and electronic manufacturing environments. The shrouded design adds contact protection during mating and helps prevent damage or contamination, enhancing connection reliability.
Rated for a maximum voltage of 125 V, this PCB header is well suited for low voltage signal and power connections. The Dynamic 1000 Series connectors are recognized for stable retention and robust performance, helping to prevent contact bending during assembly.
Comprises 26 male contacts designed for precise connectivity. Features a 2 mm pitch and 2 rows for compact layout. Constructed with thermoplastic housing and copper alloy contacts plated in gold for durability. Through-hole mount type with solder termination ensures secure PCB attachment.
Operating temperature range from -55°C to 105°C suits varied environments. Shrouded design protects contacts from damage and contamination. Rated for 125 V operation suitable for low-voltage applications. Manufactured in China, built to TE Connectivity quality standards.
Ideal for industrial, communications, and manufacturing sectors, this TE Connectivity PCB header supports efficient and reliable electrical interfacing in circuit assembly. Explore more in our Electronics & Electricals category for related PCB connectors and components at EnvMart.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header features a 2 mm pitch and comprises 26 male contacts arranged in 2 rows.
It is rated for a maximum voltage of 125 V, making it suitable for low-voltage applications.
The contacts are made from copper alloy and are plated with gold, while the housing is constructed from thermoplastic material.
This model utilizes a through-hole mounting type with solder termination, ensuring secure attachment to printed circuit boards.
It operates reliably within a temperature range from -55°C to 105°C, suitable for various environments.
The shrouded design protects the contacts from damage and contamination during mating, enhancing connection reliability.
The termination type for this PCB header is solder, which provides a secure mechanical and electrical connection.
This connector has a straight orientation, facilitating easy integration into circuit assemblies.
It is suitable for various industrial and electronic applications, including industrial automation and communication equipment.
The PCB header is designed for standard PCB thicknesses between 1.0 to 1.6 mm, but specific dimensions are not provided in the data.
This PCB header is manufactured in China, built to TE Connectivity quality standards.
The connector system type is wire-to-board, which is common for PCB headers.
