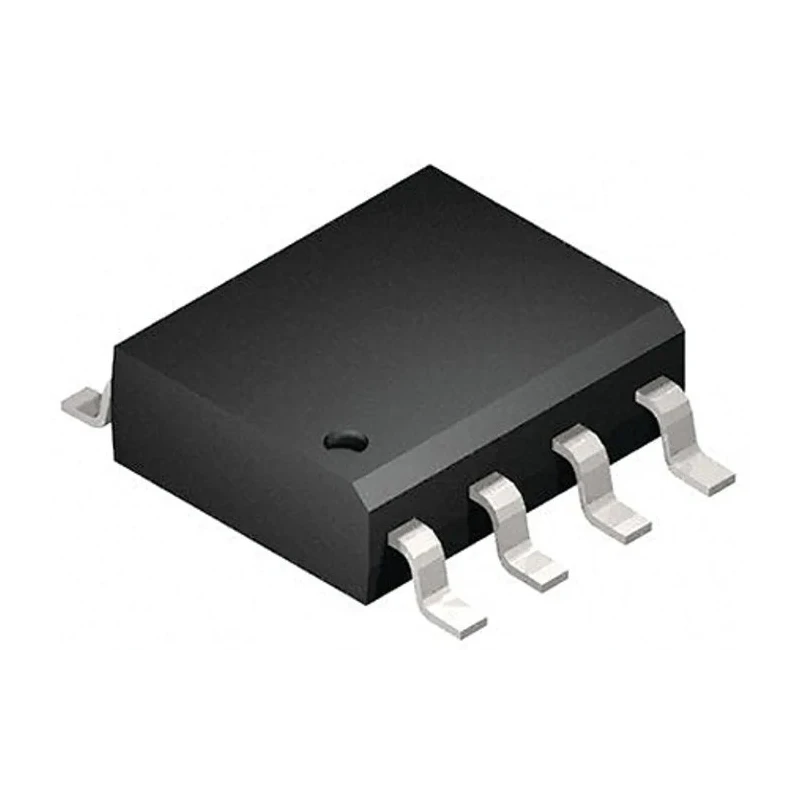

onsemi Voltage Controller 8-Pin 7.3 V to 9.4 V NCP4305DDR2G

The onsemi NCP4305DDR2G Voltage Controller is a high performance driver IC designed specifically to manage synchronous rectification MOSFETs in switch mode power supplies, ensuring efficient power conversion and reduced losses. Featuring an 8-pin surface mount package, it supports a supply voltage range from 7.3 V to 9.4 V, making it suitable for diverse power management applications across industrial, consumer electronics, and automotive sector power systems.

Thanks to its versatile design, the NCP4305DDR2G supports a broad range of topologies including Discontinuous Conduction Mode (DCM), Continuous Conduction Mode (CCM) flyback, quasi resonant flyback, forward converters, and half-bridge resonant LLC circuits. Its externally adjustable minimum ON and OFF time blanking periods effectively mitigate PCB layout ringing and parasitic noise, ensuring reliable and silent synchronous rectification.

This controller incorporates a precise true secondary zero current detection mechanism with an adjustable threshold, significantly enhancing system efficiency by accurately timing MOSFET turn-off events. The device also features self synchronization, allowing the IC to operate reliably without additional synchronization interfaces.

For light load conditions, the IC enters a low consumption standby mode, reducing power drain and improving energy efficiency - a critical feature in modern power supplies. Its maximum operating temperature of 125°C makes it ideal for industrial and commercial environments requiring robust performance.

With RoHS compliance, the NCP4305DDR2G adheres to environmental and safety standards, supporting sustainable manufacturing and use. The compact 5 mm length and 1.75 mm height contribute to an easy integration into constrained PCB layouts, meeting the demands of miniaturized electronic designs.

Controls synchronous rectification MOSFETs in switch mode power supplies with high performance. Compatible with multiple power topologies including DCM, CCM flyback, quasi resonant flyback, forward and half bridge resonant LLC.

Adjustable minimum ON and OFF time to reduce PCB ringing and noise. True secondary zero current detection with adjustable threshold. Self synchronization for noiseless operation. Light load detection with modulated gate drive and standby mode for reduced power consumption.

RoHS compliant ensuring environmentally safe manufacturing. Maximum operating temperature of 125°C for demanding environments. Compact 5 mm x 1.75 mm surface mount package for flexible PCB design.

This voltage controller is well-suited for power management in industrial, consumer electronics, and automotive applications where precise and efficient synchronous rectification is required. Explore more Power Management ICs in the Electronics & Electricals category at EnvMart for comprehensive solutions.
