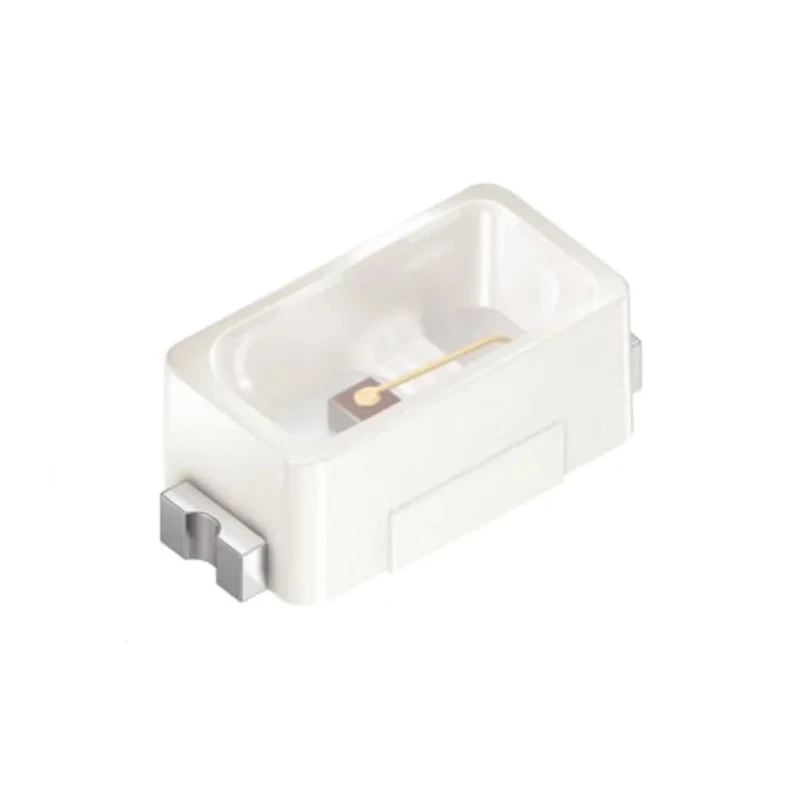

ams OSRAM 2.65 V Yellow LED SMT Surface TOPLED KY DELPS1.22-UGVI-36-J3S5

Free Delivery in India | Lowest Global Shipping Charges

ams OSRAM 2.65 V Yellow LED SMT Surface TOPLED KY DELPS1.22-UGVI-36-J3S5

Name: ams OSRAM 2.65 V Yellow LED SMT Surface TOPLED KY DELPS1.22-UGVI-36-J3S5
Brand: ams OSRAM
SKU: 216905



Category LEDs - Light Emitting Diodes Brand ams OSRAM Condition New

Specifications

Country of Origin	Malaysia
Brand	ams OSRAM
Package	white SMT package, colourless clear resin
Model	KY DELPS1.22-UGVI-36-J3S5
Technology	InGaAlP Thinfilm
Packaging	8 mm Tape with 5000 pcs on Dia 180 mm Reel
Mount Type	Surface
Series	TOPLED
Maximum forward current	30mA
Viewing angle	120 °
Package Type	SMT
Standards/Approvals	MSL Level 3 acc. to JEDEC J-STD-020E, IEC 62471:2008
LED Colour	Yellow
Dominant Wavelength	595nm
Forward Voltage	2.65V
Number of Pins	2
LED Luminosity	1120 mcd
Lens Dimensions	1.4 x 0.8 x 0.6 mm
Lens Shape	Rectangular
LED Luminous Flux	1600 to 3400 mlm
Viewing angle at 50 % IV	120°
Standards/ApprovalsMSL Level 3 acc. to JEDEC J-STD-020E, IEC 62471	2008

Key Features

The LED features a clear, rectangular lens with dimensions 1.4 x 0.8 x 0.6 mm.
It offers a brightness of 1120 mcd and a luminous flux ranging from 1600 to 3400 mlm.
The device has a wide viewing angle of 120 degrees for effective light dispersion.
Packaged in an 8 mm tape with 5000 pieces on a Dia 180 mm reel for automated assembly.
The product uses InGaAlP thin-film technology ensuring reliable performance.
Designed for surface mounting with 2 pins, ideal for compact electronic assemblies.
Manufactured in Malaysia, this LED suits automotive interior lighting and electronic signal indicators.

Product Description

ams OSRAM KY DELPS1.22-UGVI-36-J3S5 is a high-quality SMT Surface Mount Yellow LED with a typical forward voltage of 2.65 V and maximum forward current of 30 mA. This LED belongs to the TOPLED series and is widely used in various industrial and automotive applications that require compact, reliable low-power lighting solutions.

The LED features a clear rectangular lens measuring 1.4 x 0.8 x 0.6 mm, emitting yellow light with a dominant wavelength of 595 nm. It delivers a luminous intensity of 1120 mcd and luminous flux between 1600 and 3400 mlm, ensuring bright and visible indications. The device’s wide viewing angle of 120° enhances illumination coverage, making it suitable for dashboard backlighting, pushbuttons, switches, electronic equipment, and signal luminaries.

Constructed with InGaAlP thin-film technology, this LED offers excellent performance and durability. It is packaged in a white SMT package with colourless clear resin and supplied in reels of 5000 pieces on 8 mm tape for efficient automated PCB assembly.

The product is compliant with MSL Level 3 standards according to JEDEC J-STD-020E and IEC 62471:2008 photobiological safety requirements. It is manufactured in Malaysia to exacting quality standards.

This LED is an ideal choice for industrial, automotive, and electronic equipment applications requiring small package design with high reliability and efficient yellow illumination.

The LED has a clear rectangular lens with precise dimensions of 1.4 x 0.8 x 0.6 mm. Maximum forward current rating is 30 mA ensuring safe operation. Viewing angle of 120° provides broad light distribution. High brightness with 1120 mcd luminous intensity.

Compliance with MSL Level 3 and IEC 62471:2008 standards ensures reliability and safety. Packaging in 8 mm tape with 5000 pieces per reel supports automated manufacturing. Manufactured in Malaysia under stringent quality controls.
