MEAN WELL Single Output 150W Switching Power Supply 48V DC, Programmable Voltage SPV-150-48

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL Single Output 150W Switching Power Supply 48V DC, Programmable Voltage SPV-150-48

Name: MEAN WELL Single Output 150W Switching Power Supply 48V DC, Programmable Voltage SPV-150-48
Brand: MEAN WELL
SKU: 216649



Category Switching Power Supplies Brand MEAN WELL Condition New

Specifications

Country of Origin	Taiwan
Brand	MEAN WELL
Power	150W
Efficiency	83%
Length	215mm
Model	SPV-150-48
Depth	50mm
Gross Weight	1.1kg
Width	115mm
Mount Type	Chassis
Series	SPV-150
Output Current	3.125A
Maximum Operating Temperature	65°C
Minimum Operating Temperature	-20°C
Number of outputs	1
Maximum Input Voltage	370, 264V dc
Protections	Short circuit, Overload, Over voltage, Over temperature
Maximum Output Voltage	48V dc
SMPS Output Current	3.13A
Minimum Input Voltage	88V ac

Key Features

The output voltage can be trimmed externally from 20% to 110% of the rated value for flexible applications.
It features universal AC input voltage range of 88V AC minimum up to 370V DC maximum.
Built-in active PFC function ensures power factor greater than 0.95 for efficiency improvement.
Includes protections for short circuit, overload, over voltage, and over temperature for device reliability.
Designed for chassis mounting with compact dimensions for easy integration.
High frequency design achieves up to 83% efficiency during operation.
Operates efficiently within temperature range of -20°C to 65°C with natural convection cooling.
Ideal for LCD panel burn-in systems, IC testing instruments, factory automation, and general mechanical and electrical industrial use.

Product Description

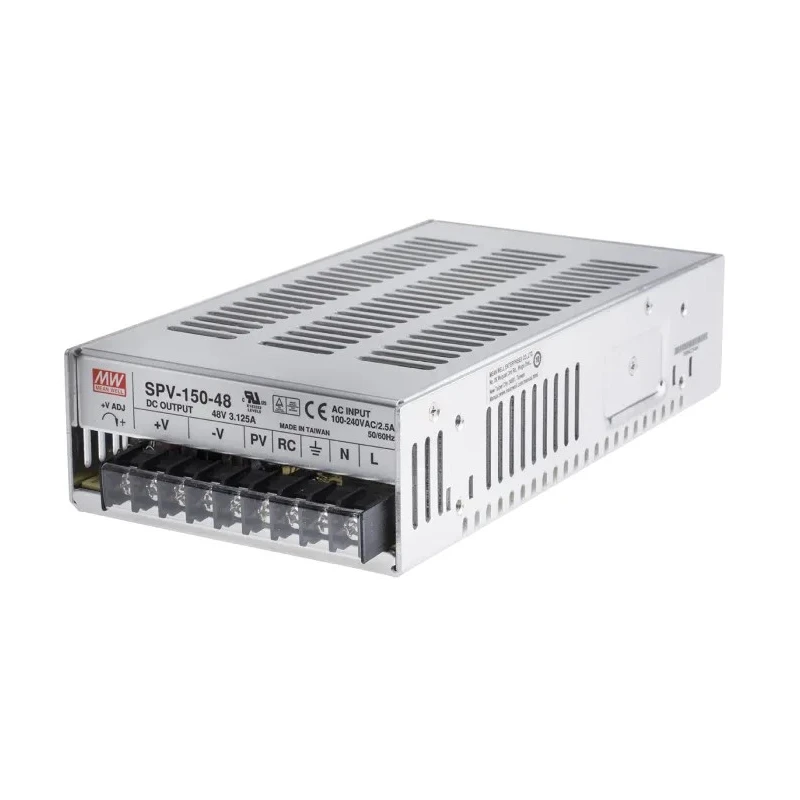

MEAN WELL SPV-150-48 is a high-quality single output switching power supply providing 150 watts of power with a nominal output voltage of 48V DC. The unit features a programmable output voltage function adjustable between 20% and 110% of the rated voltage via an external 1 to 5.5 V DC control signal. This adds operational flexibility, making it suitable for equipment requiring varying output voltages.

The device supports a wide AC input voltage range starting from 88V AC minimum up to 264V AC and incorporates an active Power Factor Correction (PFC) circuit with power factor above 0.95. Its high frequency design ensures smooth operation with up to 83% efficiency, cools through convection without fans, and withstands operating temperatures from -20°C to 65°C.

Protected against short circuit, overload, over voltage, and over temperature conditions, this power supply is built for reliability in demanding industrial environments. It features a chassis mounting type with compact dimensions of 215mm length, 115mm width, and 50mm depth, weighing approximately 1.1kg.

The SPV-150-48 model complies with rigorous international safety standards such as UL 62368-1, EN 62368-1, CSA C22.2, CCC, and others, ensuring safe deployment in commercial and industrial applications. Typical use cases include LCD panel burn-in systems, IC testing equipment, factory automation lines, and mechanical or electrical industries requiring adaptable power sources.

The output voltage is programmable from 20% to 110% via external control voltage. Universal AC input voltage range from 88V AC to 264V AC and DC input up to 370V. Built-in active PFC with power factor greater than 0.95. Multiple protection features: short circuit, overload, over voltage, and over temperature.

Efficient free air convection cooling system. Wide operating temperature range from -20°C to 65°C. Chassis mount type with compact form factor and 1.1 kg weight. Compliance with global safety standards for industrial applications.
