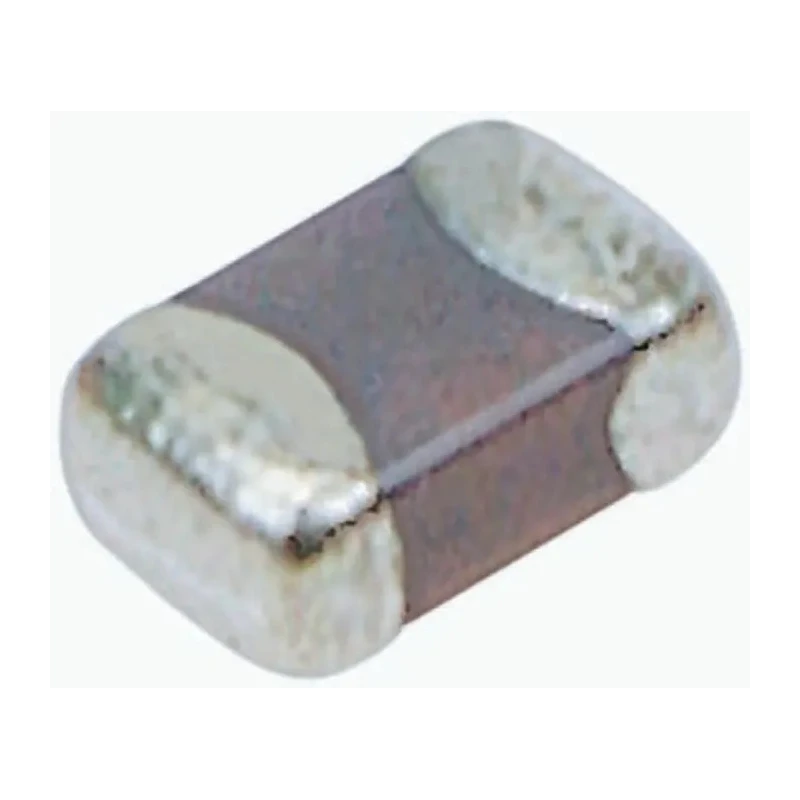

KYOCERA AVX 33 nF Multilayer Ceramic Capacitor 50V dc ±10 % Surface Mount 0805 08055C333KAT2A

KYOCERA AVX 08055C333KAT2A is a 33 nF Multilayer Ceramic Capacitor designed for surface mount applications with a 50V dc voltage rating and ±10 % tolerance. This capacitor uses the X7R dielectric, known for temperature stability in the EIA Class II range, making it suitable for a variety of industrial and commercial electronic circuit designs.

The 0805 case size (2.01 mm length, 1.25 mm width, and 0.94 mm height) allows compact PCB layouts, making it ideal for high-density electronics manufacturing where space saving is critical. The operating temperature range from -55°C to +125°C ensures stable performance under harsh thermal conditions, covering automotive, industrial, and consumer electronics needs.

Standard series capacitors like this one provide reliable capacitance variation within ±10 %, balancing cost-efficiency and performance for applications such as power converters, resonators in switching power supplies (SMPS), and high-frequency filtering. X7R material offers low leakage and low equivalent series resistance (ESR) at high frequencies, reducing noise and enhancing circuit reliability.

Terminations are surface mount with nickel barrier and tin plating ensuring excellent solderability and mechanical robustness during assembly. The product comes packaged on a reel to facilitate automated manufacturing processes, improving production efficiency and yield in mass production environments.

Applications for this Multilayer Ceramic Capacitor include industrial electronics, power supply circuits, communication devices, and general electronic componentry requiring stable capacitance over a wide range of temperatures and frequencies.

This capacitor features a 0805 package case suitable for surface mount applications. Dielectric type is X7R providing temperature stability across a wide range. It meets an operating temperature range of -55°C to 125°C for reliable performance.

Termination and mount type are surface mount, simplifying PCB assembly. The capacitor's dimensions are 2.01 mm length, 1.25 mm width, and 0.94 mm height for compact PCB layouts. Packaged on a reel for efficient automated placement during manufacturing.

Designed for standard series with nickel barrier terminations plating with tin for solderability.
