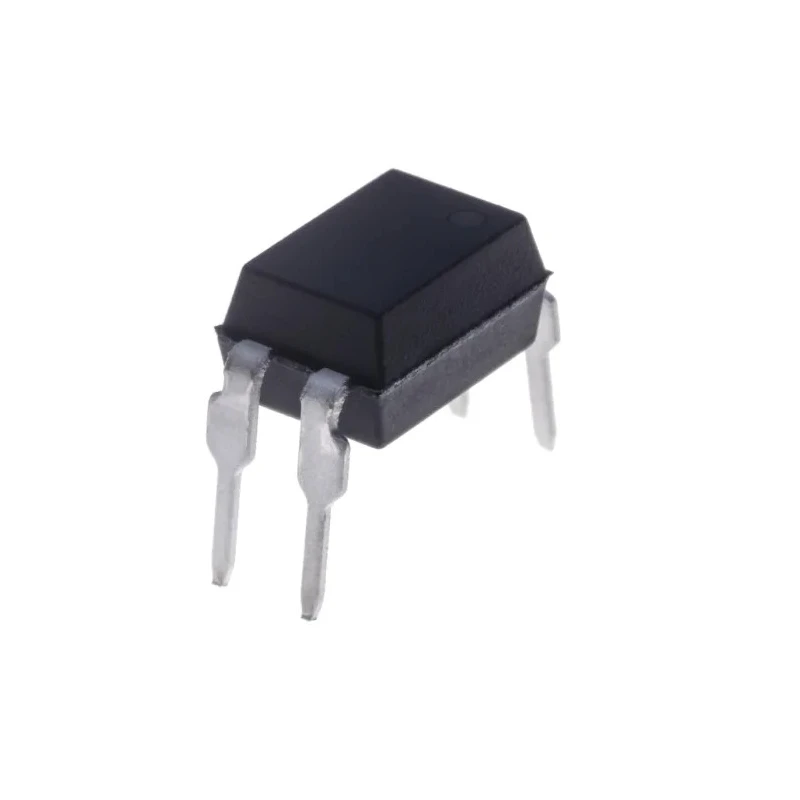

Isocom AC Input Optocoupler Through Hole, 4-Pin DIP, 1 Channel, 1.3V Max Forward Voltage, UL Standard TLP620

Isocom TLP620 AC Input Optocoupler is a through-hole 4-pin DIP device designed to provide electrical isolation between input and output circuits with a single channel configuration.

The device uses two infrared LEDs connected in inverse parallel and a NPN silicon phototransistor as output for signal transmission. With a maximum forward voltage of 1.3V, it supports AC input current types making it suitable for AC signal isolation applications.

Typical rise and fall times of 4μs and 3μs respectively ensure quick response in signal switching, making it ideal for industrial systems controllers, telephone sets, computer terminals, and signal transmission between systems with different potentials and impedances.

This optocoupler has a high isolation voltage of 5300 Vrms (7.5kV peak), ensuring reliable protection against high voltages. The device operates within a wide temperature range from -30°C to 100°C and meets UL safety approvals ensuring product quality and safety.

The compact DIP package is suitable for PCB through-hole mounting and simplifies integration in electronic designs where space and consistency are important. The device features a maximum forward voltage of 1.3 volts. Operates at AC input current type.

Provides high isolation voltage of 5300 Vrms for safe operation. Typical rise time of 4 microseconds and fall time of 3 microseconds. Operates in temperatures ranging from -30°C to 100°C. Complies with UL approvals and RoHS standards.

Available in 4-pin Dual In-Line Package format for easy through-hole mounting. Manufactured in Thailand, part of the TLP620 series.

This Optocoupler is applicable across industrial, telecommunications, and computer interface systems, providing reliable isolation and signal integrity. It is suitable for integrating into industrial control, communication equipment, signal isolation circuits, and other electronic applications requiring electrical separation.
