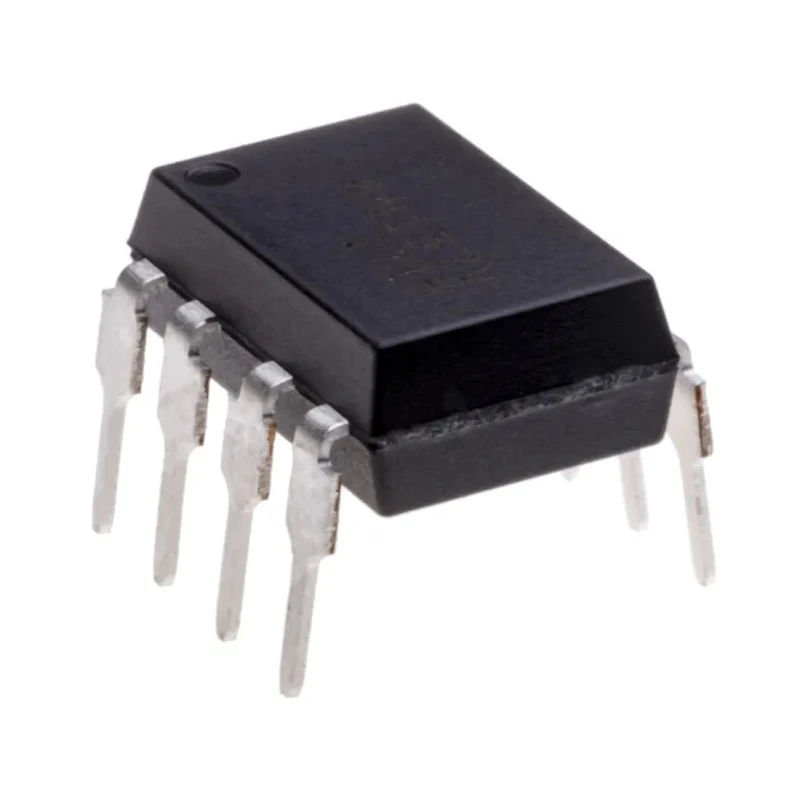

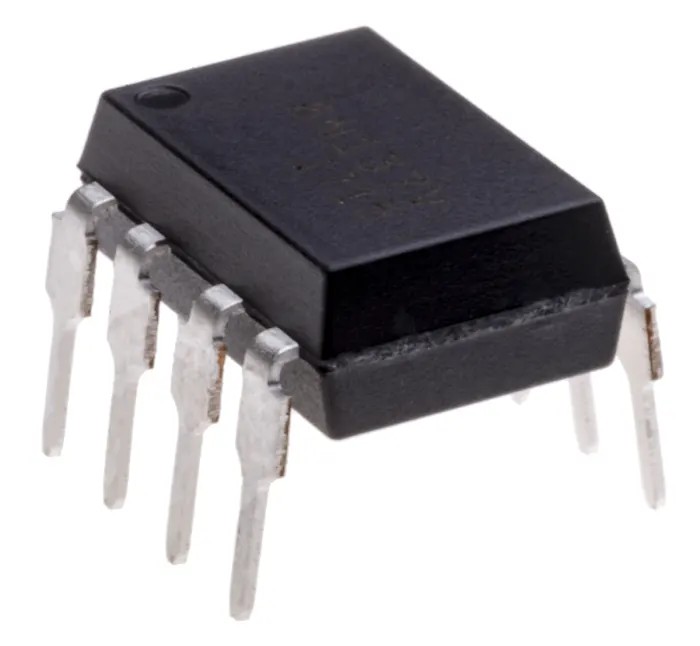

Isocom AC Input 2-Channel Optocoupler Surface Mount 8-Pin DIP MOCD207

Isocom MOCD207 is an AC input 2-channel optocoupler designed for surface mounting, housed in an 8-pin DIP package. It consists of two infrared light emitting diodes coupled with two NPN silicon phototransistors, arranged in a space-efficient dual inline plastic package, ensuring high optical isolation.

The device supports a maximum isolation voltage of 3750 Vrms, making it suitable for circuits requiring robust electrical isolation between input and output. Its maximum forward voltage is 1.5 V accommodating AC input current, making it ideal for interfacing different potential circuits and switching applications.

Featuring a typical rise time of 1.6 microseconds and a fall time of 2.2 microseconds, MOCD207 optocoupler offers fast and reliable switching performance. The current transfer ratio ranges between 100% minimum and 200% maximum, ensuring effective signal coupling and transmission.

Operating across a temperature range from -55°C to 110°C, this component performs reliably in challenging industrial and electronic environments. It meets UL standards for safety and robustness.

Two infrared LEDs and two NPN silicon phototransistors enhance optical isolation. Compact 8-pin DIP dual inline package suited for surface mount applications. Maximum input current supported is 60 mA with AC input type. Typical rise and fall times enable fast switching capabilities.

CTR values from 100% to 200% provide precise signal coupling. High isolation voltage of 3750 Vrms improves circuit safety. Compliant with UL standards ensuring quality and safety. Ideal for feedback control, interfacing different potentials, monitoring, and switching circuits.

MOCD207 is commonly used in industrial electronics, instrumentation, and control systems enabling safe and efficient signal isolation. Explore more in the Optocouplers category at EnvMart for additional electronic isolation components.
