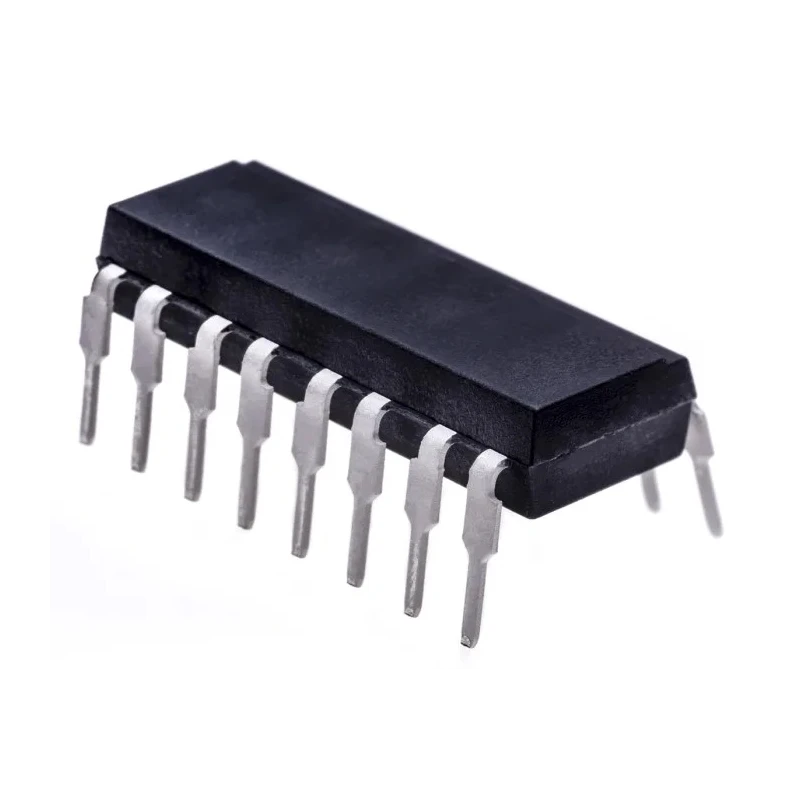

Isocom AC Input 4-Channel Optocoupler Through Hole 16-Pin DIP TIL196

Isocom TIL196 AC Input 4-Channel Optocoupler is designed for high isolation and reliable signal transmission in industrial, laboratory, and electronic control systems.

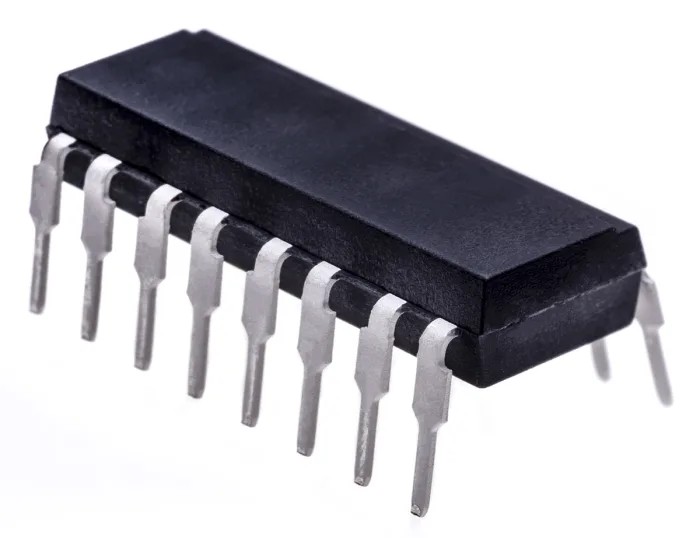

This optocoupler integrates two infrared LEDs connected in inverse parallel with NPN silicon phototransistors in a compact 16-pin Dual Inline Package (DIP) suitable for through hole mounting. Its AC input supports polarity insensitive operation, making it versatile for various control circuits.

The device features a high isolation voltage of 5300 Vrms (7.5 kV peak), providing excellent protection between input and output, ideal for use in telephone sets, industrial system controllers, and computer terminals.

Typical switching performance includes a rise time of 4 μs and fall time of 3 μs, supporting efficient and fast opto-isolation. The product operates reliably within a temperature range of 30°C to 100°C, making it suitable for demanding environments.

The optocoupler conforms to several international standards such as CECC 00802, UL, VDE 0884, SEMKO, and EN60950, signifying quality and safety compliance. It is supplied in a tape and reel packaging format, supporting automated SMT processes for large-scale manufacturing.

Applications include signal isolation in telephone and communication systems, industrial automation, and controlled voltage interfacing between circuits operating at different potentials.

The device features 4 AC input channels for versatile connectivity. Mounted through hole with a 16-pin DIP package for easy PCB integration. Offers high isolation voltage of 5300 Vrms to prevent electrical interference. AC input current type supports polarity insensitive operation.

Typical rise and fall times are 4 μs and 3 μs respectively, ensuring fast switching. Operating temperature range from 30°C to 100°C suitable for diverse environments. Complies with multiple international standards and approvals including CECC, UL, and VDE.

Packaged in tape & reel format to facilitate automated assembly. Manufactured in Thailand ensuring quality compliance. Explore more Optocouplers and related electronics components from EnvMart's extensive catalog for reliable industrial and electronic solutions.
