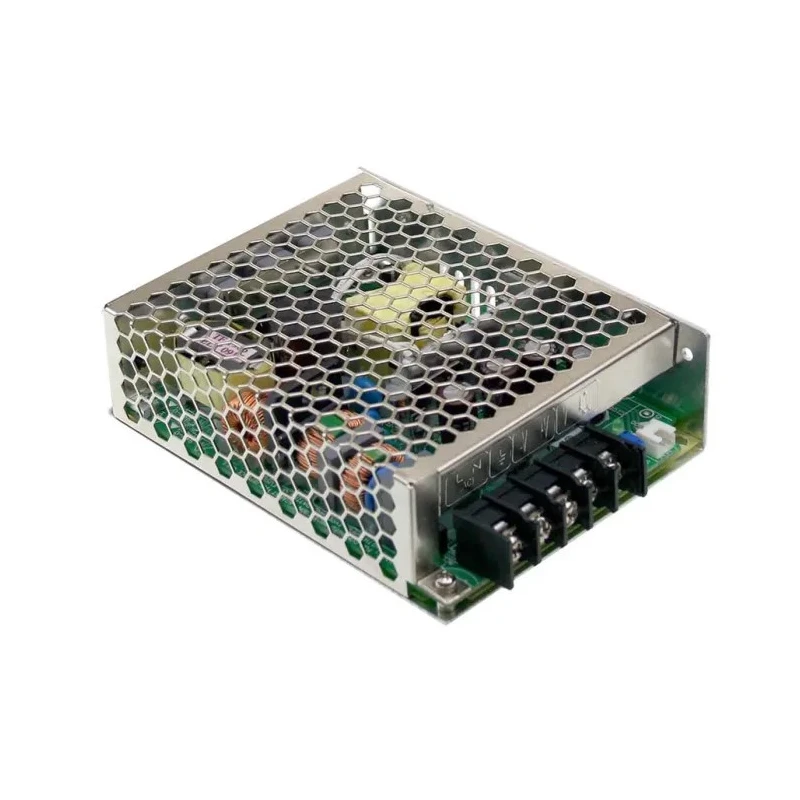

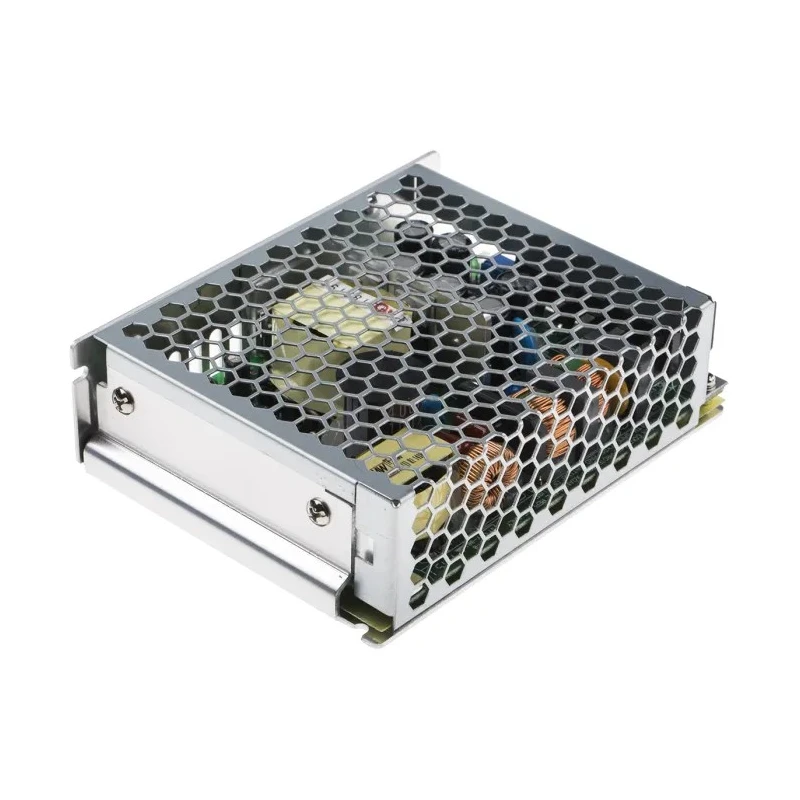

MEAN WELL Switching Power Supply 7.5V DC 75W 370V DC 264V AC HRP-75-7.5

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL Switching Power Supply 7.5V DC 75W 370V DC 264V AC HRP-75-7.5

Name: MEAN WELL Switching Power Supply 7.5V DC 75W 370V DC 264V AC HRP-75-7.5
Brand: MEAN WELL
SKU: 216563



Category Switching Power Supplies Brand MEAN WELL Condition New

Specifications

Country of Origin	China
Brand	MEAN WELL
Power	75W
Efficiency	84%
Length	129mm
Model	HRP-75-7.5
Depth	38mm
Gross Weight	470g
Width	98mm
Mount Type	Chassis
Series	HRP-75
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-40°C
Number of outputs	1
Maximum Input Voltage	370, 264V dc
Standards/Approvals	ASNZS 668.1, UL 6681, TUV BS ENEN 6681, EAC TP TC 004
Maximum Output Voltage	7.5V dc
SMPS Output Current	10A
Minimum Input Voltage	85V ac

Key Features

Features a chassis mount type for secure installation.
Supports input voltage range from 85V AC to 370V DC.
Operates efficiently at 84% efficiency rating.
Designed to operate between -40°C and 70°C temperature range.
Includes Power Factor Correction (PFC) for energy efficiency.
Delivers 10A single output current suitable for demanding loads.
Complies with multiple safety standards including UL and TUV certifications.
Constructed for long life and high reliability in diverse environments.

Product Description

MEAN WELL HRP-75-7.5 is a high-quality switching power supply delivering 7.5V DC at 75W power output, suitable for a wide range of electronic components, industrial machines, and laboratory equipment.

This power supply is built with a chassis mounting type ensuring stable and safe installation in control panels or electronic housings. The device operates on a wide input voltage range of 85V AC to a maximum of 370V DC, making it adaptable to different power sources.

With an efficiency rate of 84%, it ensures energy-saving operation while maintaining stable output current of 10A for single output applications. It is engineered to function reliably in extreme environmental conditions from -40°C up to 70°C, suitable for both industrial and commercial usages.

The compact form factor includes dimensions of 129mm in length, 98mm in width, and 38mm in depth, making it space efficient for various installations. Certification compliance with safety standards including ASNZS 668.1, UL 6681, TUV, and EAC TP TC 004 guarantee assured safety and quality.

The HRP-75 series features Power Factor Correction (PFC) to reduce electrical loss and improve performance. It is constructed for long life expectancy and minimal no-load power consumption, suitable for continuous use in power supply & distribution systems, electronic manufacturing, and automated installations.

Chassis mount type for easy installation and integration. Wide input voltage of 85V AC to 370V DC supports diverse applications. High efficiency with Power Factor Correction for energy savings. Robust operating temperature range from -40°C to 70°C ensures stable performance.

Compact size fits easily in control cabinets and electronic systems. Certified to international safety standards guaranteeing reliability. Designed for high reliability and long service life in industrial environments. Single output of 7.5V DC at 10A supports numerous electronic devices.

This MEAN WELL HRP-75-7.5 switching power supply is ideal for industrial, laboratory, manufacturing, and electronic systems requiring stable DC power with high efficiency and safety.

Explore the full range of power supplies and switching power supply options available on EnvMart for dependable industrial power delivery solutions.
