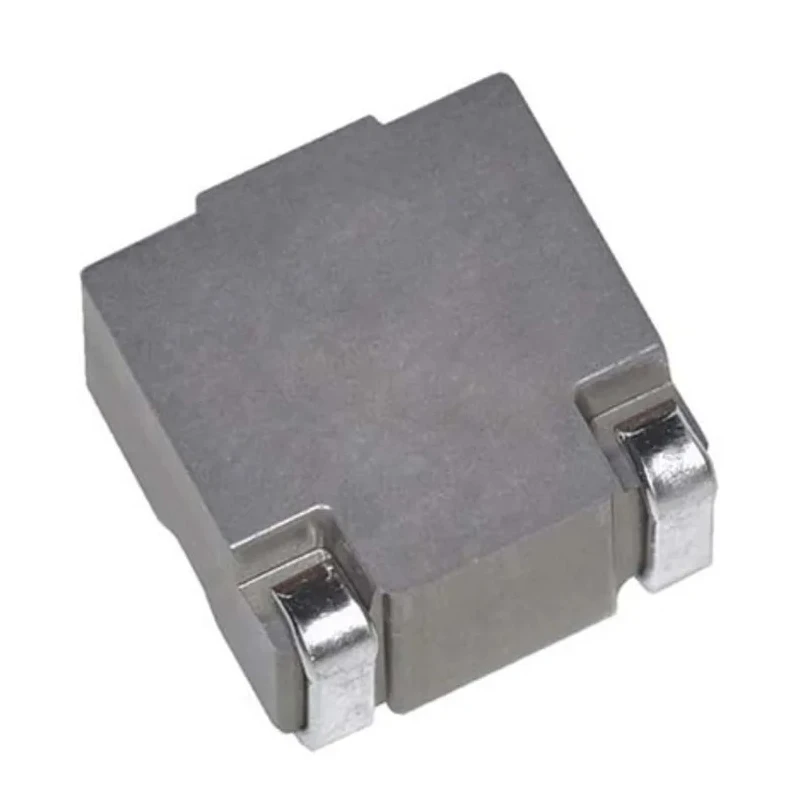

Panasonic PCC-M Surface Mount Inductor with Metal Core 1 μH ±20% 53 A Idc PCC-M1280MF
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 13.2mm |
| Length | 12.6mm |
| Model | M1280MF |
| Depth | 8.05mm |
| Packaging | 500 pieces per Box (2 Reel) |
| Series | PCC-M1280MF |
| Maximum Operating Temperature | 160°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Metal |
| Temp. Stability | Excellent inductance stability over broad temp. range |
| Inductance | 1μH |
| Standards/Approvals | RoHS |
| Package/Case | PCC-M |
| Maximum DC Current | 53A |
| Maximum DC Resistance | 4.9mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Automotive Standard | AEC-Q200 |
| High heat resistance | Operation up to 160 °C including self-heating |
| High vibration resistance | 30G |
| High-reliability | High vibration resistance as result of newly |
| High bias current | Excellent inductance stability using ferrous alloy |
| Low audible (buzz) noise | New metal composite core technology |
| High effi ciency | Low RDC of winding and low eddy-current loss of the core |
Key Features
- Constructed with a metal core for enhanced magnetic performance.
- Designed for operation up to 160°C including self-heating.
- Complies with AEC-Q200 automotive standards ensuring reliability.
- Features solder termination style suitable for surface mounting.
- Package includes 500 pieces per box supplied on 2 reels.
- Low maximum DC resistance of 4.9 mΩ reduces power losses.
- Excellent resistance to vibration up to 30G for automotive applications.
- Offers superior inductance stability with ferrous alloy magnetic materials.
Product Description
Panasonic PCC-M1280MF is a high-performance surface mount inductor with a metal core, providing an inductance of 1 μH and a tolerance of ±20%. It supports a maximum DC current of 53 A, making it suitable for applications requiring high current capacity.
This inductor is designed to operate reliably up to 160°C including self-heating effects. It features low DC resistance of 4.9 mΩ and a solder termination style optimized for surface mounting on printed circuit boards.
The device complies with the stringent AEC-Q200 automotive standard, ensuring excellent vibration resistance up to 30G and high reliability in automotive and other demanding industrial environments. The metal composite core technology contributes to low audible noise (buzz) and enhanced efficiency by minimizing eddy-current losses.
With dimensions of 12.6 mm in length, 13.2 mm in height, and 8.05 mm in depth, the compact form factor supports space-constrained applications. The packaging includes 500 pieces per box on 2 reels, enabling efficient assembly-line usage.
Key features include high heat resistance, excellent inductance stability over a broad temperature range, and robust performance under high magnetic bias currents due to ferrous alloy core materials.
Metal core construction for improved magnetic characteristics. High current rating of 53 A supports power demanding circuits. Operating temperature range from -40°C up to 160°C ensures versatility. Compliant with RoHS for environmental safety.
Low DC resistance ensures minimal power loss and heat generation. High vibration resistance suitable for automotive applications. Ideal for industrial, automotive power circuits, and electronic component assemblies requiring reliable surface mount inductors with stable inductance performance and durability.
Explore more in the Surface Mount Inductors category at EnvMart for a variety of electronic passive components from trusted brands like Panasonic.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 1 μH with a tolerance of ±20%.
It supports a maximum DC current of 53 A, making it suitable for high current applications.
This inductor operates reliably within a temperature range of -40°C to 160°C, including self-heating effects.
The maximum DC resistance is 4.9 mΩ, which helps reduce power losses.
It complies with AEC-Q200 automotive standards, ensuring reliability in automotive applications.
The height is 13.2 mm and the depth is 8.05 mm, supporting compact installations.
It features a solder termination style optimized for surface mounting on printed circuit boards.
It is packaged with 500 pieces per box on 2 reels, facilitating efficient assembly-line usage.
The core material is metal, which enhances magnetic performance and reduces eddy-current losses.
This model offers excellent resistance to vibration up to 30G, suitable for automotive applications.
Key features include high heat resistance, excellent inductance stability, low audible noise, and high efficiency due to low RDC and eddy-current losses.
It is ideal for industrial and automotive power circuits, as well as electronic component assemblies requiring reliable surface mount inductors.
