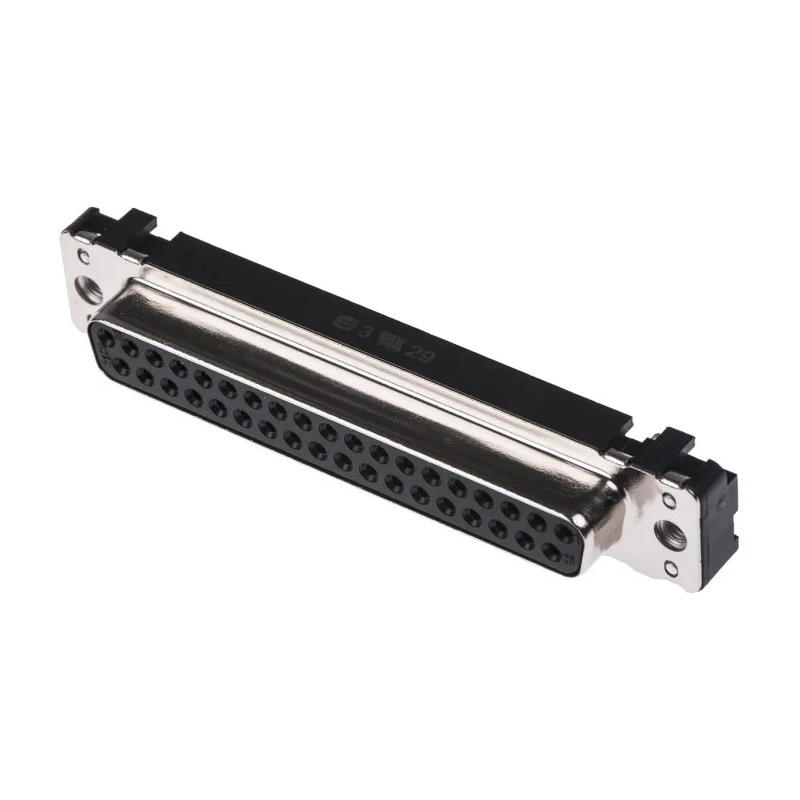

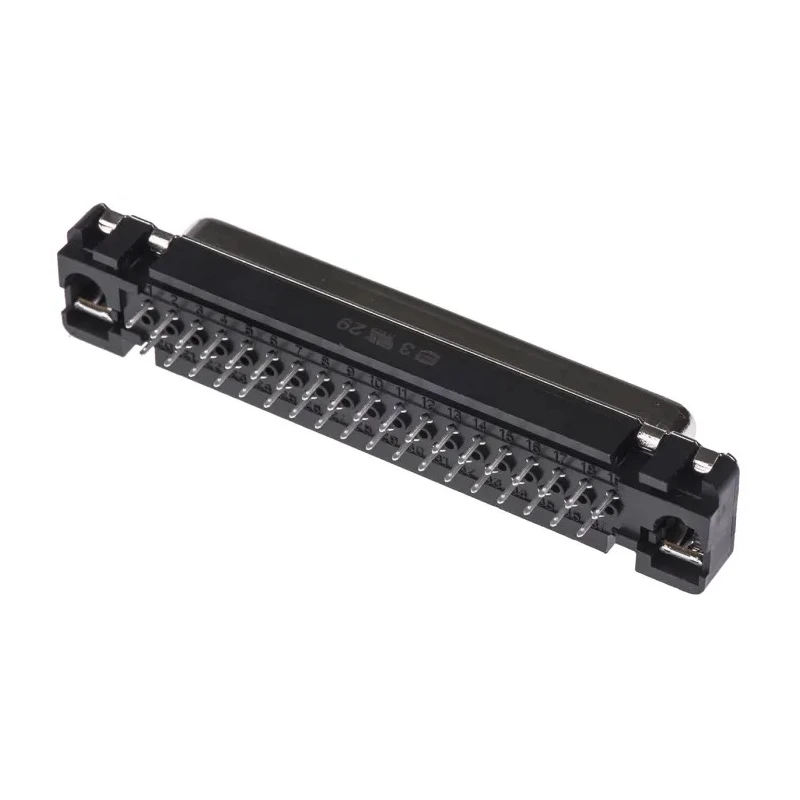

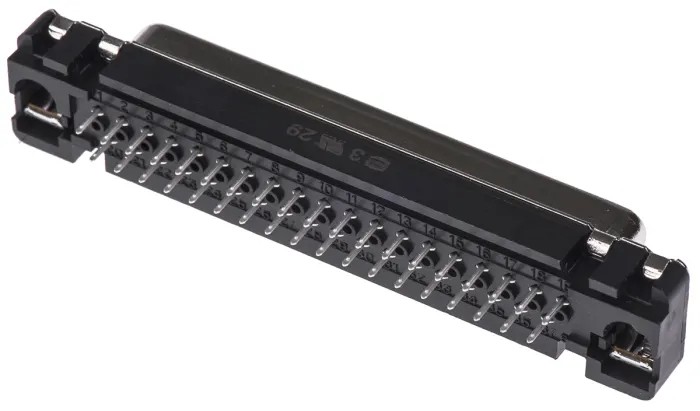

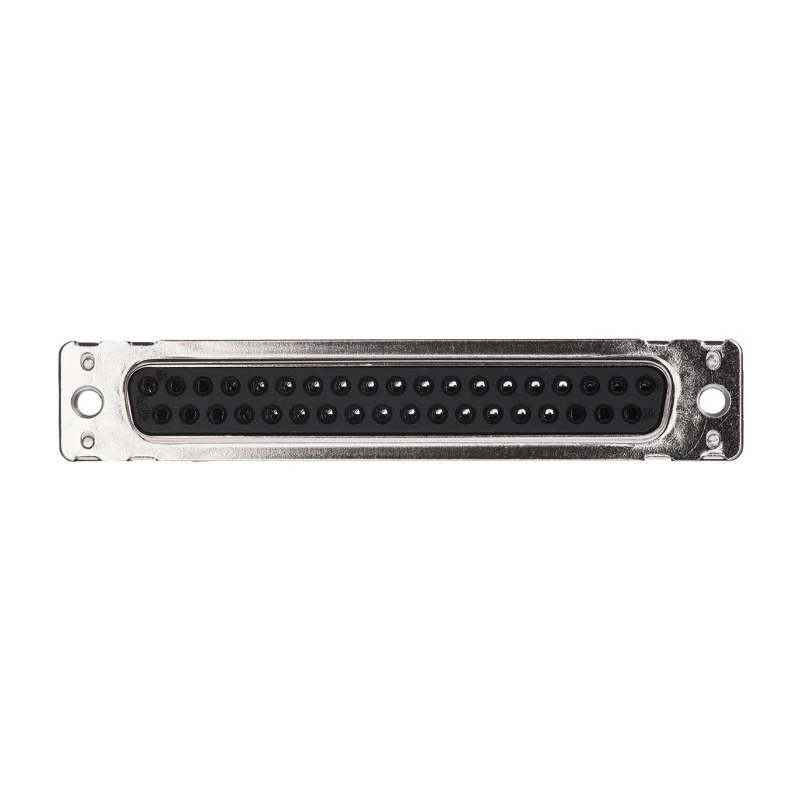

HARTING D-Sub 37 Way Straight 2.76 mm Pitch Through Hole Connector with M3 Threaded Insert Female 09664117501

Free Delivery in India | Lowest Global Shipping Charges

HARTING D-Sub 37 Way Straight 2.76 mm Pitch Through Hole Connector with M3 Threaded Insert Female 09664117501

Name: HARTING D-Sub 37 Way Straight 2.76 mm Pitch Through Hole Connector with M3 Threaded Insert Female 09664117501
Brand: HARTING
SKU: 216436
Price: 12.5 USD
Availability: InStock



Category D-Sub Connector Brand HARTING Condition New

Specifications

Country of Origin	Switzerland
Voltage	1kV
Brand	HARTING
Orientation	Straight
Current	6.5A
Mount Type	Through Hole
Housing Material	Metal
Contact Material	Copper Alloy
Series	D-Sub
Mounting Hardware	M3 Threaded Insert
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Pitch	2.76mm
Number of Contacts	37
Contact Gender	Female
Connector Gender	Female
Connector Type D	Standard
D-Sub Shell Size	D

Key Features

Features 37 contacts with a 2.76 mm pitch suitable for high-density wiring applications.
Constructed with durable metal housing for robust protection in industrial environments.
Rated for 1kV voltage and 6.5A current carrying capacity to support demanding electrical loads.
Includes M3 threaded insert mounting hardware for secure female connector installation.
Operates reliably within temperature range from -55°C to 125°C, suitable for harsh conditions.
Contact material is high-quality copper alloy ensuring excellent conductivity and corrosion resistance.
Meets MIL-C-24308, DIN 41652, and CECC 75301-802 standards for industry compliance.
Manufactured in Switzerland ensuring premium Swiss quality and precision.

Product Description

HARTING 09664117501 D-Sub 37 Way Straight Connector is a high-performance through hole PCB connector designed to provide reliable connections in industrial and electronic applications. It features a metal housing and copper alloy contacts to ensure mechanical durability and excellent electrical conductivity.

The connector supports a pin pitch of 2.76 mm, accommodating 37 contacts for compact yet efficient wiring solutions. It is engineered for a current rating of 6.5A and voltage withstand up to 1kV, making it ideal for power and signal transmission in harsh environments.

Its mounting mechanism uses an M3 threaded insert for stable and secure attachment to the PCB. With solder termination type and female connector gender, it facilitates dependable circuit board integration.

Operating temperature ranges from -55°C to 125°C ensure performance reliability under extreme thermal conditions. This connector meets the MIL-C-24308, DIN 41652, and CECC 75301-802 standards confirming its suitability for military and industrial applications.

Manufactured in Switzerland, the connector ensures premium Swiss build quality and precision engineering. It is widely used in industrial controls, automation systems, telecommunications, and electronic manufacturing sectors.

Features 37 contacts with a 2.76 mm pitch suitable for high-density wiring applications. Constructed with durable metal housing for robust protection in industrial environments. Rated for 1kV voltage and 6.5A current carrying capacity to support demanding electrical loads.

Includes M3 threaded insert mounting hardware for secure female connector installation. Operates reliably within temperature range from -55°C to 125°C, suitable for harsh conditions. Contact material is high-quality copper alloy ensuring excellent conductivity and corrosion resistance.

Meets MIL-C-24308, DIN 41652, and CECC 75301-802 standards for industry compliance. Manufactured in Switzerland ensuring premium Swiss quality and precision. Explore other high-quality electronic connectors and components in the Connectors category at EnvMart for comprehensive industrial and laboratory applications.
